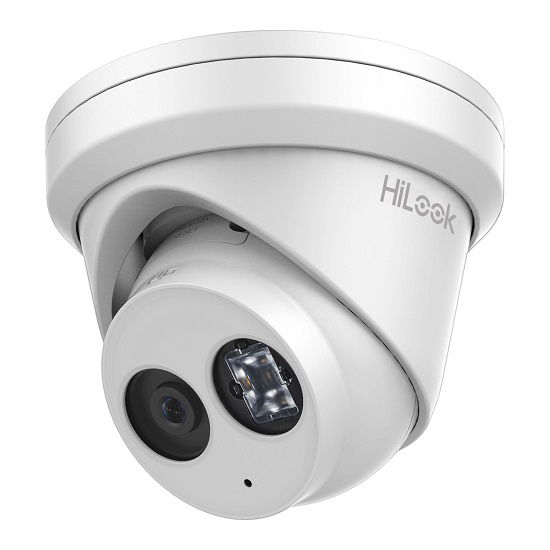

HiLook 6MP IP POE Turret Camera with 4mm Fixed Lens - White

HiLook 6MP IP POE Turret Camera with 4mm Fixed Lens. High-quality imaging with 6MP resolution. Efficient H.265+ compression technology to save bandwidth and storage

• Clear imaging against strong backlight due to 120dB true WDR technology
• Water and dust resistant (IP67)
• Focusing on human and vehicle classification based on deep learning
• -U: Built-in microphone for real-time audio security
• Easy installation with Power over Ethernet (PoE) technology

Camera:

• Image Sensor: 1/2.8" Progressive Scan CMOS
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON) ; B/W: 0 Lux with IR
• Shutter Speed: 1/3s~1/100,000s
• Slow Shutter: Yes
• P/N: P/N
• Wide Dynamic Range: 120dB
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0°~360°, Tilt: 0°~75°, Rotate: 0°~360°

Lens:

• Lens Type: Fixed focal lens, 2.8mm~4mm optional
• Focal Length & FOV: 2.8mm: horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°, 4mm: horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°
• Iris Type: Fixed
• Aperture: F1.6
• Lens Mount: M12

DORI:

• DORI: 2.8mm: D: 73m, O: 29m, R: 15m, I: 7m ; 4mm: D: 90m, O: 35m, R: 18m, I: 9m

Illuminator:

• Supplement Light Type: IR
• Smart Supplement Light: Yes
• IR Wavelength: 850nm
• IR Range: Up to 30m

Video:

• Max. Resolution: 3200 × 1800
• Main Stream: 50Hz: 20 ps (3200×1800), 25fps (2688× 1520, 1920×1080, 1280×720) ; 60Hz: 20fps (3200×1800), 30fps (2688× 1520, 1920×1080, 1280× 20)
• Sub Stream: 50Hz: 25fps (640×480, 640×360) ; 60Hz: 30fps (640 480, 640×360)
• Third Stream: 50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360) ; 60Hz: 10 ps (1920×1080, 1280×720, 640×480, 640×360) *Third stream is supported under certain settings.
• Video Compression: Main stream: H.265/H.264/H.264+/H.265+ ; Sub-stream: H.265/H.264/MJPEG ; Third stream: H.265/H.264*Third stream is supported under certain settings.
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• H.264+: Main stream supports

General:

• Linkage Method: Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
• Camera Material: Aluminium alloy body
• Camera Dimension: Ø127.3mm×95.9mm
• Camera Weight: Approx. 600g
• Storage Conditions: -30°C~60°C
• Humidity: 95% or less (non-condensing)
• Startup and Operating Conditions: -30°C~60°C
• Humidity: 95% or less (non-condensing)
• Web Client Language: 33 languages-English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Anti-flicker, heartbeat, password reset via email, pixel counter
• Firmware Version: V5.5.113
• Software Reset: Yes
• Power Consumption and Current: 12V DC, 0.5A, max. 6W ; PoE (802.3af, 36V57V), 0.20A0.13A, max. 7.5W
• Power Supply: 12V DC ± 25%, reverse polarity protection ; PoE: 802.3af, Class 3
• Power Interface: Ø5.5 mm coaxial power plug
