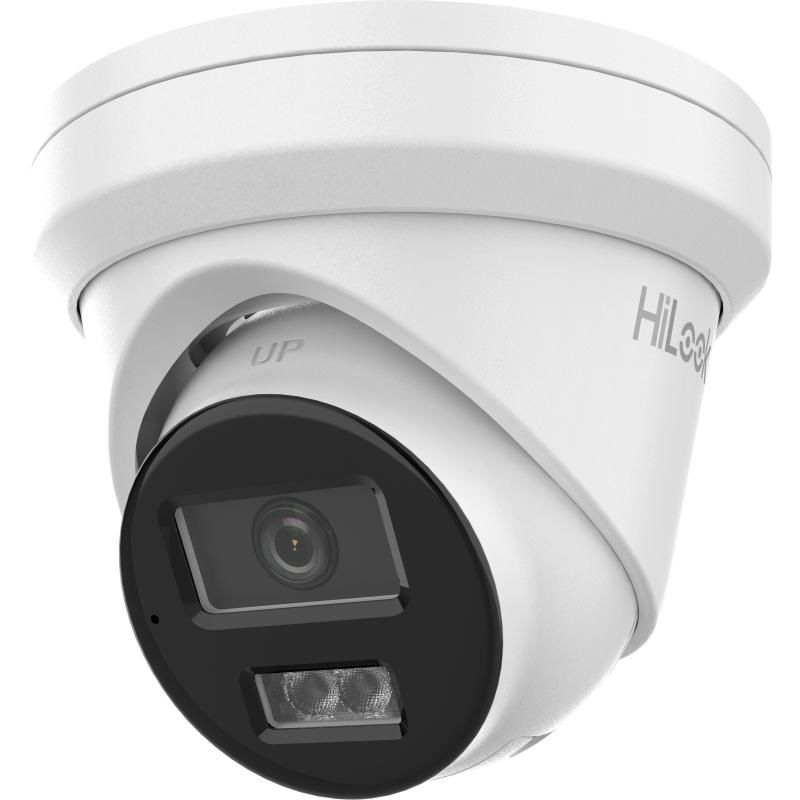

HiLook IPC-T262H-MU 6MP IP POE 4mm Fixed Turret Network Camera

HILOOK 6 MP Intelligent Dual IR Fixed Turret Network Camera

• High quality imaging with 6 MP resolution
• Support Human and Vehicle Intelligent Detection
• Dual IR lights to enhance night vision
• Built-in microphone for real-time audio security
• Water and dust resistant (IP67)
• Efficient H.265+ compression technology

Camera:

• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens:

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV: 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI:

• 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m

Illuminator:

• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video:

• Main Stream: 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
• Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region for main stream

Audio:

• Audio Type: Mono sound
• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz
• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network:

• Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK
• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
• User/Host: Up to 32 users; 3 user levels: administrator, operator, and user
• Client: iVMS-4200, HiLookVision
• Web Browser: Plug-in required live view: IE 10, IE 11; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image:

• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Privacy Mask: 4 programmable polygon privacy masks

Interface:

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in Microphone: Yes
• Reset Key: Yes

Event:

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
• Smart Event: Line crossing detection and intrusion detection (support alarm triggering by specified target types (human and vehicle))
• Linkage: Upload to FTP, send email, notify surveillance center, trigger capture

General:

• Power: 12 VDC ± 25%, 0.41 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W
• Material: Metal
• Dimension: Ø127.3 mm × 95.9 mm
• Weight: Approx. 600 g
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: English, Ukrainian
• General Function: Heartbeat, anti-banding, mirror, password protection, password reset via email
