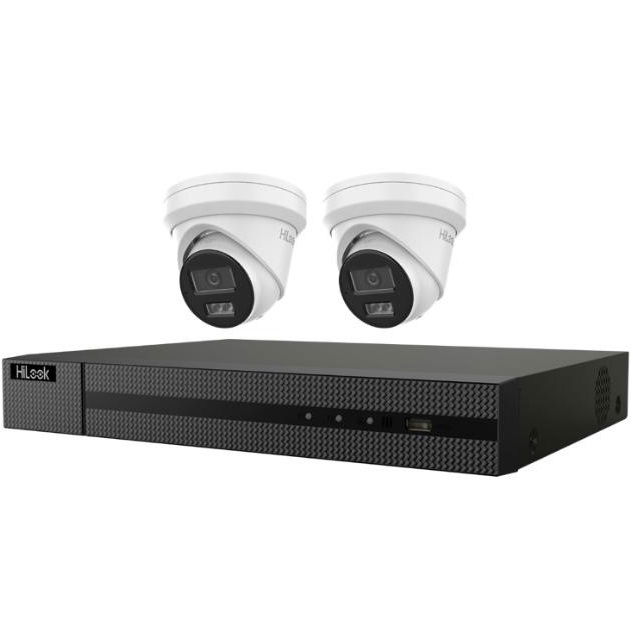

HiLook 2x 6MP 2.8mm AI Fixed Turret Network Camera + 4 Channel PoE Network Video Recorder with 2TB HDD Kit

High quality imaging with 6 MP resolution. Support Human and Vehicle Intelligent Detection. Dual IR lights to enhance night vision. Built-in microphone for real-time audio security. Water and dust resistant (IP67). Efficient H.265+ compression technology.

Camera:

• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens:

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV: 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°; 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI:

• 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m
• 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m

Illuminator:

• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video: Main Stream:

• 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Video: Sub-Stream:

• 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression:

• Main stream: H.265+/H.265/H.264+/H.264,
• Sub-stream: H.265/H.264/MJPEG

Video:

• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile,Main Profile,High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region for main stream

Audio:

• Audio Type: Mono sound
• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw)/64 Kbps (G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network:

• Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• User/Host: Up to 32 users; 3 user levels: administrator, operator, and user
• Client: iVMS-4200,Hik-Connect
• Web Browser: Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+

Image:

• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Day/Night Switch: Day,Night,Auto,Schedule
• Image Enhancement: BLC,HLC,3D DNR
• Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Privacy Mask: 4 programmable polygon privacy masks

Interface:

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in Microphone: Yes
• Reset Key: Yes

Event:

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Smart Event: Line crossing detection and intrusion detection (support alarm triggering by specified target types (human and vehicle)
• Linkage: Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

General:

• Power: 12 VDC ± 25%, 0.41 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W
• Material: Metal
• Dimension: Ø127.3 mm × 95.9 mm (Ø5.0" × 3.8")
• Weight: Approx. 600 g (1.3 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: English, Ukrainian
• General Function: Heartbeat,anti-banding,mirror,password protection,password reset via email

NVR
Video and Audio:

• IP video input: 4-ch; Up to 8 MP resolution
• Incoming bandwidth: 40 Mbps
• Outgoing bandwidth: 80 Mbps
• HDMI output: 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x - 1024/60 Hz, 1280 x 720/60 Hz
• VGA output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video output mode: HDMI/VGA simultaneous output
• CVBS output: N/A
• Audio output:1-ch, RCA (Linear, 1 KΩ)
• Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding:

• Decoding Format: H.265+,H.265,H.264+,H.264,MPEG4
• Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous playback: 4-ch
• Decoding Capability: 1-ch @ 8 MP / 4-ch @ 1080p
• Audio compression: G.711ulaw/G.711alaw/G.722/G.726

Network:

• Remote Connection: 16
• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
• Network Interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

PoE:

• Interface: 4-ch, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power: ≤ 50 W
• Standard: IEEE 802.3 af/at

Auxiliary Interface:

• SATA: 1 SATA interface
• Capacity: Up to 8 TB capacity for each disk
• USB Interface: 2 × USB 2.0

General:

• Power Supply: 48 VDC, 1.35 A
• Consumption: ≤ 10 W (without HDD and PoE off)
• Working Temperature: -10 to +55° C (14 to 131° F)
• Working Humidity: 10% to 90%
• Chassis: 1U
• Dimension (W × D × H): 265 × 225 × 48 mm (10.2" × 8.9" × 1.9")
• Weight: ≤ 1 kg (without HDD, 2.2 lb.)
