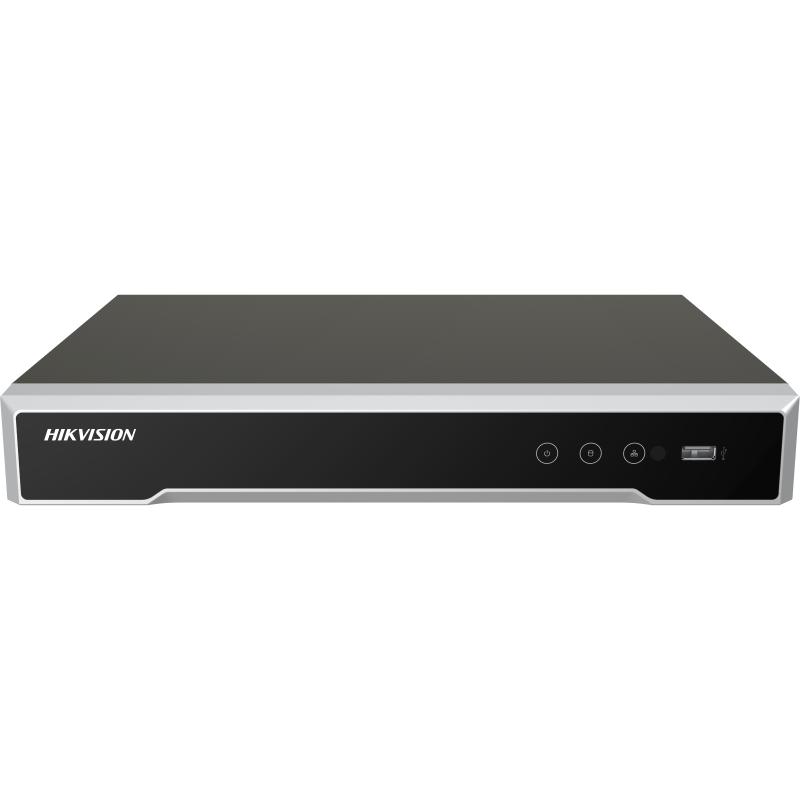

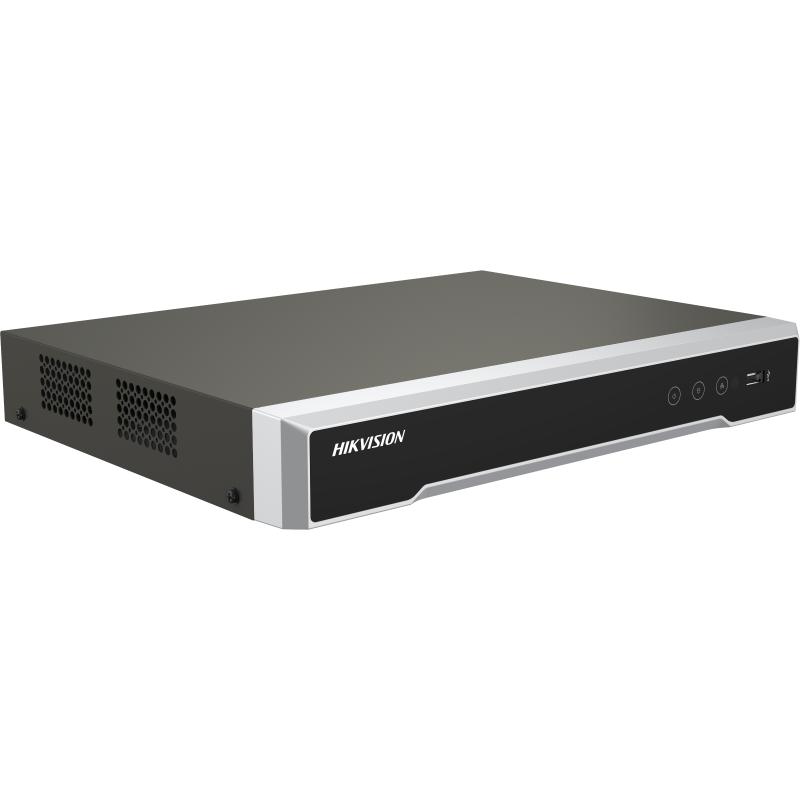

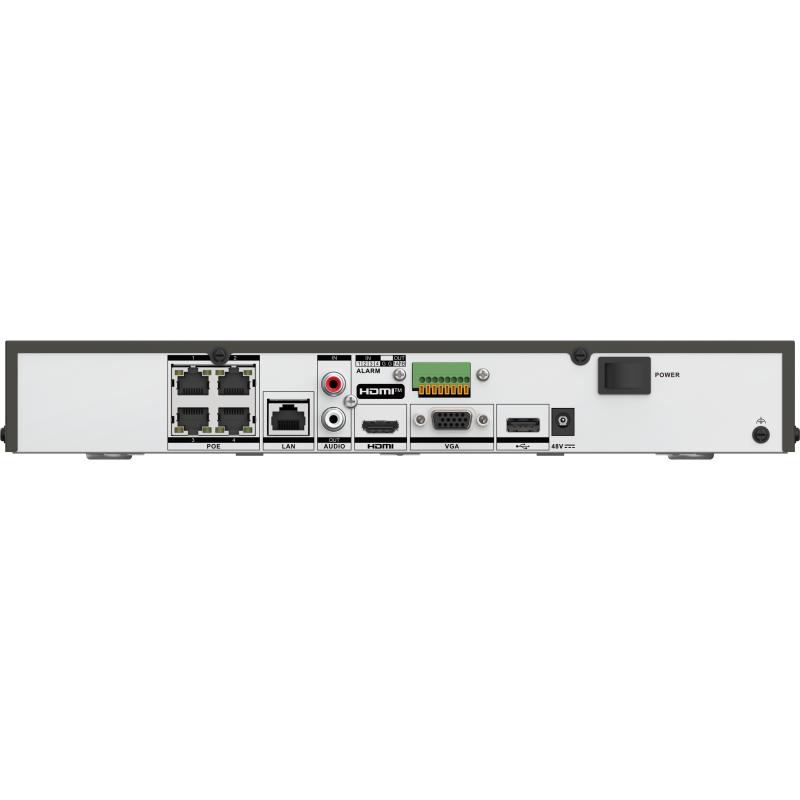

Hikvision DS-7604NI-M1/4P 4 Channel 1U 4K NVR with 2TB HDD

Hikvision DS-7604NI-M1/4P 4 Channel 1U 4K NVR with 2TB HDD

Professional and Reliability:

• H.265+ compression effectively reduces the storage space by up to 75%
• Dual-stream recording saves bandwidth
• Adopt stream over TLS encryption technology which provides more secure stream transmission service
• Support double verification for playback and downloading

HD Video Output:

• Provide independent HDMI and VGA outputs
• HDMI video output at up to 8K resolution

Storage and Playback:

• 1 SATA interface for HDD connection
• 4-ch synchronous playback

Smart & POS Function:

• Support multiple VCA (Video Content Analytics) events
• Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
• POS information overlay on live view and playback, and POS triggered recording and alarm

Network & Ethernet Access:

• 4 independent PoE network interfaces
• 1 self-adaptive 10/100/1000 Mbps Ethernet interface
• Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
• Smooth streaming technology
• Support web access without plug-in

Video and Audio:

• IP Video Input: 4-ch; Up to 32 MP resolution
• Incoming Bandwidth: 40Mbps
• Outgoing Bandwidth: 80 Mbps
• HDMI Output: 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60 Hz
• VGA Output: 1920 × 1080/60 Hz
• Video Output Mode: HDMI/VGA independent output
• CVBS Output: NA
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding:

• Dual-Stream Recording: Support
• Decoding Format: H.265+/H.265/H.264+/H.264
• Decoding Capability: 4-ch@8 MP (30 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
• Synchronous Playback: 4-ch
• Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
• Stream Type: Video, Video & Audio
• Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Network:

• Remote Connection: 128
• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE:

• Interface: 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power: ≤ 60 W
• Standard: IEEE 802.3 af/at

Auxiliary Interface:

• SATA: 1 SATA interfaces
• Capacity: Up to 16 TB capacity for each HDD
• Alarm In/Out: 4/1
• USB Interface: Front panel - 1 × USB 2.0; Rear panel - 1 × USB 2.0

General:

• Power Supply: 48 VDC, 1.875 A
• Consumption: ≤ 15 W (without HDD and PoE off)
• Working Temperature: -10 °C to 50 °C (14 °F to 122 °F)
• Working Humidity: 10% to 90%
• Dimension (W × D × H): 320× 240 × 48 mm
• Weight: ≤ 1.2 kg (without HDD)
