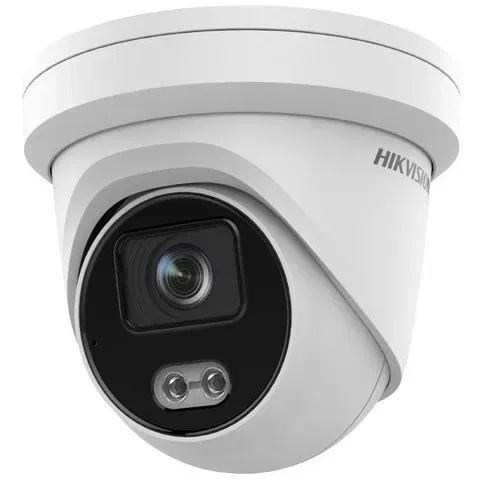

Hikvision DS-2CD2347G2-L ColorVu 4MP Fixed 4mm Turret Camera

Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses and high performance sensors. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light.

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 130 dB WDR technology
• Built-in microphone for real-time audio security(-U)
• Focusing on human and vehicle targets classification based on deep learning
• 24/7 colorful imaging
• Water and dust resistant (IP67)

Camera:

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• P/N: P/N
• Wide Dynamic Range: 130 dB
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens:

• Lens Type & FOV: 2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°, 4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°, 6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69°
• Depth of Focus: 2.8 mm, 2.5 m to ∞, 4 mm, 3.5 m to ∞, 6 mm, 7.5 m to ∞
• Aperture: F1.0
• Lens Mount: M16

Illuminator:

• White Light Range: 30 m
• Smart Supplement Light: Yes

Video:

• Max. Resolution: 2688 × 1520
• Video Compression : Main Stream: H.265/H.264/H.265+/H.264+, Sub-Stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264
• Video Bit Rate 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• H.264+: Main Stream supports
• H.265+: Main Stream supports
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): H.265 and H.264 support
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio:

• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps, (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Network:

• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage: MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto
  network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, - Local service: Chrome 57.0+, Firefox 52.0+

Image:

• SNR: ≥ 52 dB
• Day/Night Switch: Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface:

• Built-in Microphone: Yes
• On-board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
• Hardware Reset: Yes
• Communication Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event:

• Basic Event : Motion detection (human and vehicle targets classification), video tampering alarm,
  exception
• Smart Event: Scene change detection

Deep Learning Function:

• Face Capture: Yes
• Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection

General:

• Linkage Method: Upload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger
  capture, send email
• Firmware Version: V5.5.111
• General Function: Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via email, pixel counter
• Software Reset: Yes
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Power Supply: 12 VDC ± 25%, reverse polarity protection, PoE: 802.3af, class 3
• Power Consumption and Current: 12 VDC, 0.55 A, max. 6.6 W, PoE: (802.3af, 36 V to 57 V), 0.22 A to 0.13 A, max. 7.6 W
• Power Interface: Ø 5.5 mm coaxial power plug
• Material: Aluminum alloy body, except for trim ring
• Screw Material: SUS304
• Camera Dimension: Ø 138.3 × 125.2 mm
• Camera Weight: Approx. 750 g
