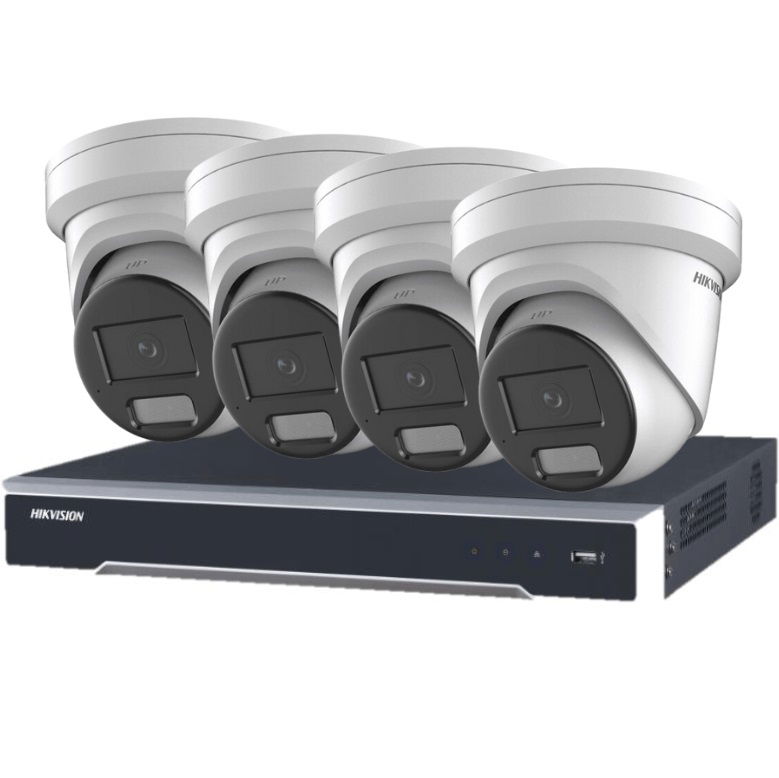

Hikvision ColorVu 4x 6MP 2.8mm IR Fixed Turret Network Camera + 8 Channel POE Network Video Recorder with 4TB HDD Kit

Hikvision’s Smart Hybrid Light Cameras with ColorVu are designed to enhance night vision experience in virtually any environment with sharply-focused imaging and versatile lighting options. These color night vision cameras incorporate cutting-edge technologies like ColorVu, Super Confocal, Smart Hybrid Light, and other functionalities to deliver reliable performance and advanced capabilities in diverse scenarios. Equipped with Smart Hybrid Light technology, Smart Hybrid Light Cameras with ColorVu intelligently adapt to varying lighting conditions. The integration of ColorVu technology takes security monitoring to the next level by providing vivid, full-color images even in extremely low-light environments. Read on to learn more about how the excellent performance of these Cameras, and their leading technologies create a versatile ColorVu experience in your specific setting.

Camera:

• 6 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera
• High quality imaging with 6 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Clear imaging against strong back light due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• Provide real-time security via built-in two-way audio
• Active strobe light and audio alarm to warn intruders off
• Support on-board storage up to 512 GB (SD card slot)
• Water and dust resistant (IP67)
• Audio and alarm interface available

Network Video Recorder

• 8-ch 1U 8 PoE 8K NVR
• H.265+/H.265/H.264+/H.264 video formats
• Up to 8-ch IP camera inputs
• Up to 8-ch@8 MP decoding capacity
• Up to 128 Mbps incoming bandwidth
• Up to 8-ch IP speakers can be connected

Camera:

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens:

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV: 2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°; 4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°
• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field: 2.8 mm: 3.3 m to ∞; 4 mm: 3.8 m to ∞

DORI:

• 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
• 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Illuminator:

• Supplement Light Type: IR, White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video: Main Stream:

• 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 24 fps (3200 × 1800)
• 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Video: Sub-Stream:

• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Video: Third Stream:

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Video Compression:

• Main stream: H.265/H.264/H.264+/H.265+,
• Sub-stream: H.265/H.264/MJPEG,
• Third stream: H.265/H.264,

Video:

• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile,Main Profile,High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR,VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio:

• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Type: Mono sound
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes

Network:

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/Host: Up to 32 users; 3 user levels: administrator, operator, and user
• Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
• Client: iVMS-4200,Hik-Connect
• Web Browser: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image:

• Image Parameters Switch: Yes
• Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night Switch: Day,Night,Auto,Schedule
• Image Enhancement: BLC,HLC,3D DNR,Defog
• SNR: ≥ 52 dB
• Wide Dynamic Range (WDR): 130 dB
• Privacy Mask: 4 programmable polygon privacy masks

Interface:

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone: Yes,1 built-in microphone
• Built-in Speaker: Max. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB.
• Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
• Audio: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
• Reset Key: Yes

Event:

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light
• Smart Event: Scene change detection

Deep Learning Function:

• Face Capture: Yes
• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)

General:

• Power: 12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug,reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 10.5 W
• Material: Cover: metal, main body: metal
• Dimension: Ø138.3 × 115.4 mm (Ø5.4" × 4.5")
• Weight: Approx. 820 g (1.8 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function: Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
• Language: 33 languages

NVR
Video and Audio:

• IP Video Input: 8-ch; Up to 32 MP resolution
• Incoming Bandwidth: 128 Mbps
• Outgoing Bandwidth: 256 Mbps
• HDMI Output: 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
• VGA Output: 1920 × 1080/60Hz
• Video Output Mode: HDMI/VGA independent output
• CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding:

• Dual-Stream Recording: Support
• Decoding Format: H.265+/H.265/H.264+/H.264
• Decoding Capability: 2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
• Synchronous Playback: 8-ch
• Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
• Stream Type: Video, Video & Audio
• Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Network:

• Remote Connection: 128
• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
• Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• Camera Access Protocol: ONVIF(Version 2.5), RTSP

PoE:

• Interface: 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power: ≤ 120 W
• Standard: IEEE 802.3 af/at

Auxiliary Interface:

• SATA: 2 SATA interfaces
• Capacity: Up to 16 TB capacity for each disk
• Alarm In/Out: 4/1
• USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

General:

• Power Supply: 100 to 240 VAC, 50 to 60 Hz
• Consumption: ≤ 15 W (without HDD and PoE off)
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90%
• Dimension (W × D × H): 385 × 315× 52 mm (15.2" × 12.4" × 2.0")
• Weight: ≤ 3 kg (without HDD, 2.2 lb.)
