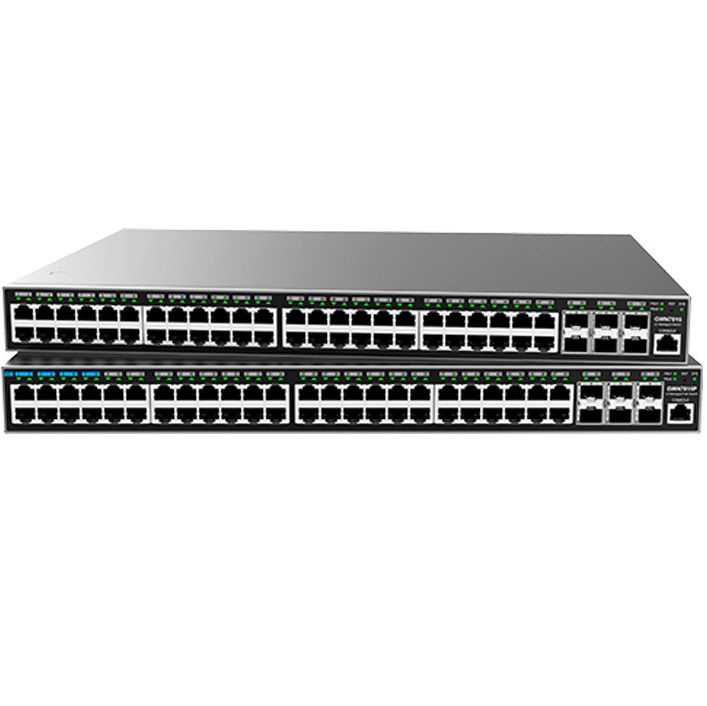

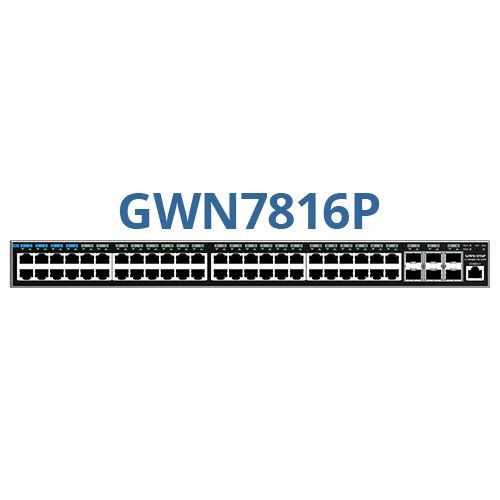

Grandstream GWN7816P 48xGigE 6xSFP+ Layer 3 PoE Managed Network Switch

The GWN7816(P) are 48-port Layer 3 managed network switches that allow medium-to-large enterprises to build scalable, secure, high performance and smart business networks that are fully manageable.

48-Port Layer 3 Switch:
The GWN7816(P) is a 48-port layer 3 managed network switch that provides 6 SFP+ ports, while the GWN7816P also provides 48 ports of PoE, PoE+, and PoE++ output.

High-Performance Networking:
The GWN7816(P) includes 6 SFP+ optical ports and supports up to 216Gbps switching capacity.

Automatically Power Your Devices:
PoE devices can be automatically discovered and powered by the 48-port GWN7816 to provide quick and easy installation.

Free, Centralized Cloud Management:
Deploy and manage the GWN7816(P), and all Grandstream solutions, centrally from the cloud using the free Grandstream Device Management System (GDMS).

Supports Stacking:
Coming Soon - Easy management multiple switches using one interface while creating redundant backup between multiple devices.

• Network Protocols: IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x
• PoE Standards: IEEE 802.3af/at/bt
• Gigabit Ethernet Ports: 48
• SFP+ 10Gigabit Ports: 6
• Maximum Amount of Supported Modules: SM-10G: 6; MM-10G: 6; RJ45-10G: 3
• Console: 1
• # of PoE Ports: 48
• PSUs: 1 PSU of 920W by default, support 1 Hot swap PSU (Purchased Separately)
• Maximum Output Power Per PoE Port: 60W(1-8,PoE++) 30W(9-48)
• Max Total PoE Output Power: 740W with 1 PSU
• PoE Standards: IEEE 802.3af/at/bt
• Surge Protection: ± 4KV CM and ± 2KV DM for power; ± 4KV CM for network ports
• ESD: ± 12KV for contact discharge
• Auxiliary Ports: 1x Reset Pinhole
• Forwarding Mode: Store-and-forward
• Total non-blocking throughput: 108 Gbps
• Switching Capability: 216 Gbps
• Forwarding Rate: 160.704 Mpps
• Packet Buffer: 16 Mb
• Network Latency: < 4µs
• DHCP: DHCP server, DHCP relay, DHCP Option 82, 60, 160 and 43
• Mounting: Desktop, or Rail-Mount; (rack-mounting kits included)
• LEDs: 1x tri-color LED for device tracking and status indication; 2x bi-color LEDs for per power supply PSU1/2; 54x green-color LEDs for data transferring; 48x yellow-color LEDs for PoE powered
• Fan: 4
• Operation: 0°C to 45°C, humidity 10-90% RH(Non-condensing)
• Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing)
• Dimensions (LxWxH): 440 x 380 x 44mm
• Weight: 6Kg
