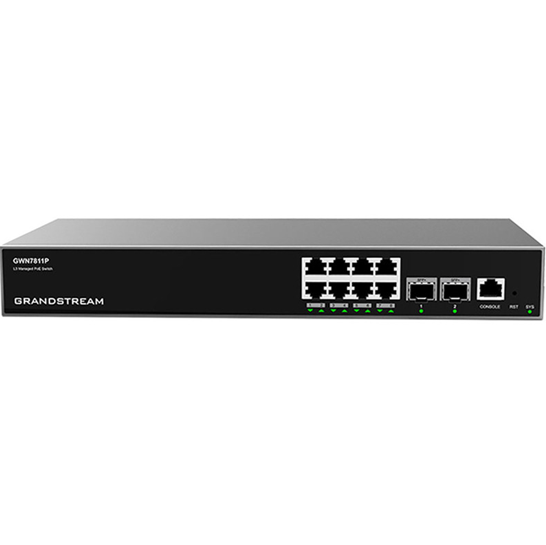

Grandstream GWN7811P 8xGigE 2xSFP+ Layer 3 PoE Managed Switch

The GWN7810 series are Layer 3 managed network switches that allow medium-to-large enterprises to build scalable, secure, high performance and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks.

• 8 Gigabit Ethernet ports and 2 10Gigabit SFP+ ports
• Smart power control to support dynamic PoE/PoE+ power allocation per port
• Supports deployment in IPv6 and IPv4 networks
• ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Embedded controller to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform
• Built-in QoS allows for prioritization of network traffic

• Network Protocols: IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1x
• PoE Standards: IEEE 802.3af/at
• Gigabit Ethernet Ports: 8
• 10Gigabit SFP+ Ports: 2 (Note: Supports DAC cable, and must be ≤ 5m)
• Maximum no. of Supported Modules: SM-10G: 2, MM-10G: 2, RJ45-10G: 2
• Console: 1
• # of PoE Ports: 8
• Link Aggregation: 5
• External Redundant Power Supply (RPS): N/A
• Max Output Power per PoE Port: 30W
• Max Total PoE Output Power: 120W
• PoE Standards: IEEE 802.3af/at
• Auxiliary Ports: 1x Reset Pinhole
• Forwarding Mode: Store-and-forward
• Total non-blocking throughput: 28Gbps
• Switching Capability: 56Gbps
• Forwarding Rate: 41.644Mpps
• Packet Buffer: 12MB
• Network Latency: < 4µs
• Switching: 16K static, dynamic and filtering MAC addresses, 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN, VLAN virtual interface, GVRP (pending), Spanning tree, 32 instances for STP/RSTP/MSTP
• Routing: Static routing, Dynamic routing, including RIP, RIPng, OSPF and OSPFv3, Policy routing (pending)
• Multicast: IGMP Snooping, MLD Snooping, MVR (pending)
• QoS/ACL: Port priority; Priority mapping; Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ; Traffic shaping; Rate limit; 2K ACL for Ethernet, IPv4 and IPv6
• DHCP: DHCP server, DHCP relay, DHCP Option 82, 60, 160 and 43
• Maintenance: CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, diagnostics including Ping, Traceroute, port
mirroring, UDLD (TBD) and copper test
• Security: User hierarchical management and password protection, HTTPS, SSH, Telnet; 802.1X authentication; AAA authentication including RADIUS, TACACS+; Storm control; Port isolation, port security, sticky MAC; Filtering MAC address; IP source guard, DoS attack prevention, ARP inspection; DHCP Snooping; Loop protection including BPDU protection, root protection(pending) and loopback protection(pending); Kensington Security Slot (Kensington Lock) support
• Mounting: Desktop, Wall-Mount, or Rack-Mount(rack-mounting kits included)
• System LEDs: 1x tri-color LED for device tracking and status indication
• Power Supply LEDs: N/A
• Data Transferring LEDs: 10x green-color LEDs
• PoE Powered LEDs: 8x yellow-color LEDs
• Environmental - Operation: 0°C to 45°C, humidity 10-90% RH(Non-condensing)
• Environmental - Storage: -10°C to 60°C, humidity: 5% to 95% RH(Non-condensing)
• Dimensions (L x W x H) 330 x176 x44mm
• Unit Weight: 2.17kg

• 1x Switch
• 1x 1.2m (10A) AC Cable
• 1x 25cm Ground Cable
• 4x Rubber Footpads
• 1x Power Cord Anti-Trip
• 8x Screws (KM 3*6)
• 1x Quick Installation Guide
• 2x Extended Rack-Mounting Kits
