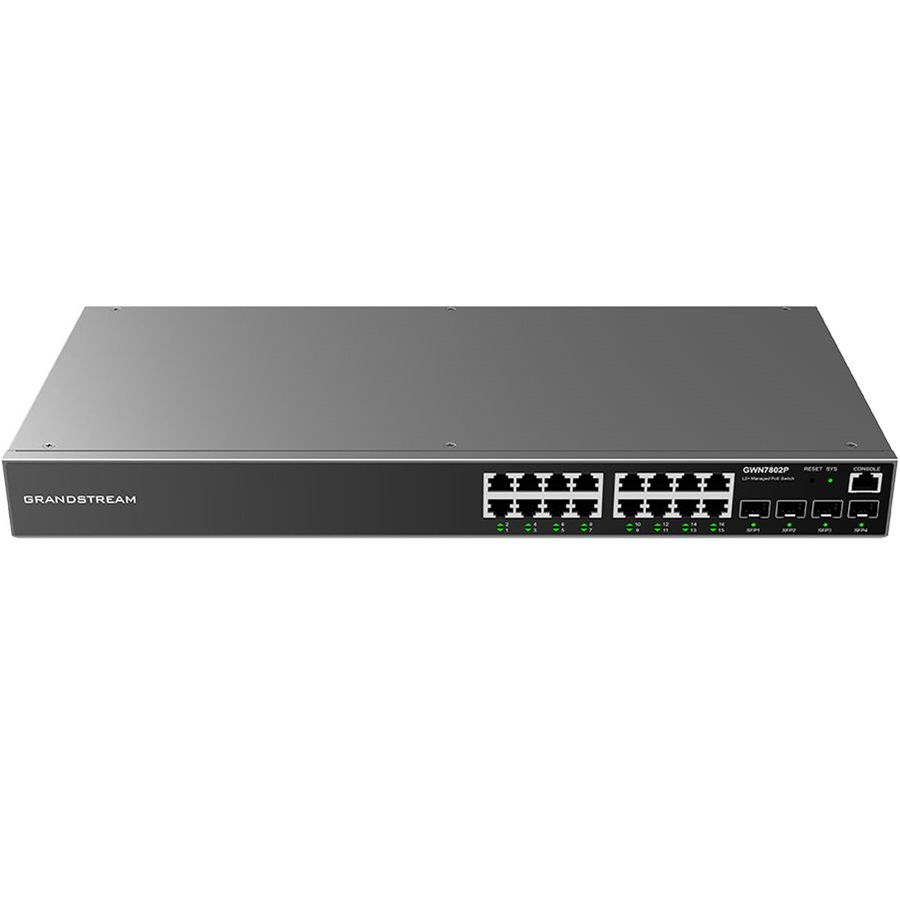

Grandstream GWN7802P 16xGigE 4xSFP Layer 2+ PoE Managed Switch

The GWN7800 series are Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable, secure, high performance, and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The PoE models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The GWN7800 series can be managed in a number of ways, including the local web user interface of the GWN7800 series switch. The series is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. The enterprise-grade GWN7800 series are the ideal managed network switches for small-to medium businesses.

• 16 Gigabit Ethernet ports and 4 Gigabit SFP ports
• Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
• Supports deployment in IPv6 and IPv4 networks
• Provides quaternary binding of IP, MAC, VLAN & port; ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Local Web UI to manage switch; GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform
• Built-in QoS allows for prioritization of network traffic

• Network Protocols: IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, • IEEE 802.1d, IEEE 802.1s
• PoE Standards: IEEE 802.3af/at
• Gigabit Ethernet Ports: 16
• Gigabit SFP Ports: 4
• Console: 1
• # of PoE Ports: 16
• Integrated Power Supply: 270W
• Max Output Power per PoE Port: 30W
• Max Total PoE Output Power: 240W
• PoE Standards: IEEE 802.3af/at
• Surge Protection: ± 6KV CM and DM for power; ± 4KV CM for network ports
• ESD: ± 12KV for contact discharge
• Auxiliary: Ports 1x Reset Pinhole
• Forwarding Mode: Store-and-forward
• Total non-blocking throughput: 20Gbps
• Switching Capability: 40Gbps
• Forwarding Rate: 29.76Mpps
• Packet Buffer: 4.1Mb
• Network Latency: Avg < 4µs
• Multicast: IGMP Snooping, MLD Snooping, MVR
• DHCP: DHCP server, DHCP relay, Option 82, 60,160 and 43
• Maintenance: CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, alert, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test
• LEDs: 1x tri-color LED for device tracking and status indication, 20x green-color LEDs for data ports, 16x yellow-color LEDs for PoE ports
• Fan: 1
• Dimensions (LxWxH): 440 x 200 x 44 mm
• Unit Weight: 3Kg
• Mounting: Desktop, Wall-Mount, or Rack-Mount(rack-mounting kits included)
