Product Description:

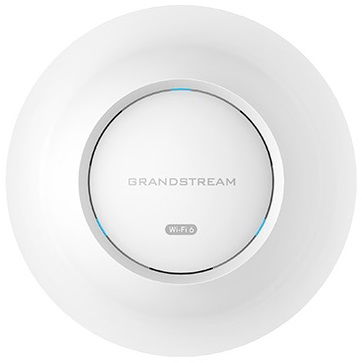

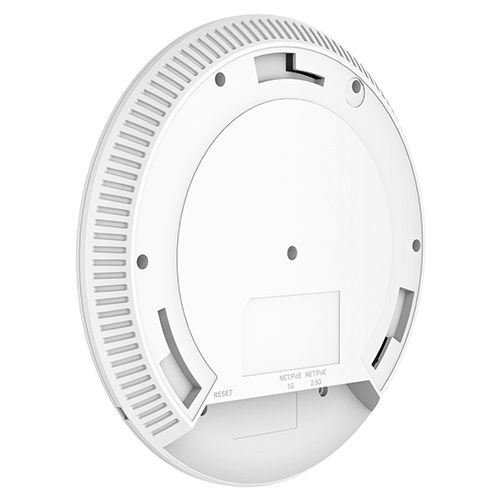

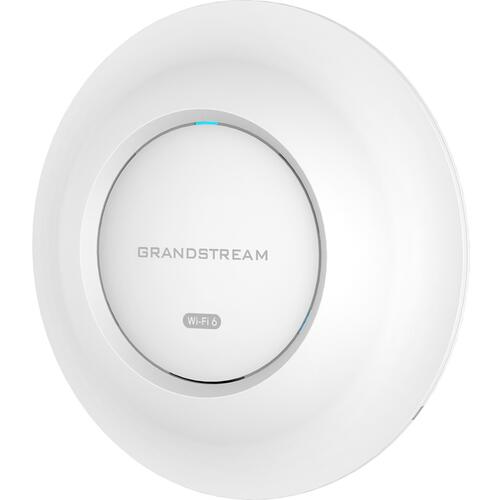

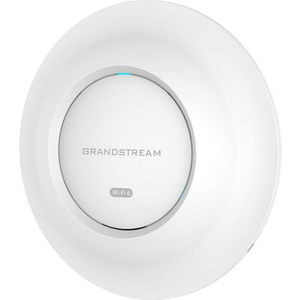

Grandstream GWN7664E 802.11ax Mu-mimo PoE Wireless Indoor Access Point
The GWN7664E is a powerful, enterprise-grade 802.11ax Wi-Fi 6 access point, ideal for medium-to-large sized businesses, multiple-floor buildings, residential settings, and commercial locations.
Features:
• 6Gbps aggregate wireless throughput, 5Gbps aggregate wired throughput
• Dual-band 4x4:4 MU-MIMO with DL/UL OFDMA technology
• Up to 175-meter coverage range
• Supports 512 concurrent Wi-Fi client devices
• Includes 2x 2.5G Ports
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Self power adaptation upon auto detection of PoE or PoE+
• Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
• Dual-band 4x4:4 MU-MIMO with DL/UL OFDMA technology
• Up to 175-meter coverage range
• Supports 512 concurrent Wi-Fi client devices
• Includes 2x 2.5G Ports
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Self power adaptation upon auto detection of PoE or PoE+
• Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
Specifications:
Wi-Fi Standards:
• IEEE 802.11 a/b/g/n/ac/ax
Antennas:
• 8 individual internal antennas, 4 per band
• 2.4GHz, gain 3.5dBi
• 5 GHz, gain 4.5dBi
Wi-Fi Data Rates: 5G:
• IEEE 802.11ax: 7.3 Mbps to 4804 Mbps
• IEEE 802.11ac: 6.5 Mbps to 3467 Mbps
• IEEE 802.11n: 6.5Mbps to 600Mbps
• IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wi-Fi Data Rates: 2.4G:
• IEEE 802.11ax: 7.3 Mbps to 1147 Mbps
• IEEE 802.11n: 6.5Mbps to 600Mbps
• IEEE 802.11b: 1, 2, 5.5, 11 Mbps
• IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Frequency Bands:
• 2.4GHz Radio: 2400 - 2483.5 MHz
• 5GHz Radio: 5150 - 5895 MHz
Channel Bandwidth:
• 2.4G: 20 and 40 MHz
• 5G: 20, 40, 80 and 160 MHz
Wi-Fi and System Security:
• WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MU-MIMO:
• 4×4:4 2.4GHz
• 4×4:4 5GHz
Coverage Range:
• Up to 175 meters
Maximum TX Power:
• 5G: 25.5dBm
• 2.4G: 26.5dBm
Receiver Sensitivity: 2.4G:
• 802.11b: -97dBm@1Mbps, -89dBm@11Mbps;
• 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
• 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7;
• 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11
Receiver Sensitivity: 5G:
• 802.11a: -93dBm @6Mbps, -75dBm @54Mbps;
• 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
• 802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;
• 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -61dBm @MCS11;802.11ax 80MHz: -58dBm @MCS11;
• 802.11ax 160MHz:-55dBm @MCS11;
SSIDs:
• 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients:
• 512
Network Interfaces:
• 2 x 2.5G Ports
Auxiliary Ports:
• 1x Reset Pinhole, 1x Kensington lock
Mounting:
• Indoor wall mount or ceiling mount, kits included
LEDs:
• 3 tri-color LEDs for device tracking and status indication
Network Protocols:
• IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS:
• 802.11e/WMM, VLAN, TOS
Network Management:
• Embedded controller can manage up to 50 local GWN APs
• GWN.Cloud offers a free cloud management platform for unlimited GWN APs
• GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency:
• PoE 802.3at;
• Maximum Power Consumption: 21W
Environmental:
• Operation: 0°Cto 50°C
• Storage: -10°C to 60°C
• Humidity: 10% to 95% Non-condensing
Physical:
• Unit Dimension: 205.3mmx205.3mmx45.9mm; Unit Weight: 0.714Kg
Compliance:
• FCC, CE, RCM, IC
• IEEE 802.11 a/b/g/n/ac/ax
Antennas:
• 8 individual internal antennas, 4 per band
• 2.4GHz, gain 3.5dBi
• 5 GHz, gain 4.5dBi
Wi-Fi Data Rates: 5G:
• IEEE 802.11ax: 7.3 Mbps to 4804 Mbps
• IEEE 802.11ac: 6.5 Mbps to 3467 Mbps
• IEEE 802.11n: 6.5Mbps to 600Mbps
• IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wi-Fi Data Rates: 2.4G:
• IEEE 802.11ax: 7.3 Mbps to 1147 Mbps
• IEEE 802.11n: 6.5Mbps to 600Mbps
• IEEE 802.11b: 1, 2, 5.5, 11 Mbps
• IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Frequency Bands:
• 2.4GHz Radio: 2400 - 2483.5 MHz
• 5GHz Radio: 5150 - 5895 MHz
Channel Bandwidth:
• 2.4G: 20 and 40 MHz
• 5G: 20, 40, 80 and 160 MHz
Wi-Fi and System Security:
• WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MU-MIMO:
• 4×4:4 2.4GHz
• 4×4:4 5GHz
Coverage Range:
• Up to 175 meters
Maximum TX Power:
• 5G: 25.5dBm
• 2.4G: 26.5dBm
Receiver Sensitivity: 2.4G:
• 802.11b: -97dBm@1Mbps, -89dBm@11Mbps;
• 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
• 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7;
• 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11
Receiver Sensitivity: 5G:
• 802.11a: -93dBm @6Mbps, -75dBm @54Mbps;
• 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
• 802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;
• 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -61dBm @MCS11;802.11ax 80MHz: -58dBm @MCS11;
• 802.11ax 160MHz:-55dBm @MCS11;
SSIDs:
• 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients:
• 512
Network Interfaces:
• 2 x 2.5G Ports
Auxiliary Ports:
• 1x Reset Pinhole, 1x Kensington lock
Mounting:
• Indoor wall mount or ceiling mount, kits included
LEDs:
• 3 tri-color LEDs for device tracking and status indication
Network Protocols:
• IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS:
• 802.11e/WMM, VLAN, TOS
Network Management:
• Embedded controller can manage up to 50 local GWN APs
• GWN.Cloud offers a free cloud management platform for unlimited GWN APs
• GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency:
• PoE 802.3at;
• Maximum Power Consumption: 21W
Environmental:
• Operation: 0°Cto 50°C
• Storage: -10°C to 60°C
• Humidity: 10% to 95% Non-condensing
Physical:
• Unit Dimension: 205.3mmx205.3mmx45.9mm; Unit Weight: 0.714Kg
Compliance:
• FCC, CE, RCM, IC
Package Contents:
• GWN7664E 802.11ax Wireless AP
• Mounting Kits
• Quick Start Guide
• Mounting Kits
• Quick Start Guide
Additional Details:
-
Stock Availability: 4 In Stock Now
-
Warranty: 3 Years
-
Manufacturer:
Grandstream Shop
-
Product Found In: Access Points
-
Model Number: GWN7664E
-
Part Number: SN000443
