Grandstream GWN7664E 4×4:4 802.11ax WiFi 6 Outdoor Access Point

The GWN7664ELR is a high-performance outdoor long-range 802.11ax Wi-Fi6 access point for medium-to-large businesses and enterprises who need to provide long-range coverage in outdoor spaces. It offers IP67-level weatherproof capability, dual-band 4×4:4 MU-MIMO with OFDMA technology and a sophisticated antenna design for up to 6 Gbps wireless throughput that supports 512 clients and an expanded 300-meter coverage range. To ensure easy installation and management, the GWN7664ELR includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. The GWN7664ELR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi capable voice and video IP phones. This device features support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 2.5 Gigabit Ethernet port with PoE+, and a 2.5 Gigabit SFP port. TheGWN7664ELR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools and more.

• 6Gbps aggregate wireless throughput, 2.5Gbps RJ45 and 2.5Gbps SFP wireline ports
• Dual-band 4×4:4 MU- MIMO WiFi6 with OFDMA technology
• MediaTek Wi-Fi Chipset
• 2.5 Gigabit Ethernet Port supports self power adaptation upon auto detection of PoE+
• Supports 512 concurrent Wi-Fi client devices
• Up to 300-meter coverage range
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Flexibility of 8 internal antennas
• Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

Wi-Fi Standards:

• IEEE 802.11 b/g/n/ac/ax

Antennas:

• 8 individual internal antennas
• 2.4GHz, gain 5.5dBi
• 5GHz, gain 6.5dBi

Wi-Fi Data Rates:
5G

• IEEE 802.11ax: 7.3 Mbps to 4804 Mbps
• IEEE 802.11ac: 6.5 Mbps to 3467 Mbps
• IEEE 802.11n: 6.5Mbps to 600 Mbps
• IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

2.4G

• IEEE 802.11ax: 7.3 Mbps to 1147 Mbps
• IEEE 802.11n: 6.5Mbps to 600Mbps
• IEEE 802.11b: 1, 2, 5.5, 11 Mbps
• IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Frequency Bands:

• 2.4GHz radio: 2400 - 2483.5 MHz; 5GHz radio: 5150-5850 MHz

Channel Bandwidth:

• 2.4G: 20 and 40 MHz (x4)
• 5G: 20, 40,80 and 160 MHz (x4)

System Security:

• WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device

MU-MIMO:

• 4×4:4 2.4GHz, 4×4:4 5GHz

Coverage Range:

• Up to 300 meters

Maximum TX Power:

• 5G: 23.5dBm
• 2.4G: 24.5dBm

Receiver Sensitivity:
2.4G

• 802.11b: -97dBm@1Mbps, -89dBm@11Mbps;
• 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
• 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7;
• 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11

5G

• 802.11a: -93dBm @6Mbps, -75dBm @54Mbps;
• 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
• 802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;
• 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -61dBm @MCS11;802.11ax 80MHz: -58dBm @MCS11;
• 802.11ax 160MHz:-55dBm@MCS11;

SSIDs:

• 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)

Concurrent Clients:

• 512

Network Interfaces:

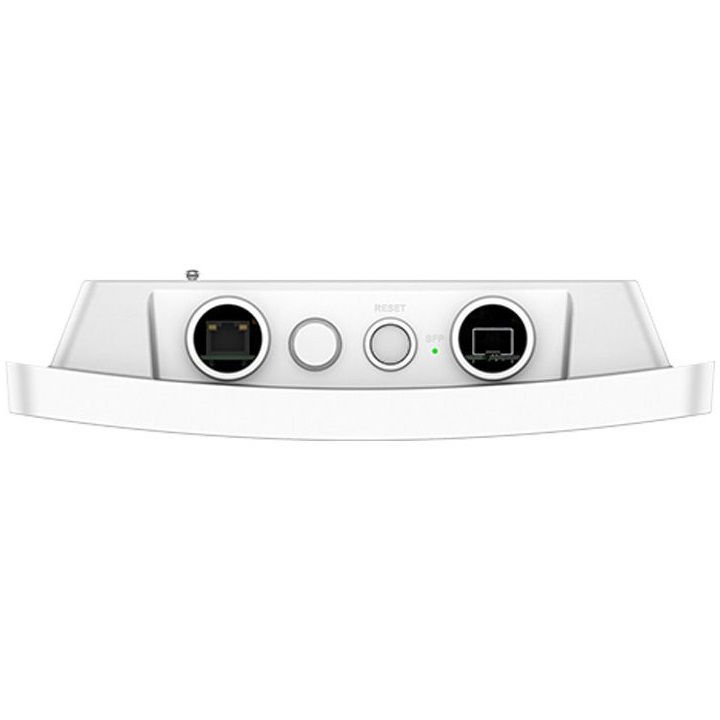

• 1x 2.5G RJ45 Port and 1x 2.5G SFP Port

Auxiliary Ports:

• 1x Reset Button

Mounting:

• Wall mount or pole mount, kits included (The mounting kits can be rotated and adjusted by 60°)

LEDs:

• 1 tri-color LEDs for device tracking and status indication, 1 single-color LED for SFP indication

Network Protocols:

• IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS:

• 802.11e/WMM, VLAN, TOS

Network Management:

• Embedded controller can manage up to 50 local GWN APs
• GWN.Cloud offers a free cloud management platform for unlimited GWN APs
• GWN Manager offers premise-based software controller for up to 3,000 GWN APs

Power and Green Energy Efficiency:

• PoE 802.3at;
• Maximum Power Consumption: 24W

Environmental:

• Operation:-30°Cto 60°C
• Storage: -30°C to 60°C
• Humidity: 10% to 90% Non-condensing

Physical:

• Dimension (LxWxH): 260 x 310 x 59 mm
• Weight: 1.445kg
• Weatherproof Grade IP67-level weatherproof capability

GWN7664ELR 802.11ax Wireless AP
Mounting Kits
Quick Installation Guide
