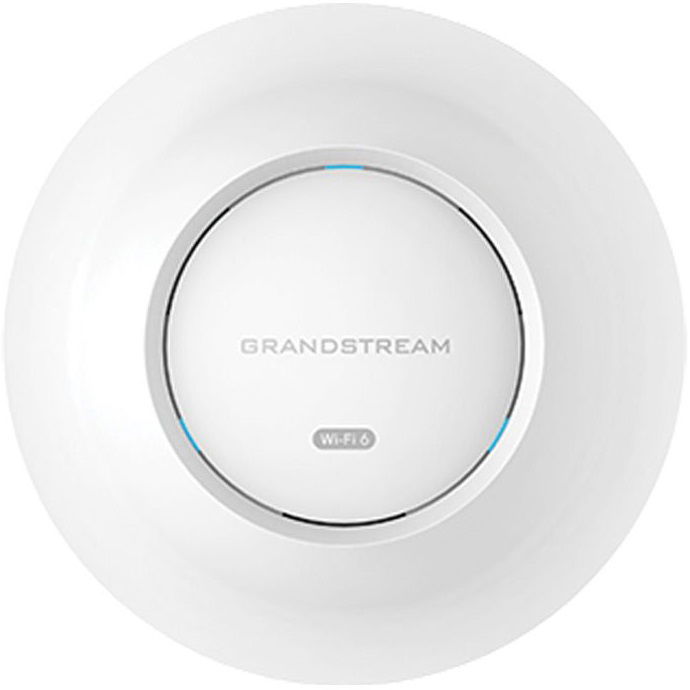

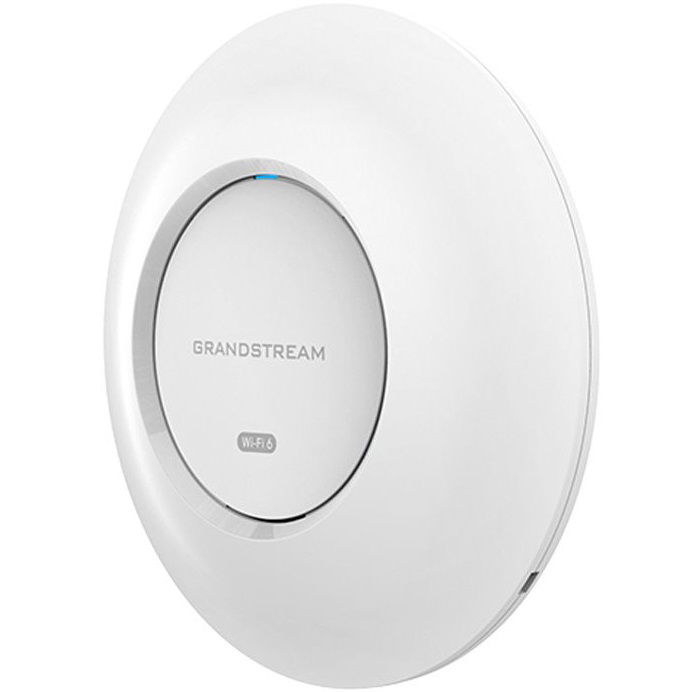

Grandstream GWN7660E WiFi 6 2x2 802.3af Wireless Indoor Access Point

The GWN7660E is an enterprise-grade Wi-Fi 6 access point that allows businesses to build next-generation Wi-Fi networks for high-density environments. It offers 2x2:2 MU-MIMO technology on the 2.4G band and 3x3:2 MU-MIMO on the 5G band as well as a sophisticated antenna design and uses XTRA Range technology with beamforming for maximum network throughput and expanded Wi-Fi coverage range.To ensure easy installation and management, the GWN7660E uses a controller-less distributed network management design in which the controller is embedded within the product’s Web user interface. The GWN7660E is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency realtime applications, mesh networks, captive portals, 256 concurrent clients per AP and Gigabit network ports with PoE/ PoE+, GWN7660E is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.

• 3Gbps aggregate wireless throughput and 1 Gigabit wireline port
• Dual-band 2.4G 2x2:2 and 5G 3x3:2 MU- MIMO with OFMDA and XTRA Range technology
• Up to 175-meter coverage range
• Supports 256 concurrent Wi-Fi client devices
• MediaTek Wi-Fi Chipset
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Self-power adaptation upon auto-detection of PoE or PoE+
• Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise-based software controller

Wi-Fi Standards:

• IEEE 802.11 a/b/g/n/ac/ax

Antennas:

• 5 individual internal antennas
• 2.4GHz x 2, gain 4.0dBi
• 5 GHz x 3, gain 5.0dBi

Wi-Fi Data Rates:
5G

• IEEE 802.11ax: 7.3 Mbps to 2402 Mbps;
• IEEE 802.11ac: 6.5 Mbps to 867 Mbps;
• IEEE 802.11n: 6.5Mbps to 300Mbps;
• IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

2.4G

• IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps;
• IEEE 802.11n: 6.5Mbps to 300Mbps;
• IEEE 802.11b: 1, 2, 5.5, 11 Mbps;
• IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Frequency Bands:

• 2.4GHz radio: 2400-2483.5MHz
• 5GHz radio: 5150-5850MHz

Channel Bandwidth:

• 2.4G: 20 and 40 MHz
• 5G: 20,40,80 and 160MHz

Wi-Fi and System Security:

• WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device

MIMO:

• 2x2:2 2.4GHz
• 3x3:2 5GHz

Coverage Range:

• Up to 175 meters

Maximum TX Power:

• 5G: 24dBm
• 2.4G: 24dBm

Receiver Sensitivity:
2.4G

• 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
• 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7;
• 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11;

5G

• 802.11a: -92dBm @6Mbps, -74dBm @54Mbps;
• 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7;
• 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: 40MHz: -63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9 ;
• 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11;802.11ax 80MHz: -56dBm @
• MCS11;802.11ax 160MHz: -52dBm@ MCS11

SSIDs:

• 32 SSIDs total, 16 per radio (2.4GHz and 5 GHz)

Concurrent Clients:

• 256

Network Interfaces:

• 1x autosensing 10/100/1000 Base-T Ethernet Port

Auxiliary Ports:

• 1x Reset Pinhole, 1x Kensington lock

Mounting:

• Indoor wall mount or ceiling mount, kits included

LEDs:

• 3 tri-color LEDs for device tracking and status indication

Network Protocols:

• IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS:

• 802.11e/WMM, VLAN, TOS

Network Management:

• Embedded controller can manage up to 50 local GWN APs
• GWN.Cloud offers a free cloud management platform for unlimited GWN APs
• GWN Manager offers premise-based software controller for up to 3,000 GWN APs

Power and Green Energy Efficiency:

• PoE 802.3af/ 802.3at;
• Maximum Power Consumption: 12.95W

Environmental:

• Operation: 0°C to 50°C
• Storage: -10°C to 60°C
• Humidity: 10% to 90% Non-condensing

Physical:

• Dimension: 180.4 x 180.4 x 40.8 mm
• Weight: 385g

• GWN7660E Wireless AP
• Mounting Kits
• Quick Start Guide
