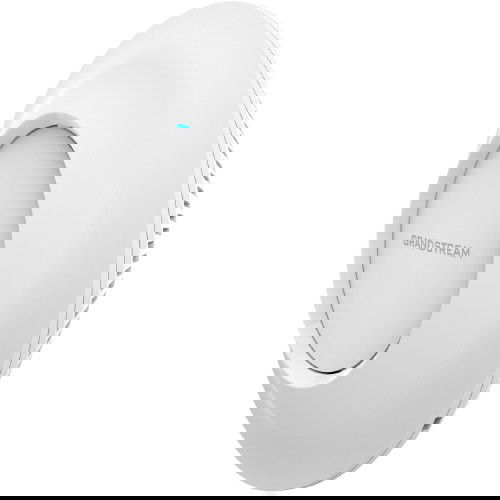

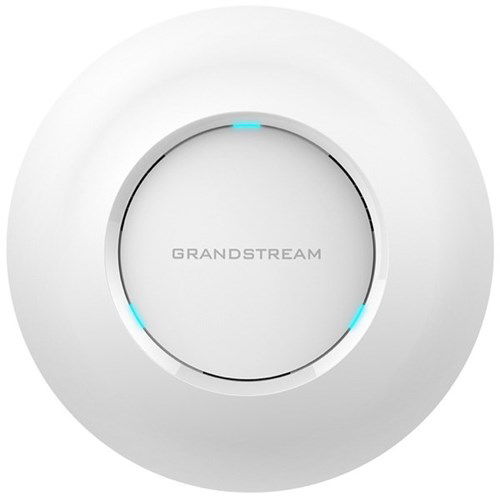

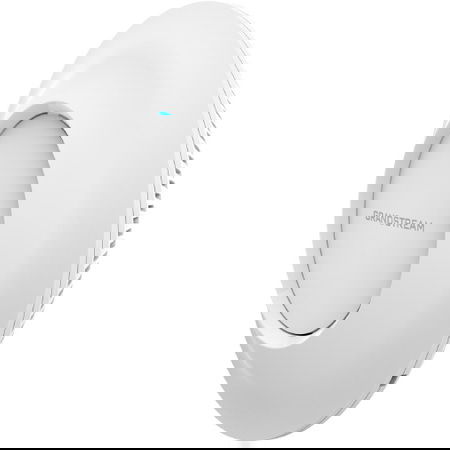

GrandStream GWN7610 802.11ac Wireless Access Point

The GWN7610 is a high-powered 802.11ac WiFi Access Point that is ideal for office buildings, multiple floor locations, branch offices and commercial/retail settings. It works with any third party router/switch and offers a number of significant competitive advantages including tremendous network throughput, outstanding wireless coverage range, market-leading security features, and embedded network management capabilities without external controllers or single point of failure.

• Support for up to 16 SSIDs per radio and up to 250+ concurrent WiFi clients
• Dual-band 3x3:3 MIMO technology and a sophisticated antenna design for maximum network throughput of up to 1.75Gbps and expanded coverage range of up to 175 meters
• Dual Gigabit ports with support for PoE/PoE+, USB port for future applications such as location based service and other IoT (Internet of Things) applications
• User friendly built-in provisioning controller (via Web interface) allows any GWN7610 to auto discover, auto-provision and manage networks of up to 50 GWN7610s without requiring separate controller hardware/software and without a single point of failure
• Offers high-end security features that are not available on most 3rd party WiFi APs, including unique security certificate per device using SHA256 encryption and strong random default passwords per device
• Advanced QoS to ensure real-time performance of low-latency applications
• Efficient power saving through self power adaptation upon auto detection of PoE or PoE+ network

• Frequency Bands: 2.4GHz radio : 2.400 - 2.4835 GHz, 5GHz radio: 5.150 - 5.250 GHz, 5.725 - 5.850 GHz (FCC, IC, RCM)
• Channel Bandwidth: 2.4G: 20 and 40 MHz, 5G: 20,40 and 80 MHz
• WiFi and System Security: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES)
• MIMO: 3x3:3 2.4GHz, 3x3:3 5GHz
• Coverage Range: Up to 175 meters
• Antennas: 3x 2.4 GHz, gain 3 dBi, internal antenna, 3x 5 GHz, gain 3 dBi, internal antenna
• WiFi Standard: IEEE 802.11 a/b/g/n/ac
• WiFi Data Rates: IEEE 802.11ac: Up to 1300Mb/s, IEEE 802.11a: Up to 54Mb/s, IEEE 802.11n: Up to 450Mb/s, IEEE 802.11b: Up to 11Mb/s, IEEE 802.11g: Up to 54Mb/s
• Maximum TX Power: 5G: 26dBm (FCC) / 20dBm (CE), 2.4G: 26dBm (FCC) / 17dBm (CE)
• 2.4G Reciever Sensitivity: 802.11b:-92dBm@11Mbps; 802.11g:-76dBm@54Mbps; 802.11n 20MHz: -73dBm@MCS7; 802.11n 40MHz:-70dBm@MCS7
• 5G Reciever Sensitivity: 802.11a:-94dBm@6Mbps; 801.11a:-77dBm@54Mbps; 802.11ac 20MHz: -69dBm@MCS8; 802.11ac HT40:-65dBm@MCS9; 802.11ac 80MHz:-61dBm@MCS9
• SSIDs: 16 SSIDs per access point
• Concurrent Clients: 250+
• Network Interfaces: 2x autosensing 10/100/1000 Base-T Ethernet Ports

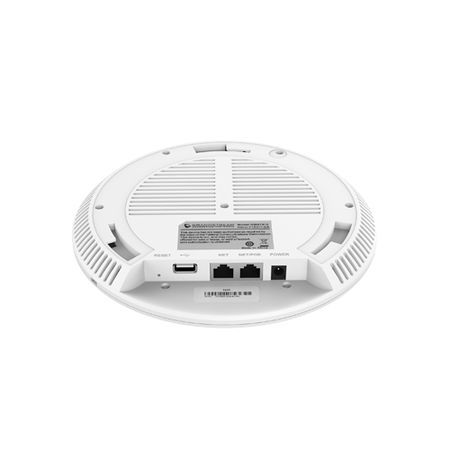

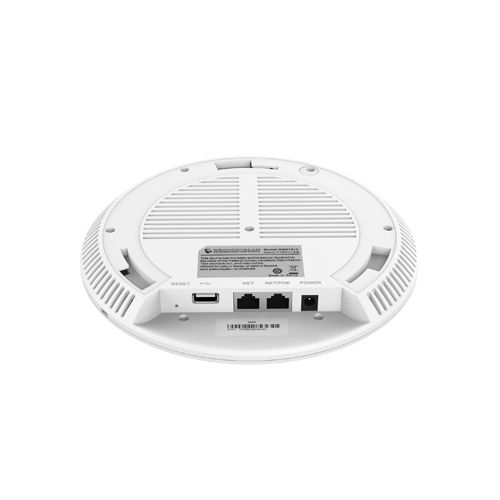

• Auxiliary Ports: 1x USB 2.0 port, 1x Reset Pinhole, 1x Kensington lock
• Mounting: Indoor wall mount or ceiling mount, kits included
• LEDs: 3 tri-color LEDs for device tracking and status indication
• Network Protocols: IPv4, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
• Quality of Service: 802.11e/WMM, VLAN, TOS
• Network Management: Embedded controller in GWN7610 allows it to auto-discover, auto-provision and manage up to 50 GWN7610s in a network
• Auto Power Saving: Self power adaptation upon auto detection of PoE or PoE+
• DC Power Input: 24VDC/1A
• Power over Ethernet: 802.3af/802.3at compliant
• Maximum Power Consumption: 13.8W
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Humidity: 10% to 90% Non-condensing
• Dimension (W x D x H): 205.3 x 205.3 x 45.9mm
• Weight: 540g

• GWN7610 802.11ac Wireless AP
• Mounting Kits
• Quick Start Guide
