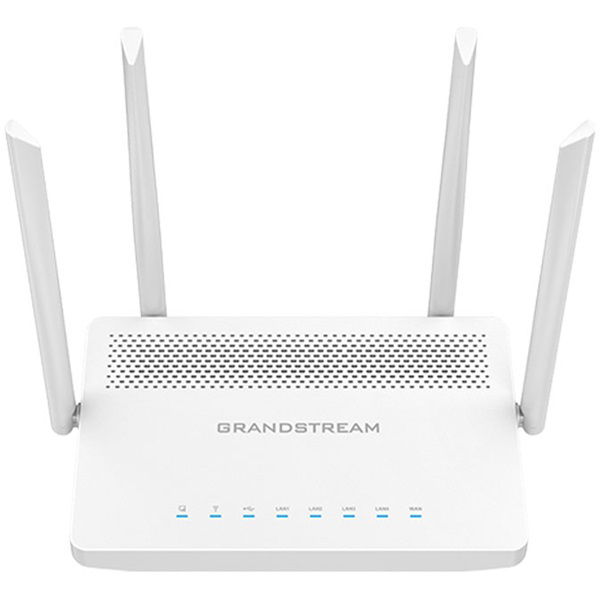

Grandstream GWN7052 Dual Band WiFi Router

The GWN7052 is a secure dual-band Wi-Fi router ideal for small offices, home offices and remote workers, supports wireless Mesh networking, wired AP connections and built in VPN support, ideal router for growing a home and small business network.

• 1.27Gbps aggregate wireless throughput with 5x auto-sensing Gigabit ports
• Dual-band 2x2:2 MU-MIMO
• Built-in VPN support allows easy access to corporate networks for remote employees
• Supports 100 concurrent Wi-Fi client devices
• Supports Mesh networking with Grandstream access points to provide easy network expansion
• Powerful security features include guest network, network blacklist, Antihacking secure boot & critical data/control lockdown via digital signatures, and more
• Rich firewall features including Anti-DoS, traffic rules, NAT and ALG
• Secure cloud provisioning through GWN.Cloud

Memory and NAT Sessions:

• 128MB RAM, 30K NAT sessions

NAT Routing & IPSec VPN Performance:

• 1Gbps NAT routing and 300Mbps IPSec VPN performance

Wi-Fi Standards:

• IEEE 802.11 a/b/g/n/ac

Antennas:

• 4 individual external antennas, 2 per band
• 2.4GHz, gain 5.0dBi
• 5 GHz, gain 5.0dB

Wi-Fi Data Rates: 5G:

• IEEE 802.11ac: 6.5 Mbps to 867 Mbps
• IEEE 802.11n: 6.5 Mbps to 300 Mbps
• IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Wi-Fi Data Rates: 2.4G:

• IEEE 802.11n: 6.5 Mbps to 300 Mbps
• IEEE 802.11b: 1, 2, 5.5, 11 Mbps
• IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Frequency Bands:

• 2.4GHz radio: 2400 – 2483.5MHz
• 5GHz radio: 5150 - 5850MHz

Channel Bandwidth:

• 2.4G: 20 and 40 MHz
• 5G: 20, 40 and 80 MHz

Wi-Fi and System Security:

• WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device

MIMO:

• 2×2:2 2.4GHz
• 2×2:2 5GHz

Maximum TX Power:

• 2.4G: 23dBm
• 5G: 24dBm

Receiver Sensitivity: 2.4G:

• 802.11b: -96dBm@1Mbps, -88dBm@11Mbps;
• 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
• 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7;

Receiver Sensitivity: 5G:

• 802.11a: -92dBm @6Mbps, -74dBm @54Mbps;
• 802.11n: 20MHz: -73dBm @MCS7; 802.11 n 40MHz: -70dBm @MCS7
• 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40: -63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9;

SSIDs:

• 16 SSIDs total, 8 per radio (2.4ghz and 5 ghz)

Concurrent Clients:

• Up to 100 concurrent clients

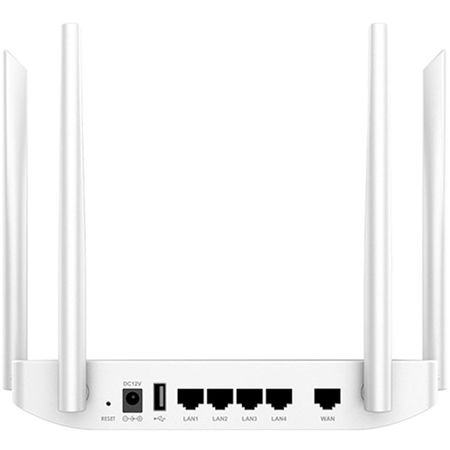

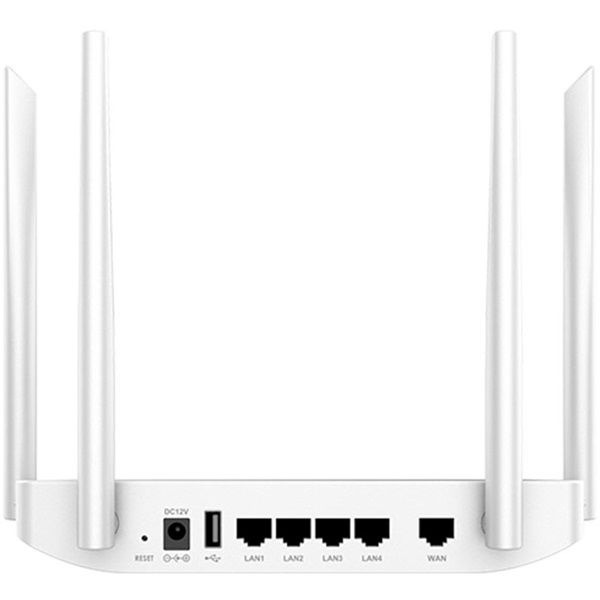

Network Interfaces:

• 1x Gigabit Ethernet WAN port and 4x Gigabit Ethernet

Auxiliary Ports:

• 1x USB 2.0 port, 1x Reset Pinhole

Mounting:

• Desktop and wall mounting

LEDs:

• 1 tri-color LED and 7x single-color LEDs for device tracking and status indication

Network Protocols:

• IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS:

• 802.11e/WMM, VLAN, TOS

Firewall:

• DDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, ALG

VPN:

• Client: L2TP, PPTP, IPSec,
• OpenVPN Server: IPSec, OpenVPN

Network Management:

• GWN7052 embedded controller can manage itself and up to 30 GWN APs; GWN.Cloud offers a free cloud management platform for unlimited - GWN7052 routers and GWN APs LAN ports

Power & Green Energy Efficiency:

• Universal power adaptor included:
• Input 100-240VAC 50-60Hz
• Output: 12VDC 1A (12W)

Environmental:

• Operation: 0°Cto 50°C
• Storage: -10°C to 60°C
• Humidity: 10% to 90% Non-condensing

Physical:

• Dimension without antennas (LxWxH): 205 x 130 x 35.5 mm
• Dimension with antennas of 90° (LxWxH): 235.5 x 145 x 192 mm
• Weight with antennas: 375g

Compliance:

• FCC, CE, RCM, IC, UKCA
