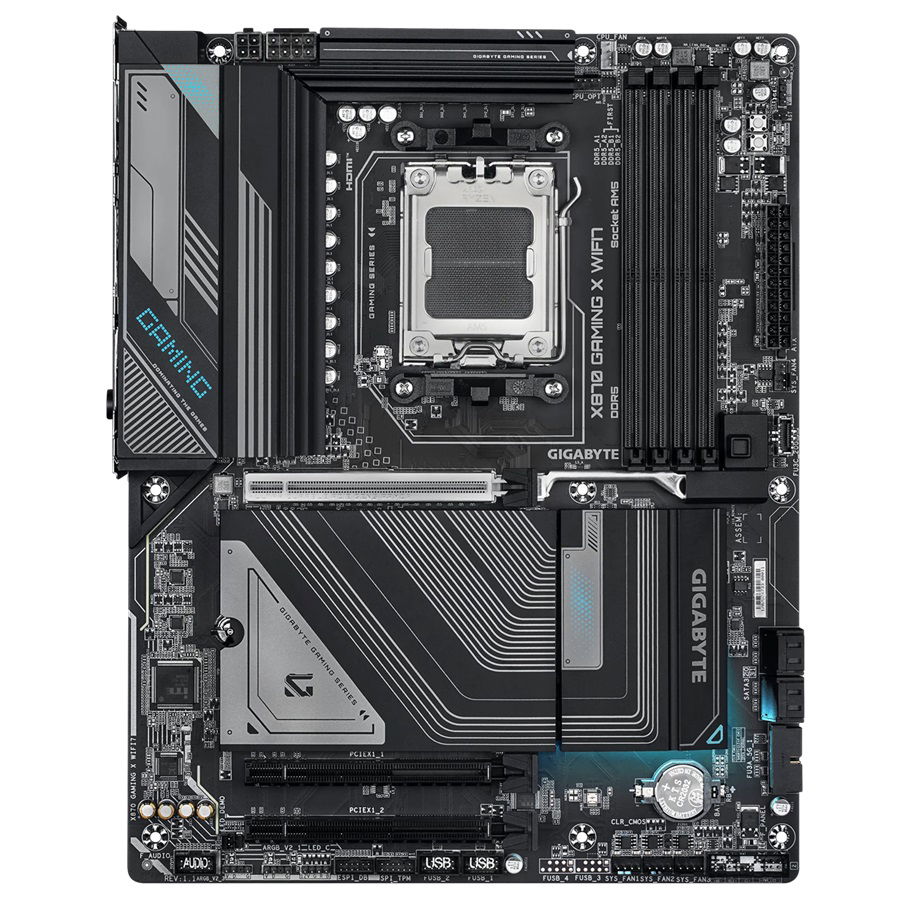

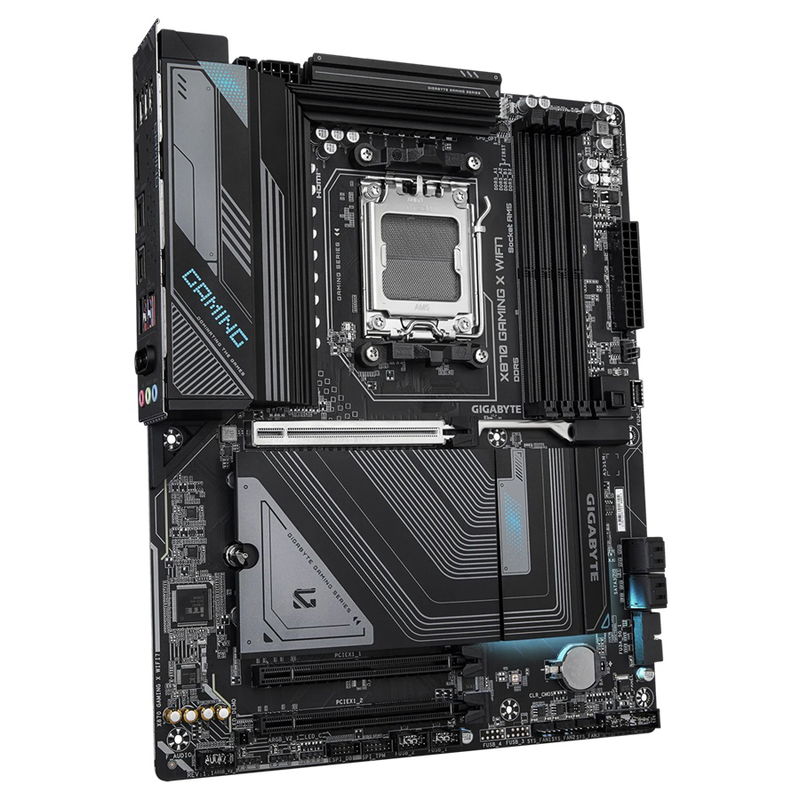

Gigabyte X870 Gaming X WiFi 7 AMD AM5 X870 ATX Gaming X Wi-Fi 7 Motherboard

GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.

AORUS AI SNATCH Bullet Point:
Unleash Ultimate Performance with One-Click Activation.

Dual 40Gbps USB4 with DP-Alt:
The dual latest USB4 Type-C ports provide blistering fast and reliable transfer speed up to 40 Gbps of each. Featuring extensive comparability, efficient charging, and ultra-HD displayport connectivity, USB4 is beneficial to video editing, large file transfers, and data-intensive tasks.

Wi-Fi 7 brings you the Ultimate VR experience:
Wi-Fi 7 transforms the VR landscape with its exceptional bandwidth and minimal latency, delivering an unparalleled, seamless immersive VR experience.

2.5GbE LAN:
Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

PCIe 5.0/4.0 Hardware Design:
Featuring PCIe 5.0 x16 slot and PCIe 5.0/4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 5.0/ 4.0 devices to provide the superior performance.

Easy Friendly:
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

CPU:

• AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors/AMD Ryzen 8000 Series Processors/AMD Ryzen 7000 Series Processors

Chipset:

• AMD X870

Memory:

• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture

Onboard Graphics:

• Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller: 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
• Integrated Graphics Processor with AMD Radeon Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Audio:

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

LAN:

• Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module:

• MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0): 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands; BLUETOOTH 5.4; Support for 11be 160MHz wireless standard
• Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1): 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands; BLUETOOTH 5.4; Support for 11be 160MHz wireless standard

Expansion Slots:

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode; AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode; AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
• Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

Storage Interface:

• 1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs; AMD Ryzen 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
• 1x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs
• 1x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
• 4x SATA 6Gb/s connectors

USB:

• CPU+ASMedia USB4 controller:2 x USB4 USB Type-C ports on the back panel
• CPU: 1x USB 3.2 Gen 2 Type-A port (red) on the back panel; 1x USB 3.2 Gen 1 port on the back panel
• CPU+USB 2.0 Hub: 4x USB 2.0/1.1 ports on the back panel
• Chipset: 1x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header; 4x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header); 4x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors:

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 1x CPU fan header
• 1x CPU fan/water cooling pump header
• 4x system fan headers
• 3x addressable RGB Gen2 LED strip headers
• 1x RGB LED strip header
• 4x SATA 6Gb/s connectors
• 3x M.2 Socket 3 connectors
• 1x front panel header
• 1x front panel audio header
• 1x USB Type-C header, with USB 3.2 Gen 2x2 support
• 1x USB 3.2 Gen 1 header
• 2x USB 2.0/1.1 headers
• 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1x power button
• 1x reset button
• 1x reset jumper
• 1x Clear CMOS jumper

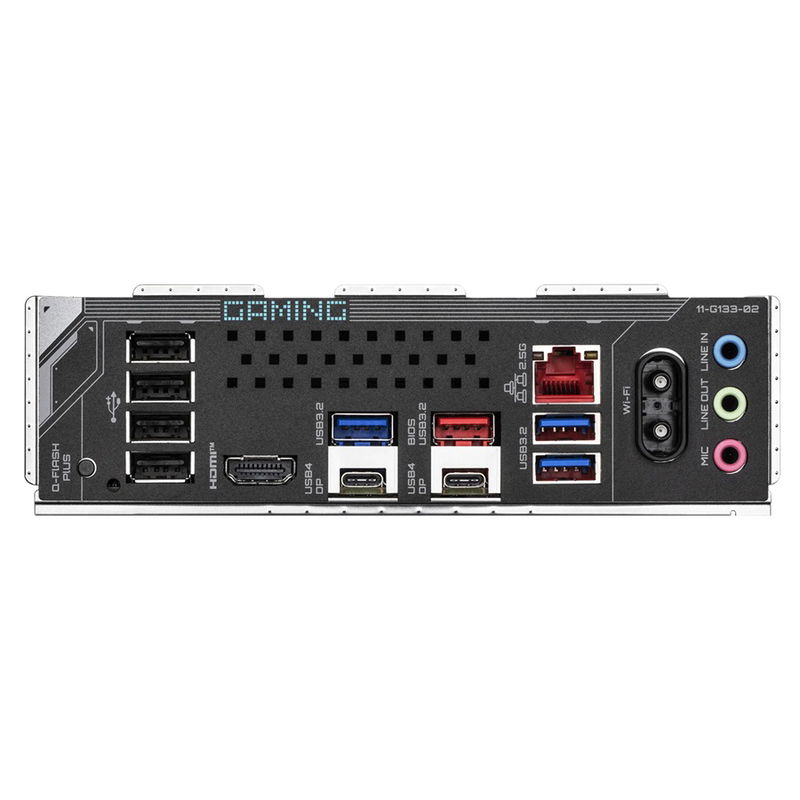

Back Panel Connectors:

• 1x Q-Flash Plus button
• 2x antenna connectors (2T2R)
• 1x HDMI port(Note)
• 2x USB4 USB Type-C ports (DisplayPort)
• 1x USB 3.2 Gen 2 Type-A port (red)
• 3x USB 3.2 Gen 1 ports
• 4x USB 2.0/1.1 ports
• 1x RJ-45 port
• 3x audio jacks

I/O Controller:

• iTE I/O Controller Chip

H/W Monitoring:

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Bundled Software:

• Norton Internet Security (OEM version)
• LAN bandwidth management software

Operating System:

• Support for Windows 11 64-bit

Form Factor:

• ATX Form Factor; 30.5cm x 24.4cm
