Product Description:

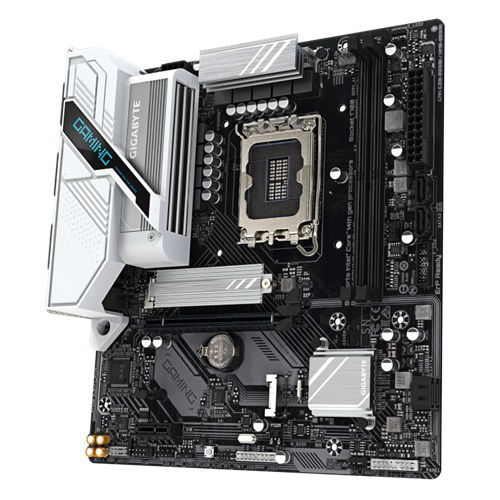

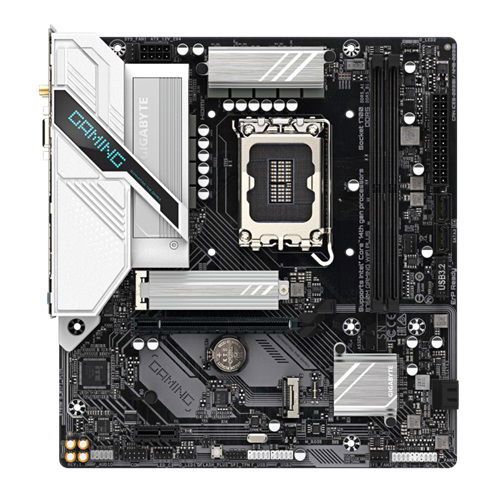

Gigabyte Intel LGA1700 B760M mATX Gaming, Wi-Fi Plus Motherboard
GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.
Features:
• Supports Intel Core 14th/ 13th /12th processors
• Unparalleled Performance: Hybrid 6+2+1 Phases Digital VRM Solution
• Dual Channel DDR5: 2*DIMMs XMP Memory Module Support
• Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
• EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design
• Fast Networks: 2.5GbE LAN & Wi-Fi 802.11ac
• Extended Connectivity: Rear USB-C 5Gb/s, DP, HDMI, D-Sub
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
• Unparalleled Performance: Hybrid 6+2+1 Phases Digital VRM Solution
• Dual Channel DDR5: 2*DIMMs XMP Memory Module Support
• Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
• EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design
• Fast Networks: 2.5GbE LAN & Wi-Fi 802.11ac
• Extended Connectivity: Rear USB-C 5Gb/s, DP, HDMI, D-Sub
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Specifications:
CPU:
• LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Chipset:
• Intel B760 Express Chipset
Memory:
• 14th and 13th Generation Intel Core i9/i7 Processors
• 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
Onboard Graphics: Integrated Graphics Processor-Intel HD Graphics support:
• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Audio:
• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
LAN:
• Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module:
• Intel Wireless-AC 9560
• WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
• BLUETOOTH 5.1
• Support for 11ac 160MHz wireless standard
Expansion Slots:
• CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
• Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface:
• CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
• Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB); 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB: Chipset:
• 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
• 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
• 2 x USB 2.0/1.1 ports on the back panel
USB: Chipset+USB 2.0 Hub:
• 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors:
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 3 x system fan headers
• 2 x addressable LED strip headers
• 1 x RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1 x serial port header
• 1 x Q-Flash Plus button
• 1 x reset jumper
• 1 x Clear CMOS jumper

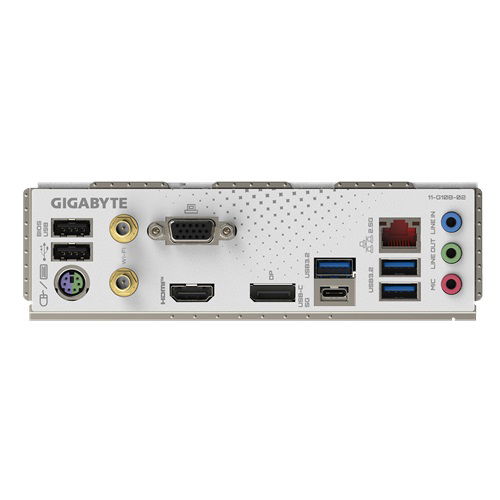

Back Panel Connectors:
• 2 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse port
• 2 x SMA antenna connectors (1T1R) / (2T2R)
• 1 x D-Sub port
• 1 x HDMI port
I/O Controller:
• iTE I/O Controller Chip
H/W Monitoring:
• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
BIOS:
• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Bundled Software:
• Norton Internet Security (OEM version)
• LAN bandwidth management software
Operating System:
• Support for Windows 11 64-bit
• Support for Windows 10 64-bit
Form Factor:
• Micro ATX Form Factor; 24.4cm x 22.5cm
• LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Chipset:
• Intel B760 Express Chipset
Memory:
• 14th and 13th Generation Intel Core i9/i7 Processors
• 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
Onboard Graphics: Integrated Graphics Processor-Intel HD Graphics support:
• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Audio:
• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
LAN:
• Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module:
• Intel Wireless-AC 9560
• WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
• BLUETOOTH 5.1
• Support for 11ac 160MHz wireless standard
Expansion Slots:
• CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
• Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface:
• CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
• Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB); 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB: Chipset:
• 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
• 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
• 2 x USB 2.0/1.1 ports on the back panel
USB: Chipset+USB 2.0 Hub:
• 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors:
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 3 x system fan headers
• 2 x addressable LED strip headers
• 1 x RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1 x serial port header
• 1 x Q-Flash Plus button
• 1 x reset jumper
• 1 x Clear CMOS jumper
Back Panel Connectors:
• 2 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse port
• 2 x SMA antenna connectors (1T1R) / (2T2R)
• 1 x D-Sub port
• 1 x HDMI port
I/O Controller:
• iTE I/O Controller Chip
H/W Monitoring:
• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
BIOS:
• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Bundled Software:
• Norton Internet Security (OEM version)
• LAN bandwidth management software
Operating System:
• Support for Windows 11 64-bit
• Support for Windows 10 64-bit
Form Factor:
• Micro ATX Form Factor; 24.4cm x 22.5cm
We are an Authorised Reseller of Gigabyte Computer Hardware.
Additional Details:
-
Stock Availability: Out of Stock!
-
Warranty: Supported by Manufacturer
-
Manufacturer: Gigabyte Shop
-
Product Found In: Motherboards
-
Model Number: B760M G WIFI PLUS 1.1
-
Part Number: SY014763
