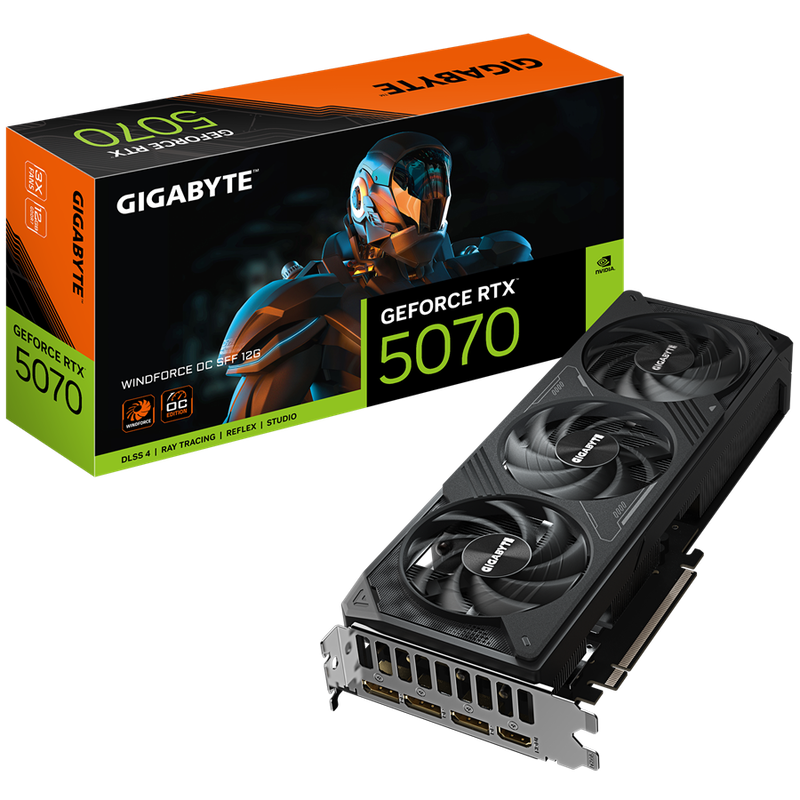

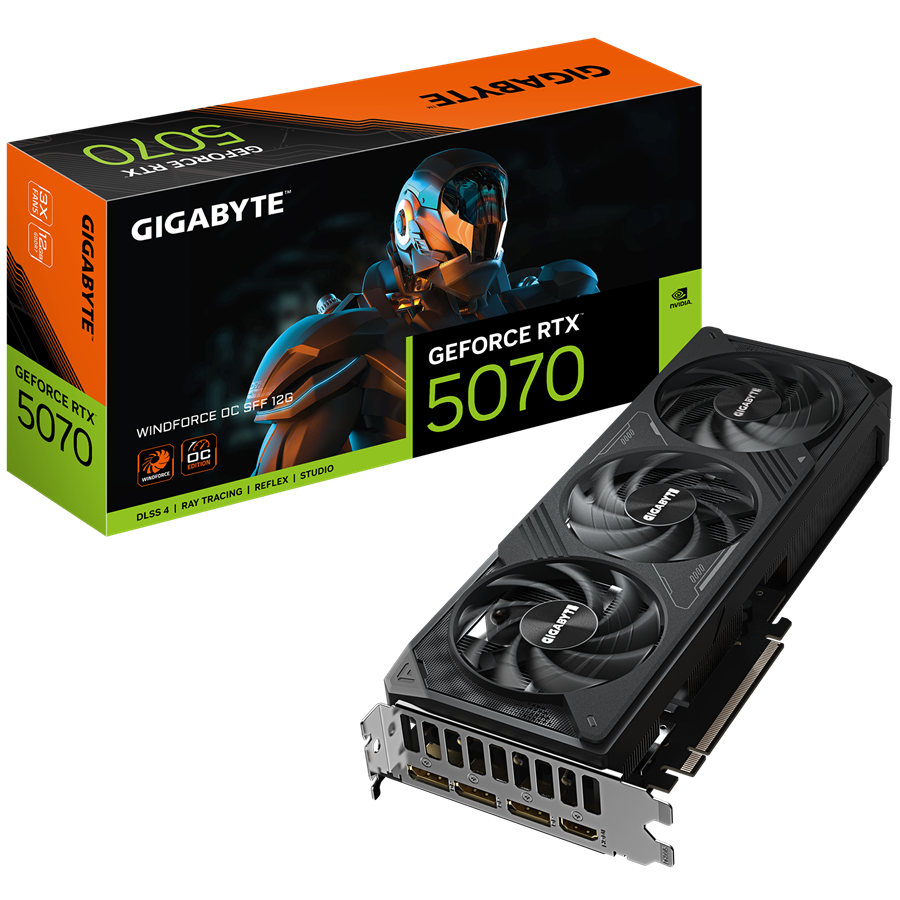

Gigabyte GeForce RTX 5070 WINDFORCE OC SFF 12G 12GB GDDR7 NVIDIA Graphics Card - DisplayPort, HDMI

Powered by the NVIDIA Blackwell architecture and DLSS 4 and GeForce RTX 5070. Integrated with 12GB GDDR7 192bit memory interface, WINDFORCE cooling system, reinforced structure and is NVIDIA SFF-ready.

NVIDIA Blackwell Architecture:
The ultimate platform for gamers and creators with fifth-gen tensor cores, new streaming multiprocessors and fourth-gen ray tracing cores.

WINDFORCE Colling System:

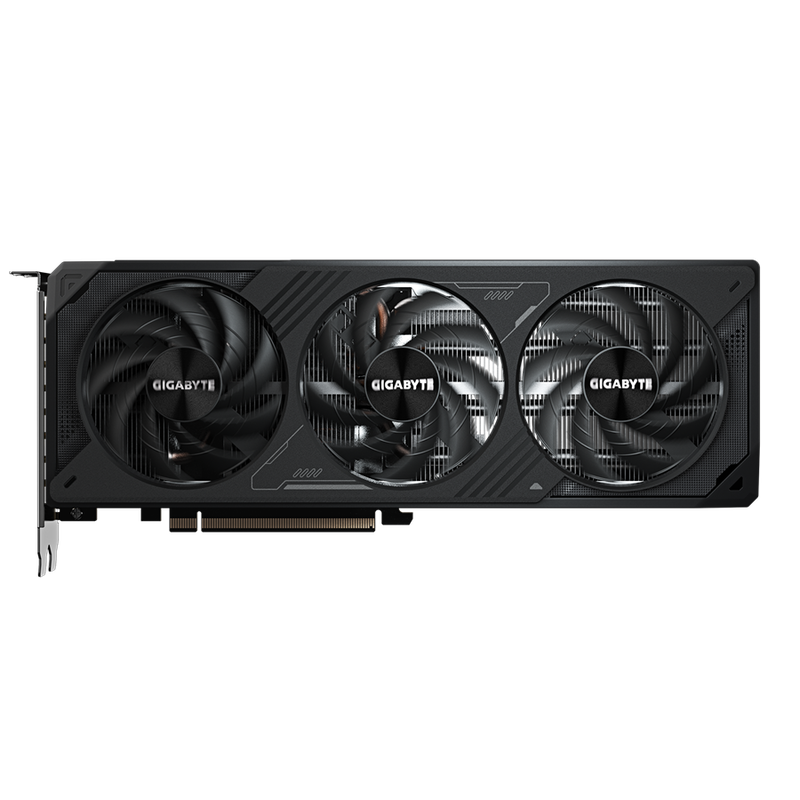

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.

NVIDIA SFF-Ready:
Complying with NVIDIA's small form factor specification, our graphics cards pack powerful performance into a small form factor, achieving the perfect balance of size and power.

Reinforced Structure:

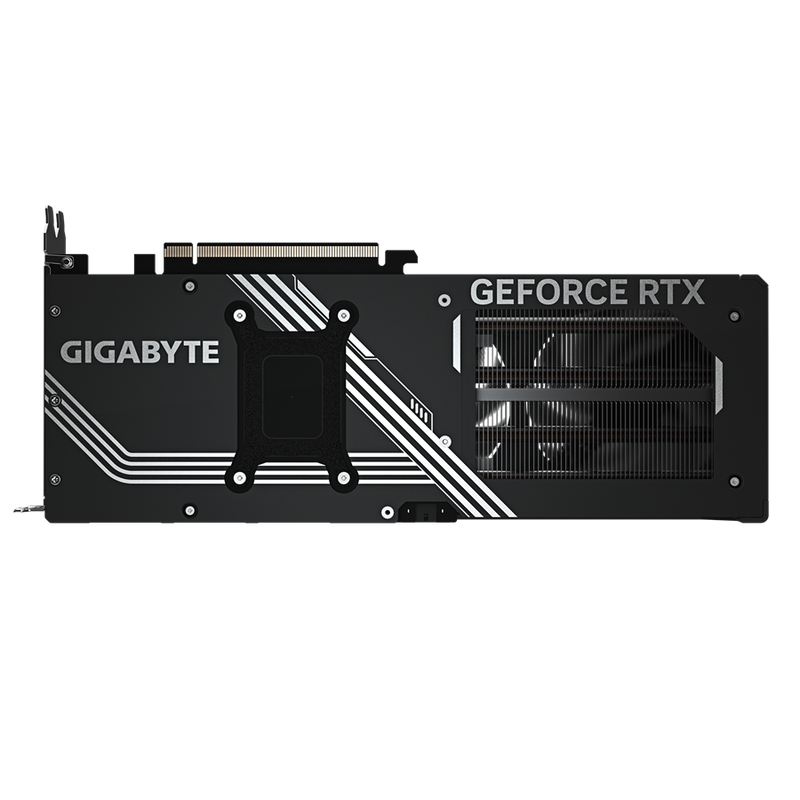

The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

Friendly PCB Design:
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

• Graphics Processing: GeForce RTX 5070
• Core Clock: 2542 MHz (Reference card : 2512 MHz)
• CUDA Cores: 6144
• Memory Clock: 28 Gbps
• Memory Size: 12 GB
• Memory Type: GDDR7
• Memory Bus: 192 bit
• Card Bus: PCI-E 5.0
• Digital max resolution: 7680x4320
• Multi-view: 4
• Card size (L x W x H): 282 x 110 x 50 mm
• PCB For: ATX
• DirectX: DirectX 12 API
• OpenGL: 4.6
• Recommended PSU: 750W
• Power Connectors: 16 Pin x 1
• Output: DisplayPort 2.1b x 3, HDMI 2.1b x 1

• GV-N5070WF3OC-12GD Graphics Card
• Quick guide
• 1x 12V-2x6 to 2x PCIe 8pin adapter
