Product Description:

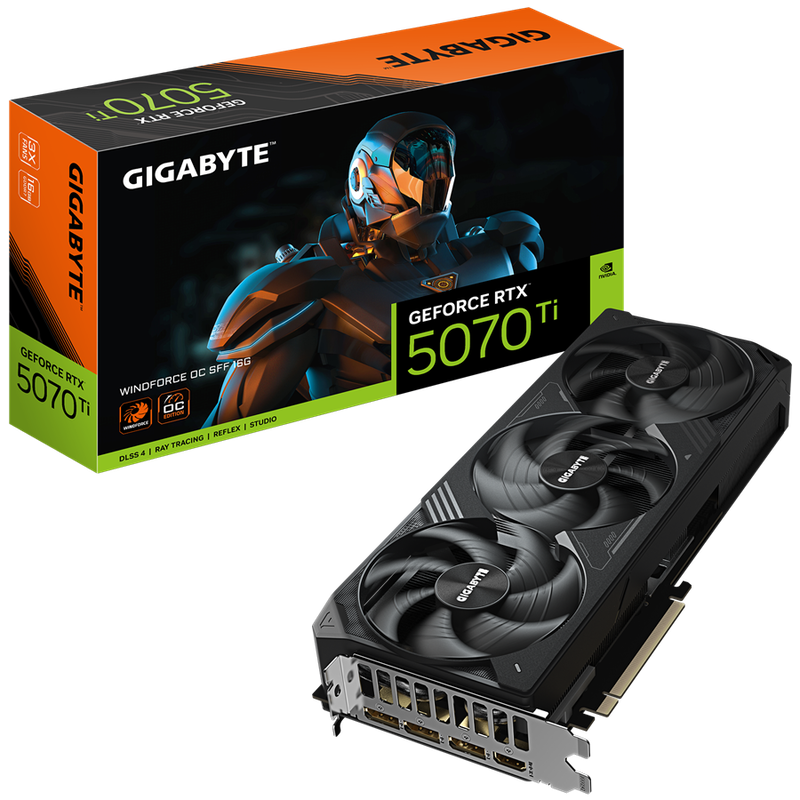

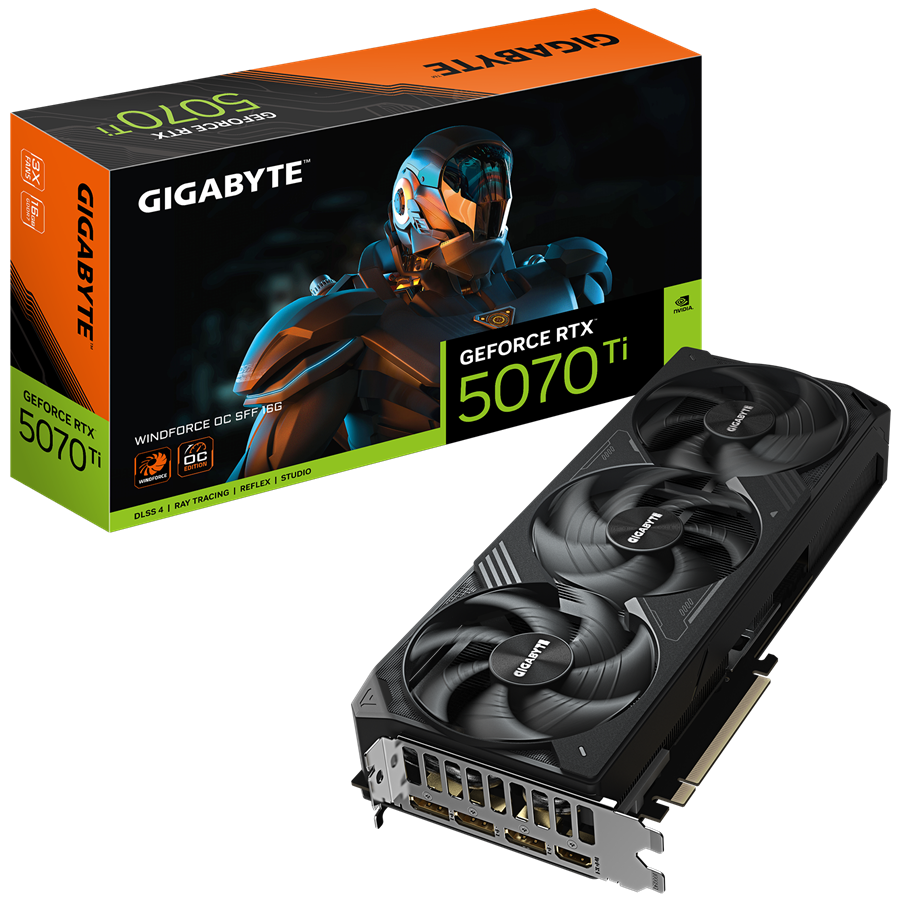

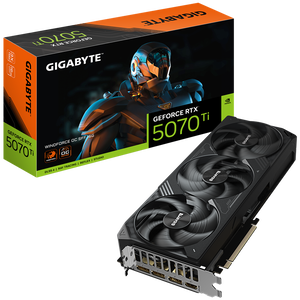

Gigabyte GeForce RTX 5070 Ti WINDFORCE OC SFF 16G 16GB GDDR7 NVIDIA Graphics Card - DisplayPort, HDMI
Powered by the NVIDIA Blackwell architecture and DLSS 4 and GeForce RTX 5070 Ti. Integrated with 16GB GDDR7 256bit memory interface, WINDFORCE cooling system and dual BIOS.
Features:
NVIDIA Blackwell Architecture:
The ultimate platform for gamers and creators with fifth-gen tensor cores, new streaming multiprocessors and fourth-gen ray tracing cores.

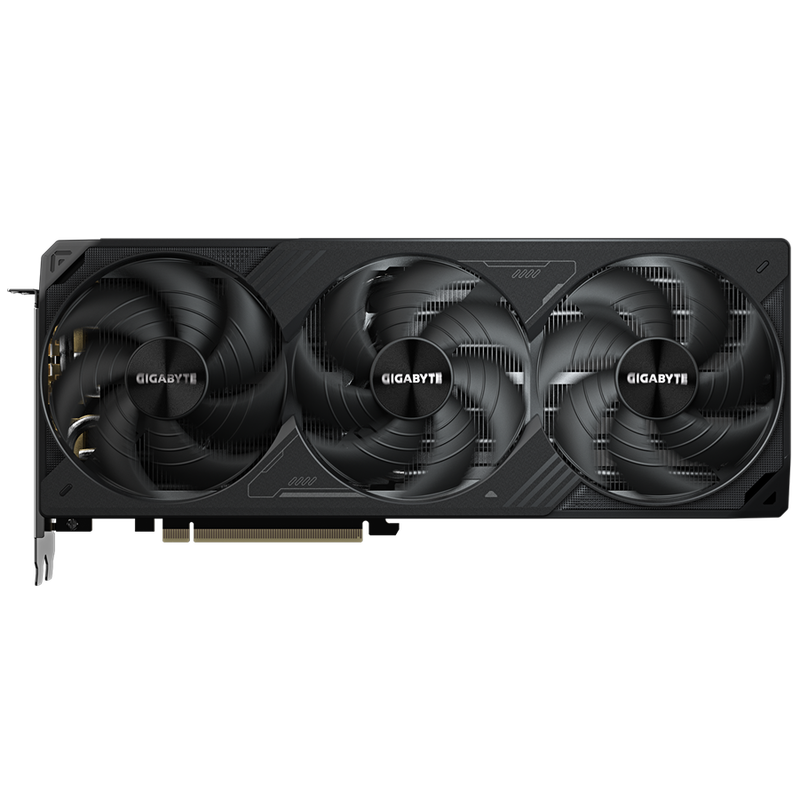

WINDFORCE Cooling System:
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.
Server-Grade Thermal Conductive Gel:
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
Large Copper Plate & Composite Copper Heat Pipe:
The large copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
DUAL BIOS (Performance / Silent):
The factory default setting is Performance mode, which provides users with the best performance. However, switching to Silent mode will enjoy a quieter experience.
NVIDIA SFF-Ready:
Complying with NVIDIA's small form factor specification, our graphics cards pack powerful performance into a small form factor, achieving the perfect balance of size and power.

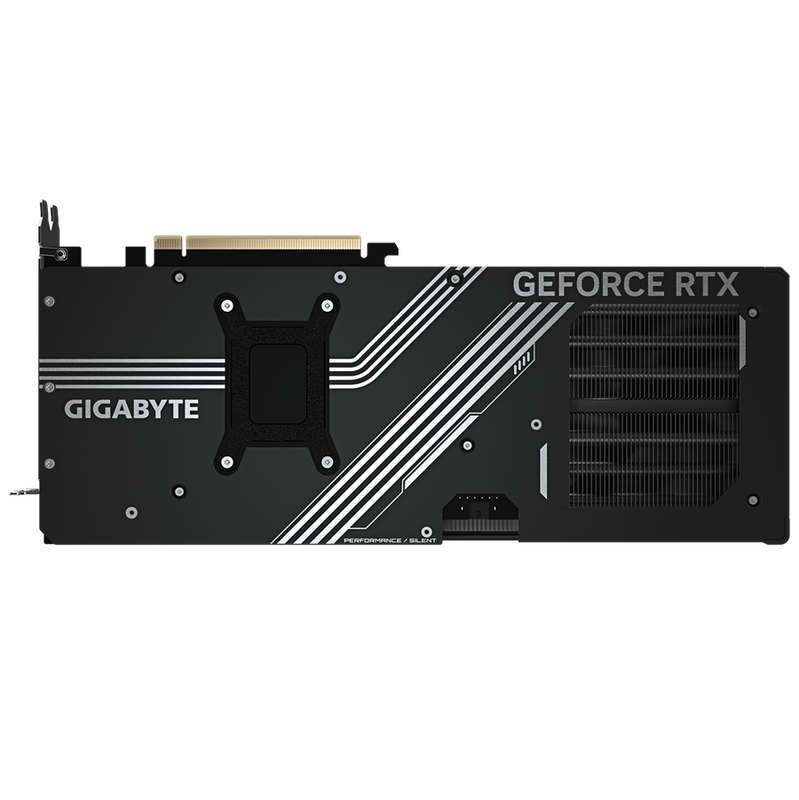

Reinforced Structure:
The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
The ultimate platform for gamers and creators with fifth-gen tensor cores, new streaming multiprocessors and fourth-gen ray tracing cores.
WINDFORCE Cooling System:
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.
Server-Grade Thermal Conductive Gel:
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
Large Copper Plate & Composite Copper Heat Pipe:
The large copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
DUAL BIOS (Performance / Silent):
The factory default setting is Performance mode, which provides users with the best performance. However, switching to Silent mode will enjoy a quieter experience.
NVIDIA SFF-Ready:
Complying with NVIDIA's small form factor specification, our graphics cards pack powerful performance into a small form factor, achieving the perfect balance of size and power.
Reinforced Structure:
The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
Specifications:
• Graphics Processing: GeForce RTX 5070 Ti
• Core Clock: 2497 MHz (Reference: 2452 MHz)
• CUDA Cores: 8960
• Memory Clock: 28 Gbps
• Memory Size: 16GB
• Memory Type: GDDR7
• Memory Bus: 256 bit
• Card Bus: PCI-E 5.0
• Digital max resolution: 7680 x 4320
• Multi-view: 4
• PCB Form: ATX
• DirectX: DirectX 12 API
• OpenGL: OpenGL 4.6
• Recommended PSU: 750W
• Power Connectors: 16 pin x1
• Output: DisplayPort 2.1b x3, HDMI 2.1b x1
• Card size (L x W x H): 304 x 126 x 50 mm
• Core Clock: 2497 MHz (Reference: 2452 MHz)
• CUDA Cores: 8960
• Memory Clock: 28 Gbps
• Memory Size: 16GB
• Memory Type: GDDR7
• Memory Bus: 256 bit
• Card Bus: PCI-E 5.0
• Digital max resolution: 7680 x 4320
• Multi-view: 4
• PCB Form: ATX
• DirectX: DirectX 12 API
• OpenGL: OpenGL 4.6
• Recommended PSU: 750W
• Power Connectors: 16 pin x1
• Output: DisplayPort 2.1b x3, HDMI 2.1b x1
• Card size (L x W x H): 304 x 126 x 50 mm
Package Contents:
• Gigabyte GV-N5070TiWF3 OC-16GD
• VGA manual
• 1x 12V-2x6 to 2x PCIe 8pin adapter
• Versatile VGA holder
• Versatile VGA holder manual
• VGA manual
• 1x 12V-2x6 to 2x PCIe 8pin adapter
• Versatile VGA holder
• Versatile VGA holder manual
We are an Authorised Reseller of Gigabyte Computer Hardware.
Additional Details:
-
Stock Availability: 5 In Stock Now
-
Warranty: 3 Years
-
Manufacturer:
Gigabyte Shop
-
Product Found In: Graphics Cards
-
Model Number: GV-N507TWF3OC-16GD
-
Part Number: SY014995
