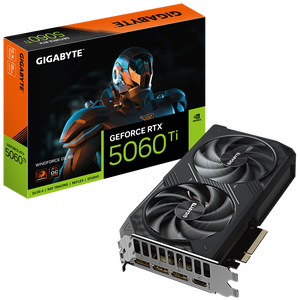

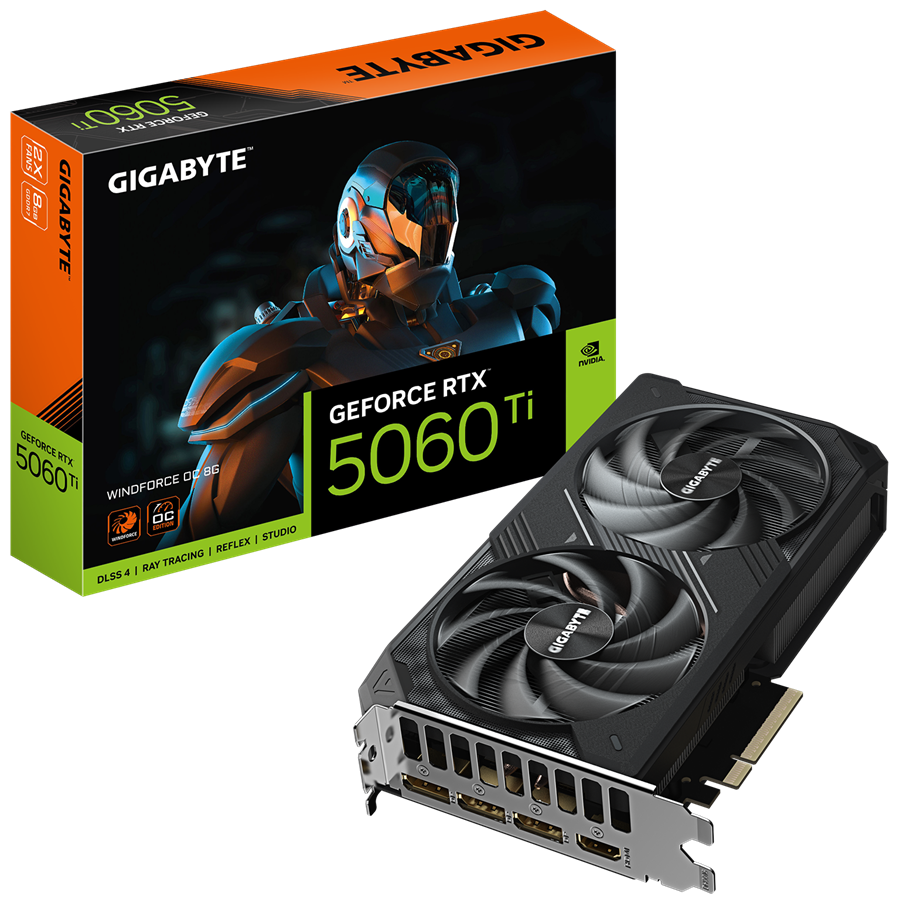

Gigabyte GeForce RTX 5060 Ti WINDFORCE OC 8G 8GB GDDR7 NVIDIA Graphics Card - DisplayPort, HDMI

Powered by the NVIDIA Blackwell architecture and DLSS 4 and GeForce RTX 5060 Ti. Integrated with 8GB GDDR7 128bit memory interface, WINDFORCE cooling system and reinforced structure.

NVIDIA Blackwell Architecture:
The ultimate platform for gamers and creators with fifth-gen tensor cores, new streaming multiprocessors and fourth-gen ray tracing cores.

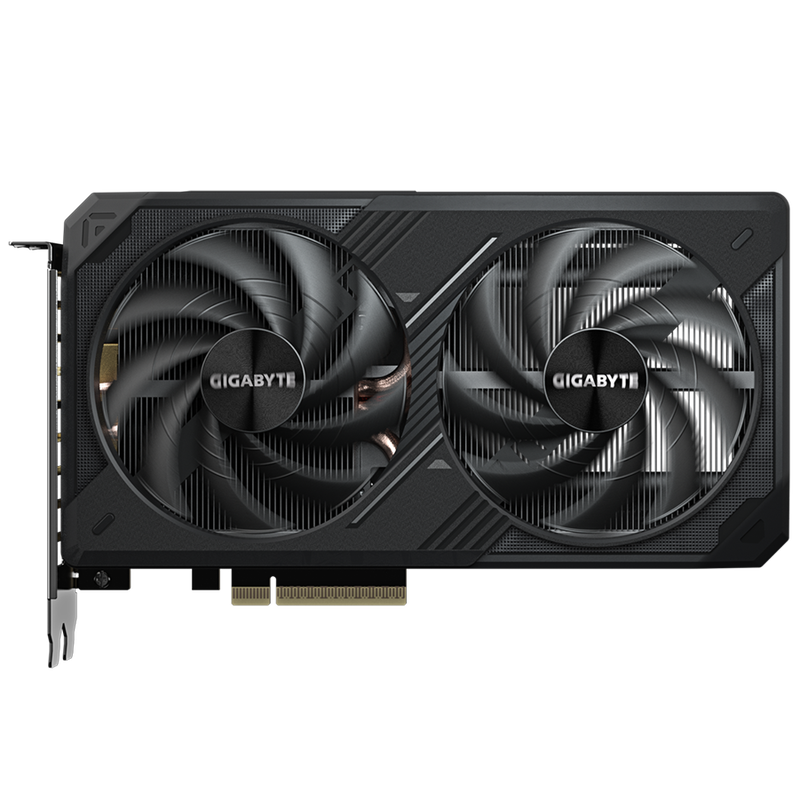

WINDFORCE Cooling System:
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.

Graphene Nano Lubricant:
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

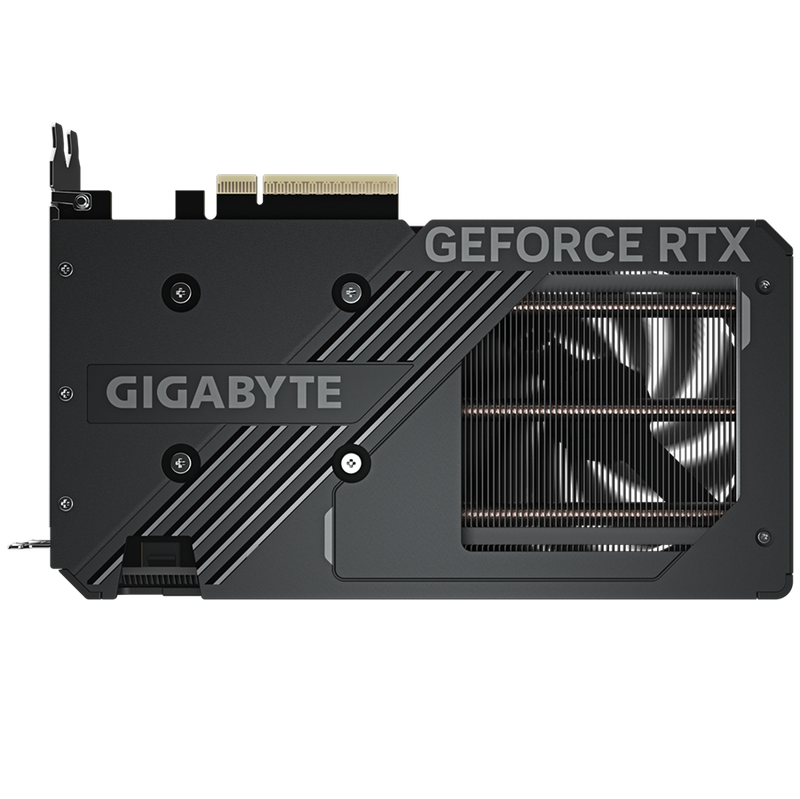

Reinforced Structure:
The reinforced backplate securely fastened to the I/O bracket, provides exceptional structural integrity.

Friendly PCB Design:
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

• Graphics Processing: GeForce RTX 5060 Ti
• Core Clock: 2587 MHz (Reference card :2572 MHz)
• CUDA Cores: 4608
• Memory Clock: 28 Gbps
• Memory Size: 8 GB
• Memory Type: GDDR7
• Memory Bus: 128 bit
• Card Bus: PCI-E 5.0
• Digital max resolution: 7680x4320
• Multi-view: 4
• Card size (L x W x H): 208 x 120 x 40 mm
• PCB Form: ATX
• DirectX: DirectX 12 API
• OpenGL: 4.6
• Recommended PSU: 650W
• Power Connectors: 8 Pin x 1
• Output: DisplayPort 2.1b x 3, HDMI 2.1b x 1

• GV-N506TWF2OC-8GD Graphics Card
• Quick guide
