Product Description:
Gigabyte GeForce RTX 5060 Ti WINDFORCE 8G 8GB GDDR7 NVIDIA Graphics Card - DisplayPort, HDMI
Powered by the NVIDIA Blackwell architecture and DLSS 4 and GeForce RTX 5060 Ti. Integrated with 8GB GDDR7 128bit memory interface, WINDFORCE cooling system and reinforced structure.
Features:
NVIDIA Blackwell Architecture:
The ultimate platform for gamers and creators with fifth-gen tensor cores, new streaming multiprocessors and fourth-gen ray tracing cores.

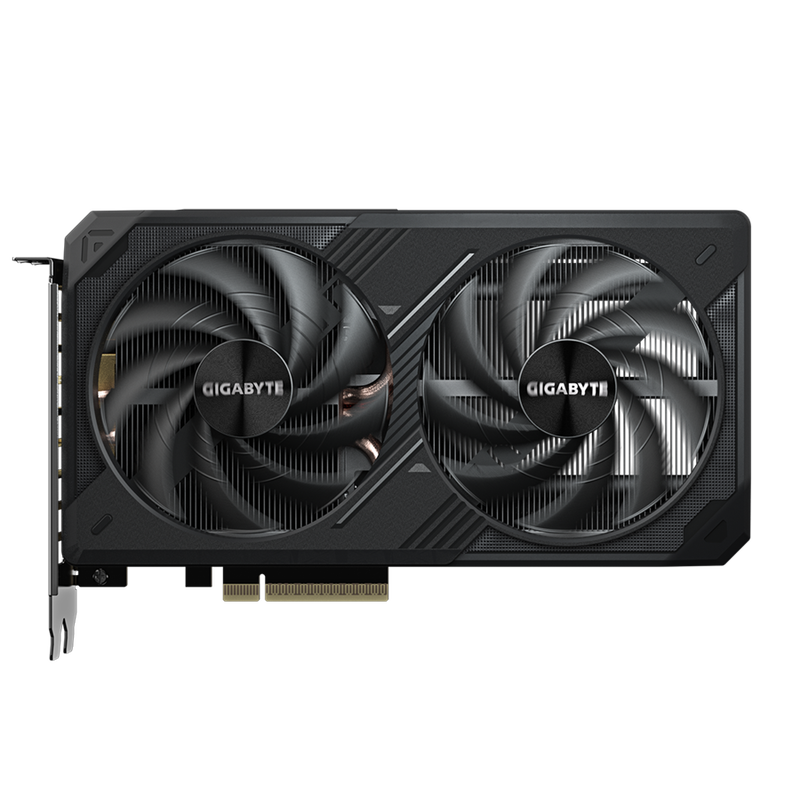

WINDFORCE Cooling System:
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.
Server-Grade Thermal Conductive Gel:
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
Copper Plate & Composite Copper Heat Pipe:
The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
Screen Cooling:
Extended heatsink allows air to pass through, providing better heat dissipation.
Reinforced Structure:

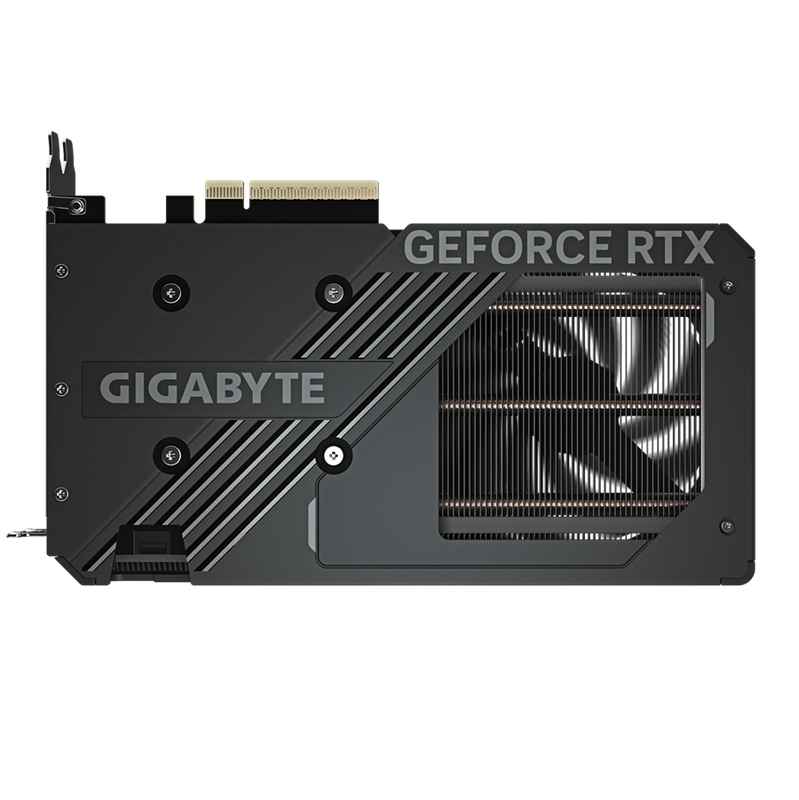

The reinforced backplate securely fastened to the I/O bracket, provides exceptional structural integrity.
The ultimate platform for gamers and creators with fifth-gen tensor cores, new streaming multiprocessors and fourth-gen ray tracing cores.
WINDFORCE Cooling System:
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.
Server-Grade Thermal Conductive Gel:
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
Copper Plate & Composite Copper Heat Pipe:
The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
Screen Cooling:
Extended heatsink allows air to pass through, providing better heat dissipation.
Reinforced Structure:
The reinforced backplate securely fastened to the I/O bracket, provides exceptional structural integrity.
Specifications:
• Graphics Processing: GeForce RTX 5060 Ti
• Core Clock: 2572 MHz
• CUDA Cores: 4608
• Memory Clock: 28 Gbps
• Memory Size: 8 GB
• Memory Type: GDDR7
• Memory Bus: 128 bit
• Card Bus: PCI-E 5.0
• Digital max resolution: 7680x4320
• Multi-view: 4
• Card size (L x W X H): 208 x 120 x 40 mm
• PCB Form: ATX
• DirectX: DirectX 12 API
• OpenGL: 4.6
• Recommended PSU: 650W
• Power Connectors: 8 Pin x 1
• Output: DisplayPort 2.1b x 3, HDMI 2.1b x 1
• Core Clock: 2572 MHz
• CUDA Cores: 4608
• Memory Clock: 28 Gbps
• Memory Size: 8 GB
• Memory Type: GDDR7
• Memory Bus: 128 bit
• Card Bus: PCI-E 5.0
• Digital max resolution: 7680x4320
• Multi-view: 4
• Card size (L x W X H): 208 x 120 x 40 mm
• PCB Form: ATX
• DirectX: DirectX 12 API
• OpenGL: 4.6
• Recommended PSU: 650W
• Power Connectors: 8 Pin x 1
• Output: DisplayPort 2.1b x 3, HDMI 2.1b x 1
Package Contents:
• GV-N506TWF2-8GD Graphics Card
• Quick guide
• Quick guide
We are an Authorised Reseller of Gigabyte Computer Hardware.
Additional Details:
-
Stock Availability: 1 In Stock Now
-
Warranty: 3 Years
-
Manufacturer:
Gigabyte Shop
-
Product Found In: Graphics Cards
-
Model Number: GV-N506TWF2-8GD
-
Part Number: SY015019
