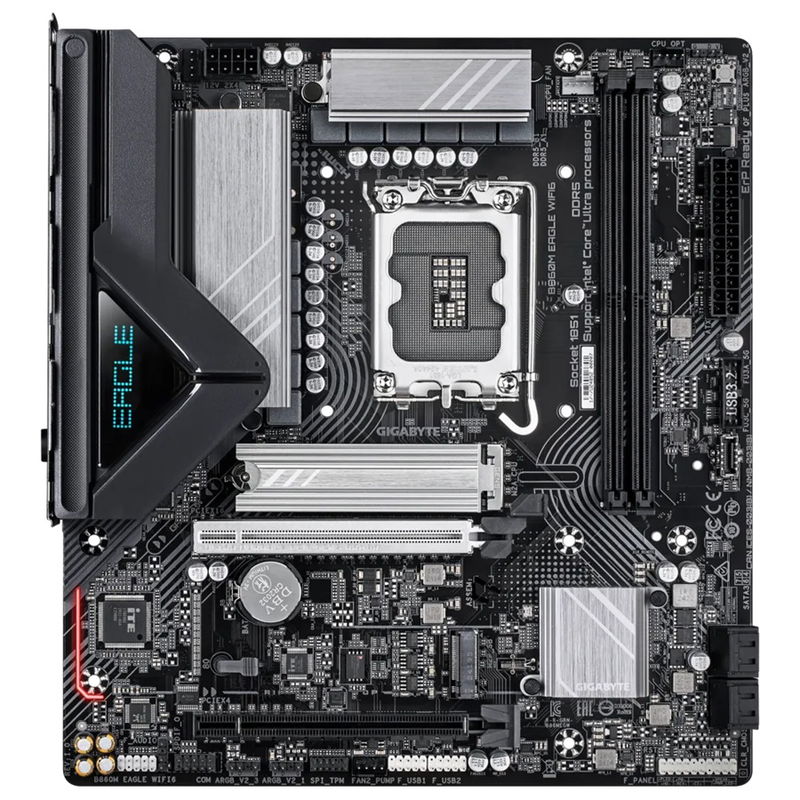

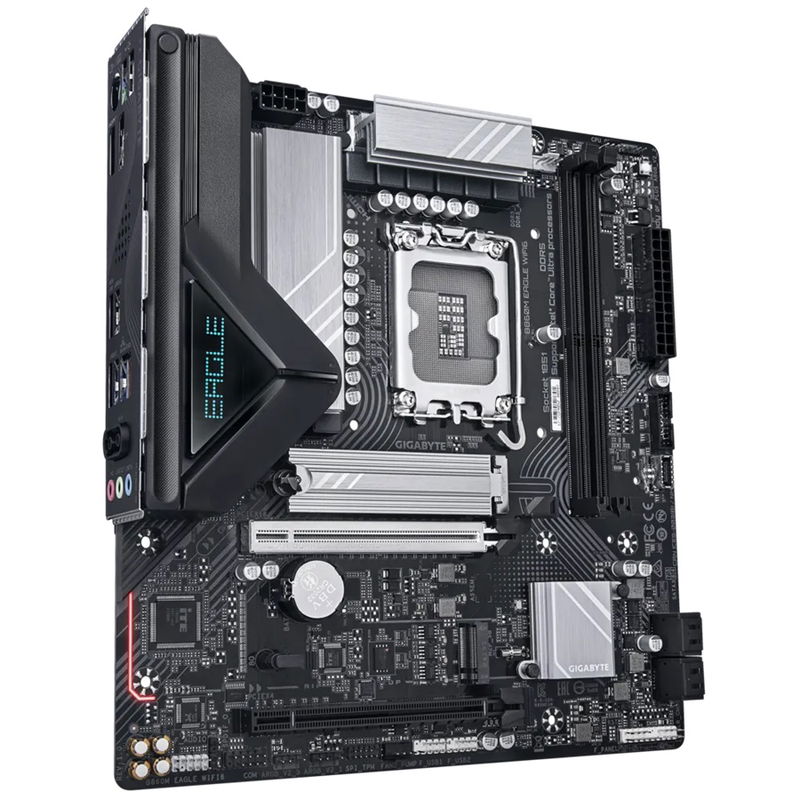

Gigabyte B860M EAGLE Intel LGA1851 mATX Gaming Wi-Fi Motherboard

EAGLE motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Steady Power:
Better Play EAGLE Series, steady power keeps your computing smooth.

Comprehensive Thermal:
EAGLE motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

Hassle-free Assembly:
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.

All-round Connectivity:
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

Born from Ultra Durable:
Technology embodies our commitment to excellence, providing users with a platform that's not only powerful but also built for longevity and reliability. EAGLE series motherboards are engineered to endure and excel.

Collaborative Excellence in Computing:
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.

CPU:

• LGA1851 socket: Support for Intel Core Ultra Processors
• L3 cache varies with CPU

Chipset:

• Intel B860 Express Chipset

Memory:

• Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
• 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture

Onboard Graphics: Integrated Graphics Processor-Intel HD Graphics support:

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

Audio:

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

LAN:

• Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module: Realtek Wi-Fi 6 RTL8851BE:

• WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 80MHz wireless standard

Expansion Slots:

• CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
• Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Storage Interface:

• CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
• Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB); 4 x SATA 6Gb/s connectors

USB:

• Chipset: 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header; 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header); 3 x USB 2.0/1.1 ports on the back panel
• Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 1 x system fan header
• 1 x system fan/water cooling pump header
• 3 x addressable RGB Gen2 LED strip headers
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB Type-C header, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
• 1 x serial port header
• 1 x Q-Flash Plus button
• 1 x reset jumper
• 1 x Clear CMOS jumper

Back Panel Connectors:

• 1 x PS/2 keyboard/mouse port
• 1 x HDMI port
• 1 x DisplayPort
• 3 x USB 3.2 Gen 1 ports
• 3 x USB 2.0/1.1 ports
• 2 x antenna connectors (2T2R)
• 1 x RJ-45 port
• 3 x audio jacks

I/O Controller:

• iTE I/O Controller Chip

H/W Monitoring:

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Bundled Software:

• Norton Internet Security (OEM version)
• LAN bandwidth management software

Operating System:

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

Form Factor:

• Micro ATX Form Factor; 24.4cm x 22.5cm
