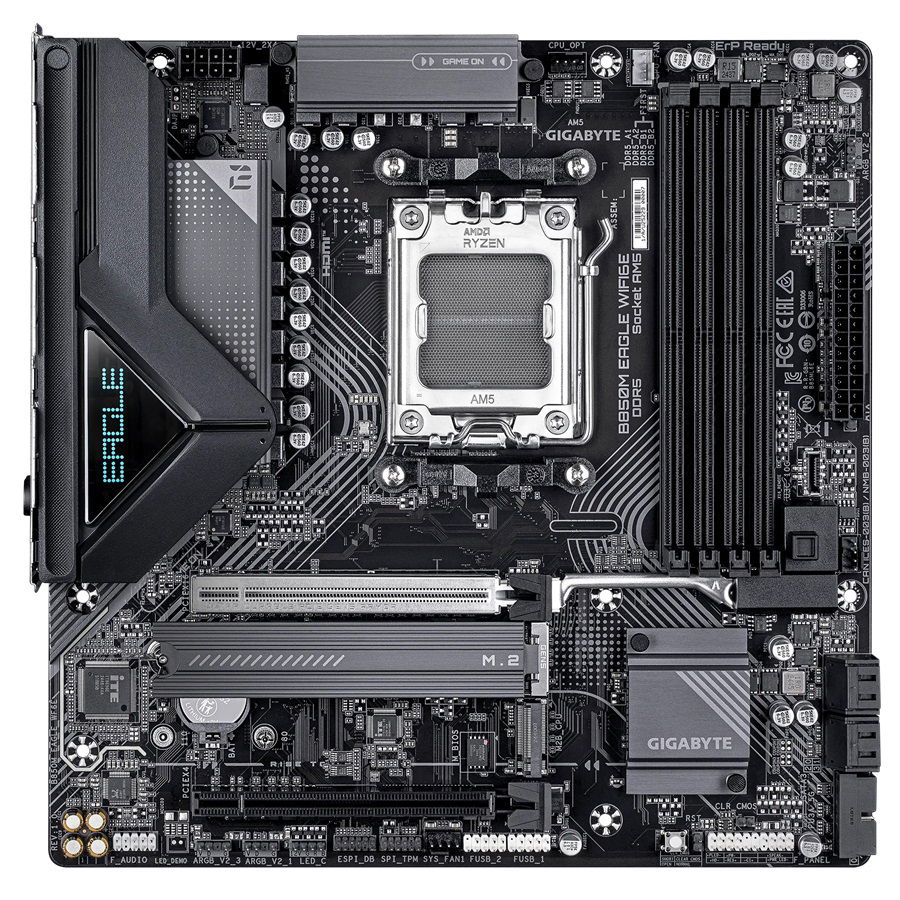

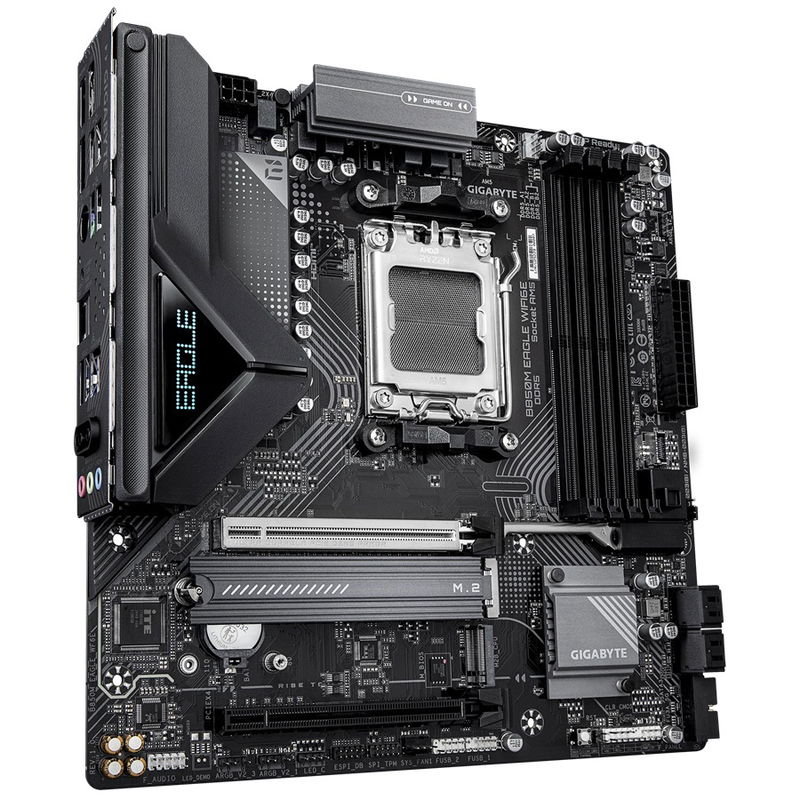

Gigabyte B850M Eagle AMD AM5 B850 mATX WiFi 6E Motherboard

X3D Turbo Mode's unique optimization parameters allow even Ryzen 9000 X3D gaming Performance enhance & Ryzen 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE's BIOS innovation- X3D Turbo Mode.

Infinite Memory Performance:
EAGLE motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Steady Power:
Eagle Series with steady power keeps your AI operation smooth.

Comprehensive Thermal:
Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

Hassle-free Assembly:
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.

All-round Connectivity:
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

Born from Ultra Durable:
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. GAMING series motherboards are engineered to endure and excel.

Collaborative Excellence in Computing:
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.

CPU:

• AMD Socket AM5

Chipset:

• AMD B850

Memory:

• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture

Onboard Graphics: Integrated Graphics Processor with AMD Radeon Graphics support:

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz

Audio:

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

LAN:

• Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module: Realtek Wi-Fi 6E RTL8852CE:

• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3

Expansion Slots:

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode; AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode; AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
• Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

Storage Interface:

• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs, AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
• 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB:

• CPU: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• CPU+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel
• Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header, 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header), 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 1 x system fan header
• 1 x system fan/water cooling pump header
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 4 x SATA 6Gb/s connectors
• 2 x M.2 Socket 3 connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C header, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper

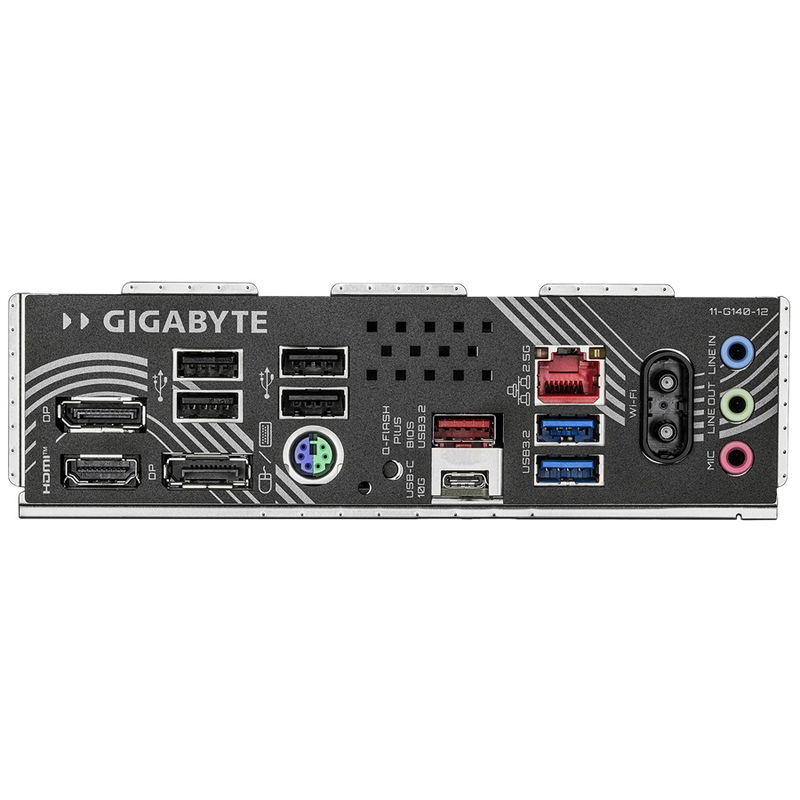

Back Panel Connectors:

• 1 x HDMI port (Note)
• 2 x DisplayPorts (Note)
• 1 x Q-Flash Plus button
• 1 x PS/2 keyboard/mouse port
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 1 x USB Type-C port, with USB 3.2 Gen 2 support
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 2 x antenna connectors (2T2R)
• 3 x audio jacks

I/O Controller:

• iTE I/O Controller Chip

H/W Monitoring:

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Bundled Software:

• Norton Internet Security (OEM version)
• LAN bandwidth management software

Operating System:

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

Form Factor:

• Micro ATX Form Factor; 24.4cm x 24.4cm
