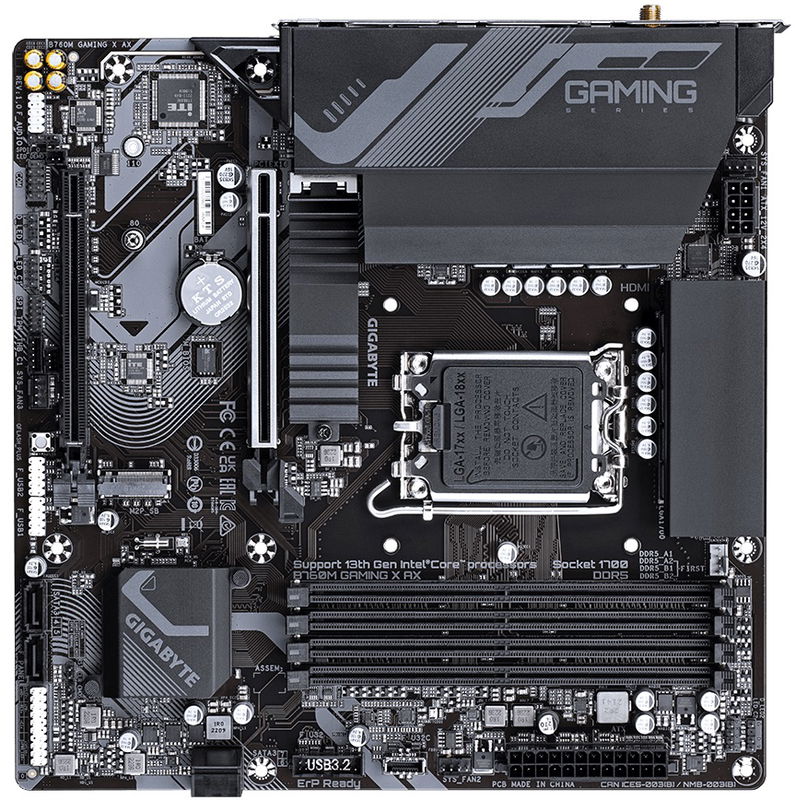

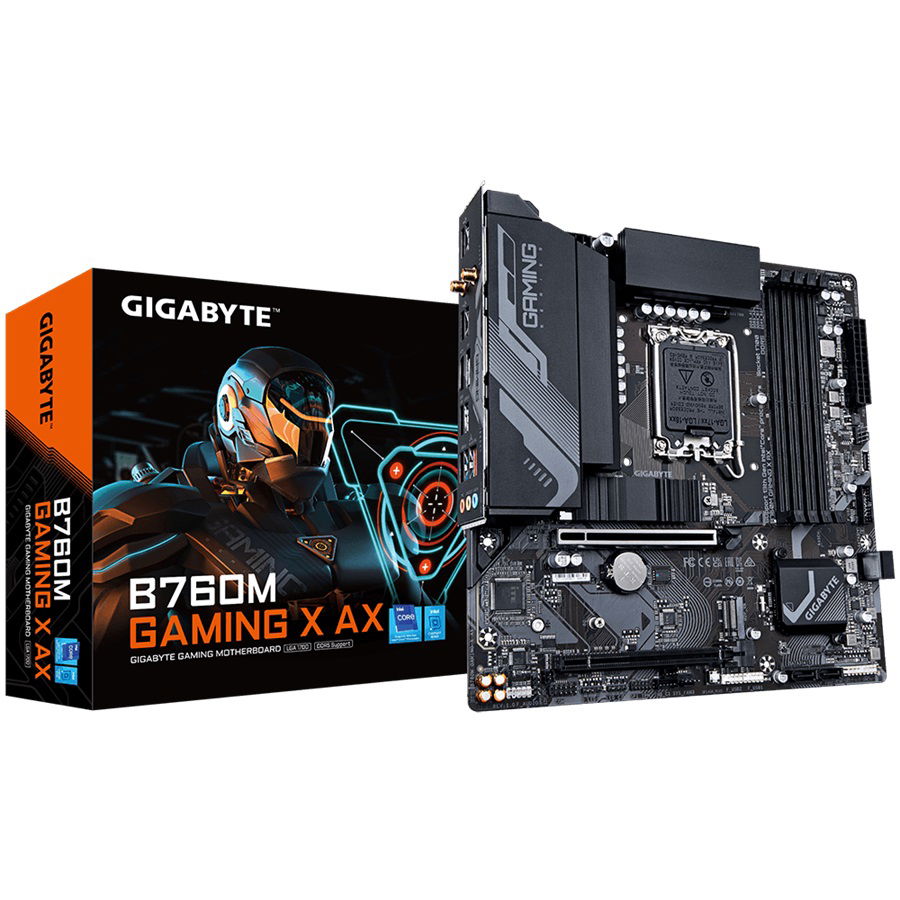

Gigabyte B760M Gaming X AX Intel LGA1700 B760 mATX Motherboard

The B760M GAMING X AX motherboard, supporting Intel Core 14th/13th/12th processors, boasts unparalleled performance with an 8+1+1 Phases Hybrid Digital VRM, DDR5 XMP support, and PCIe 4.0 design. Advanced thermal features, 2 PCIe 4.0 x4 M.2 connectors, and Smart Fan 6 ensure stability. Its connectivity includes 2.5GbE LAN, Wi-Fi 6E, and Front USB-C 10Gb/s. The motherboard offers personalization through UEFI BIOS and GIGABYTE Control Center, emphasizing ultra-durability with Q-Flash Plus and a DIY-friendly design.

• Supports Intel Core 14th/ 13th /12th processors
• Unparalleled Performance: Hybrid 8+1+1 Phases Digital VRM Solution
• Dual Channel DDR5: 4*DIMMs XMP Memory Module Support
• Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
• EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design
• Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax
• Extended Connectivity: Front USB-C 10Gb/s, DP, HDMI
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

CPU:

• LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
• L3 cache varies with CPU

Chipset:

• Intel B760 Express Chipset

Memory:

• Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture

Onboard Graphics: Integrated Graphics Processor-Intel® HD Graphics support:

• 1x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
• 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Audio:

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

LAN:

• Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module:

• Intel Wi-Fi 6E AX210
• Intel Wi-Fi 6E AX211
• Realtek Wi-Fi 6E RTL8852CE

Expansion Slots:

• CPU: 1x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
• Chipset: 1x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

Storage Interface:

• CPU: 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
• Chipset: 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB); 4x SATA 6Gb/s connectors

USB:

• Chipset: 1x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header; 5x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header); 1x USB 2.0/1.1 port on the back panel
• Chipset+2 USB 2.0 Hubs: 8x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 3 x system fan headers
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB Type-C header, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 2 x Thunderbolt add-in card connectors
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x serial port header
• 1 x Q-Flash Plus button
• 1 x reset jumper
• 1 x Clear CMOS jumper

Back Panel Connectors:

• 3 x USB 3.2 Gen 1 ports
• 5 x USB 2.0/1.1 ports

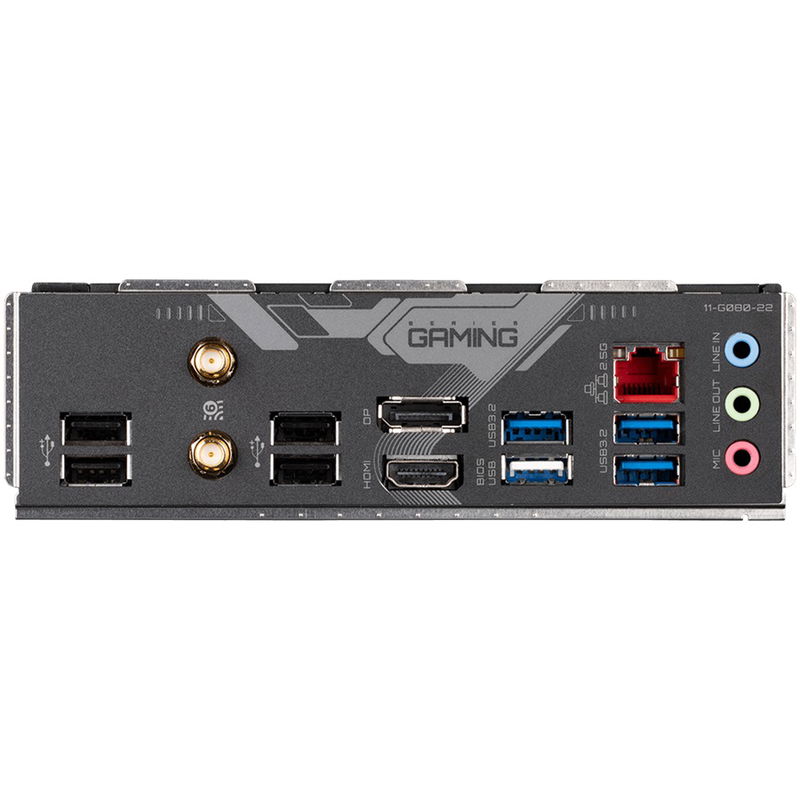

• 2 x SMA antenna connectors (2T2R)
• 1 x HDMI 2.0 port
• 1 x DisplayPort
• 1 x RJ-45 port
• 3 x audio jacks

I/O Controller:

• iTE I/O Controller Chip

H/W Monitoring:

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Bundled Software:

• Norton Internet Security (OEM version)
• LAN bandwidth management software

Operating System:

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

Form Factor:

• Micro ATX Form Factor; 24.4cm x 24.4cm
