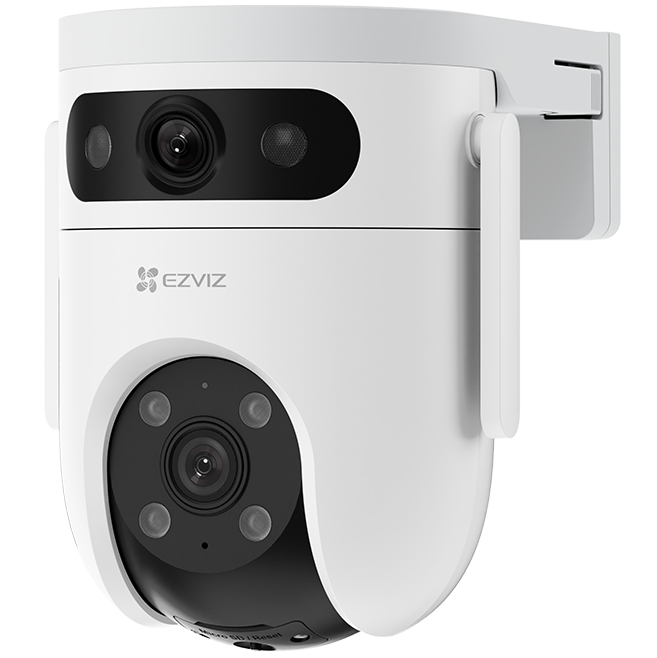

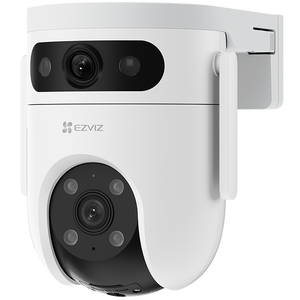

EZVIZ H9c 2K Dual Lens Ethernet Wi-Fi IR Turret Camera

The new addition to EZVIZ’s highly acclaimed PT Series, the dual-lens H9c 2K demonstrates the future of security automation with multiple unique technologies. Its two cameras work interactively to protect larger areas with minimal manpower, achieving results comparable to a multi-camera system. It alerts to important events, follows ongoing activities, and patrols key locations from time to time – all automatically.

Dual lenses. Double security:
With EZVIZ’s unique dual-lens technology, the H9c provides unparalleled protection that’s beyond professional. It uses a wide-angle lens on top of a telephoto pan-and-tilt lens – the duo works independently or together in a way that is much smarter than your ordinary camera.

Next-level detection, unparalleled protection:
The H9c is equipped with dual-lens, co-enabled detection technology to safeguard even the most complex environments in a way that is tailored to your needs. You can use these advanced features at any time without committing to a subscription plan.

Face two directions, but follow the same activity:
Even if the two lenses are set on opposite viewing angles to secure two different areas, they can complete a single smart tracking task through teamwork. When a human is detected by the upper lens, the PT lens will automatically rotate to such angle to lock on the person and record the whole activity.

Smarter alerts with upgraded vehicle detection:
It reduces alerts caused by falling leaves or flying insects, and informs you when someone parks in your property area without permission.

See much more than you can imagine:
A bigger space needs a wider view. That’s where the H9c 2K comes in handy. It can pan and tilt to take in a 360-degree field-of-view, and render details in 2K resolution to capture crucial moments clearly.

Click to check, with both wide and close-up views:
Understand the whole, big picture while paying attention to the important details, by using the EZVIZ App. You can tap the area of interest on the wide-angle viewing box, so a close-up view will be shown on the side at the same time.

Camera:

• Image Sensor: 1/2.7" Progressive Scan CMOS
• Shutter Speed: Self-adaptive shutter
• Lens, Upper Camera: 2.8mm@ F1.6, viewing angle: Diagonal 130°, Horizontal 108°, Vertical 56°
• Lens, Bottom Camera: 6mm@F1.6, viewing angle: Diagonal 62°, Horizontal 55°, Vertical 28°
• PT Angle: Pan: 350°, Tilt: 80°
• Minimum Illumination: 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
• Lens Mount: M12
• Day & Night: IR-cut filter with auto-switching
• DNR: 3D DNR
• WDR: Digital WDR
• Black & White Night: 30m / 98ft

Video & Audio:

• Max Resolution: 2304 × 1296
• Frame Rate: Max:15fps; Self-Adaptive during network transmission
• Video Compression: H.265 / H.264
• H.265 Type: Main Profile
• Video Bit Rate: Quad HD, Full HD, Hi Def, Standard. Adaptive bit rate.
• Audio Bit Rate: Self-Adaptive

Network:

• Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
• Frequency Range: 2.4 GHz ~ 2.4835 GHz
• Channel Bandwidth: Supports 20MHz
• Transmission Rate: 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps
• Wi-Fi Pairing: AP paring
• Protocol: EZVIZ cloud proprietary protocol
• Interface Protocol: EZVIZ cloud proprietary protocol
• Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
• Security: WPA-PSK/WPA2-PSK

Functions:

• Smart Alarm: AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection
• Auto Tracking: Supports
• Customized Alert Area: Supports
• Two-way Talk: Supports
• Preset Locations: Supports
• General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

Storage:

• Local Storage: Supports microSD Card (Up to 512 GB)
• Cloud Storage: Supports EZVIZ CloudPlay storage

General:

• Operating Conditions: -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing)
• IP Grade: Weatherproof Design
• Power Supply: DC 12V/1.5A
• Power Consumption: MAX. 12W
• Dimensions: 145 × 116 × 142mm
• Packaging Dimensions: 150 × 150 × 194mm
• Net Weight: 668 g
• Weight with Package: 960 g

• H9c Camera
• Drill Template
• Screw Kit
• Waterproof Kit
• Power Adapter
• Regulatory Information
• Quick Start Guide
