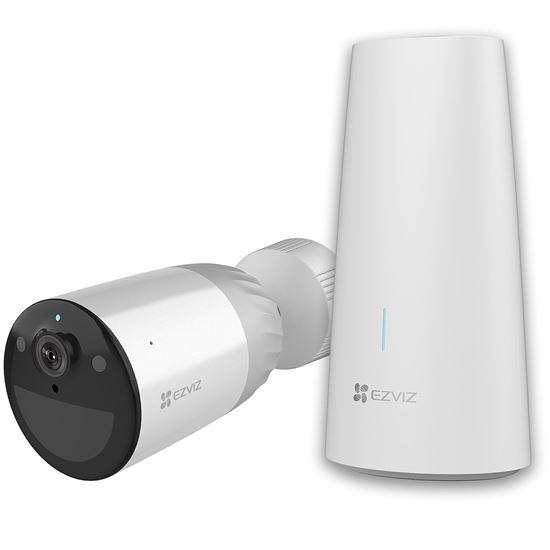

EZVIZ BC1-B1 1080p 2MP Wire-Free IR Bullet Security Camera Kit

Used together with a base Station, the BC1 wire-free camera delivers well-rounded home protection for up to a full year on one single charge. The BC1 inherits EZVIZ’s core technologies of color night vision, two-way talk, active defense, and more, showcasing unparalleled usability in any household.

Year-long protection on a single charge:**
Equipped with an impressive 12,900 mAh rechargeable battery, the BC1 can last for up to a year on one full battery charge, offering you 365-day peace of mind.

Vivid night vision:**
Thanks to two built-in spotlights, the BC1 can render vivid color imaging even in pitch-black darkness. This allows you to see crucial details that would otherwise be lost

Motion alerts are more accurate than ever:
Integrating a PIR sensor and the person-shape detection algorithm, the BC1 camera is intelligent enough to distinguish persons from other moving objects, keeping you safe while also reducing unwanted notifications.

A vigilant guard over your property:
Users can set specific time frames for detection. Once the camera detects a person shape, the BC1 will automatically set off a siren and flash two spotlights to let them know they have been detected.

Customizable voice messages:
A thoughtful product by design, the BC1 allows you to create unique voice messages for greeting or deterrence.

System Parameters:

• Processor: High-Performance Embedded SOC Processor
• Operating System: Linux

Camera Parameters:

• Image sensor: 1/2.8” 2-Megapixel Progressive Scan CMOS Sensor
• Lens: 2.8 mm @ F1.6; 128° (Diagonal), 108° (Horizontal)
• Lens Mount: M12
• Night Vision: IR Distance:10m, IR-cut filter with auto-switching

Audio Parameters:

• Audio Input: Built-in omnidirectional microphone
• Audio Output: Built-in loudspeaker
• Audio Quality: Noise suppression

Camera Event:

• Sensor: PIR Motion Detection Sensor
• Alarm: Customized Alert Area
• Siren: 105 dB built-in siren

Camera Network Parameters and Storage:

• Wireless: Built-in 2.4G Wi-Fi
• Network Configuration: AP Pairing
• Minimum Network Requirement: 1Mbp
• Local Storage: Support MicroSD card up to 256 GB in Base Station
• Cloud Storage: EZVIZ Cloud Storage

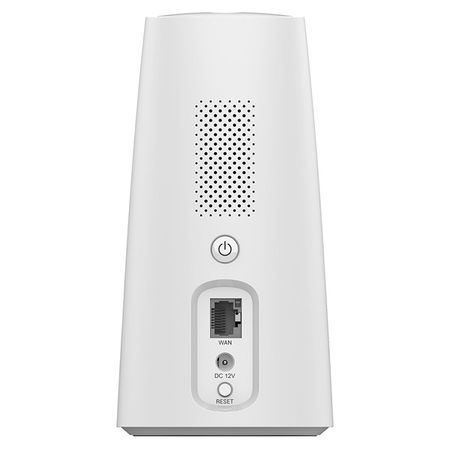

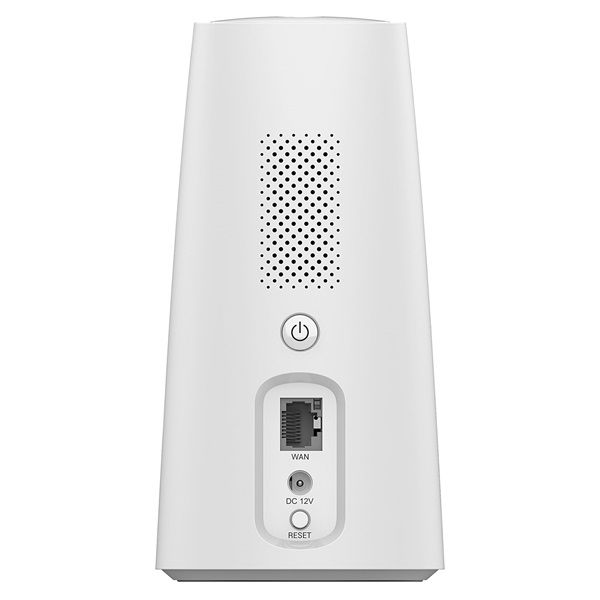

Base Station Parameters:

• Camera pairing: Support up to 4 BC1 cameras
• Buttons: 1 SYNC button; 1 POWER button; 1 RESET button (hold 5 seconds to RESET)
• Siren: 125 dB built-in siren
• Local Storage: MicroSD card slot on the base station (up to 256 GB)
• Antenna: 2.4G: 2 internal @ 3dB
• Indicator: RGB 3 LED Indicator; 1 network Indicator
• USB: Do not support
• Network Interface: 1 RJ-45 10/100Mbps Self-adaptive Ethernet WAN interface.
• Wireless Interface: Support 2.4G connection. The actual available channels vary according to the sales area regulations. Theoretical maximum rate is 144M at 802.11b/g/n.
• Power: 12V/1A typical power consumption < 12watts; The adapter supports a wide voltage range from 100V~240V

General:

• Operating Conditions: -20°C to 45°C (-4°F to 113 °F), Humidity 95% or less (non-condensing)
• Power Supply: 12900mAh Rechargeable Lithium Battery or 5V DC
• Power Consumption Max. 5W
• IP Grade: IP 66
• Dimensions Camera: 104.76 x 62.80 x 62.80 mm (4.12 x 2.47 x 2.47 inch)
• Weight: 851g

• BC1 Camera
• Magnetic Base
• Screw Base
• Power Adapter (For Camera)
• USB Cable
• Mounting plate
• Drill template
• Screw Kit
• Regulatory Information
• Quick Start Guide
