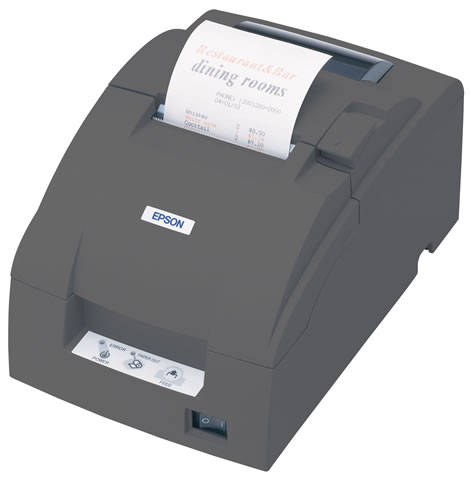

Epson TMU220B Serial Auto Cut Dot Matrix Receipt Printer - Black

• Auto Cut. Serial. ESC / POS. Epson Dark Grey. Includes PSU - Includes Traditional Chinese Font

Overview:

The New Industry-wide Standard in Printing
The TM-U220 is the easy to use yet powerful successor to the TM-U210, whose ease-of-use and reliability have made it an overwhelming favourite around the world.

Outstanding Compatibility
The TM-U220 printers are designed to be compatible with existing systems built around a TM-U210. These systems can be upgraded simply by dropping in a TM-U220. Moreover, since the external dimensions are nearly identical, there is no need to change the installation environment. The transition to the new model is as smooth as can be.

Easy Operation
Free busy operators from troublesome roll paper and ribbon cassette replacement. The TM-U220 makes these chores a snap. Simply pop the cover, drop in the paper or ribbon, shut the cover. You’re back in business.

Higher Printing Speed
A full 30% faster than its predecessors, the TM-U220 printers provide high-efficiency throughput. Retailers can hand receipts to customers faster. Restaurant kitchens can receive orders quickly.

Superior Versatility
The versatile TM-U220 suits a wide range of needs and applications. Each type is powerful, yet compact enough to fit in confined spaces. The wall-mountable Type B and Type D free up valuable counter space in kitchens and other tight locations. Moreover, both Type B and Type D handle your choice of 58, 69, or 76 mm width roll paper.
(Note: This Unit is a Type B - Automatic Cutter - Kitchen Receipt /Ticket)

Specifications:

PRINT METHOD

• 9-pin, Serial Impact Dot Matrix

PRINT FONT

• FONT 7 x 9 / 9 x 9
• COLUMN CAPACITY (COLUMNS) 40 / 42 or 33 / 35
• CHARACTER SIZE (MM) 1.2 (W) x 3.1 (H) / 1.6 (W) x 3.1 (H)
• CHARACTER SET 95 Alphanumeric, 37 International, 128 x 12 Graphic, Traditional / Simplified Chinese, Thai, Japanese, Korean
• CHARACTERS PER INCH 17.8 / 16 cpi or 14.5 / 13.3 cpi

INTERFACE

• Serial

DATA BUFFER

• 4 KB or 40 bytes

PRINT SPEED

• 4.7 lps (at 40 columns, 16 cpi),
• 6.0 lps (at 30 columns, 16cpi)

PAPER

• DIMENSIONS (mm) 57.5 ± 0.5, 69.5 ± 0.5, 76.0 ± 0.5 (W) x dia. 83.0
• THICKNESS (mm) 0.06 to 0.085

COPY CAPABILITY

• One original and one copy

INKED RIBBON

• ERC-38 (Purple, Black, Black / Red)

RIBBON LIFE

• Purple : 4 x 106 characters,
• Black : 3 x 106 characters,
• B / R : 15 x 105 characters (Black),
• 75 x 104 characters (Red)

POWER

• AC adaptor (included)

POWER CONSUMPTION

• Approx. 31 W

D.K.D. FUNCTION

• 2 drivers

RELIABILITY

• MTBF 18 x 104 hours
• MCBF 18 x 106 lines

OVERALL DIMENSIONS (mm)

• Type B : 160 (W) x 248 (D) x 138.5 (H)

WEIGHT (APPROX.)

• Type B : 2.5 Kg

EMC STANDARDS

• VCCI class A, FCC class A, CE marking,
• AS / NZS 3548 class B

OPTION

• Wall-hanging bracket WH-10**(Optional)**

SAFETY STANDARDS

• UL / CSA / TÜV (EN60950)
