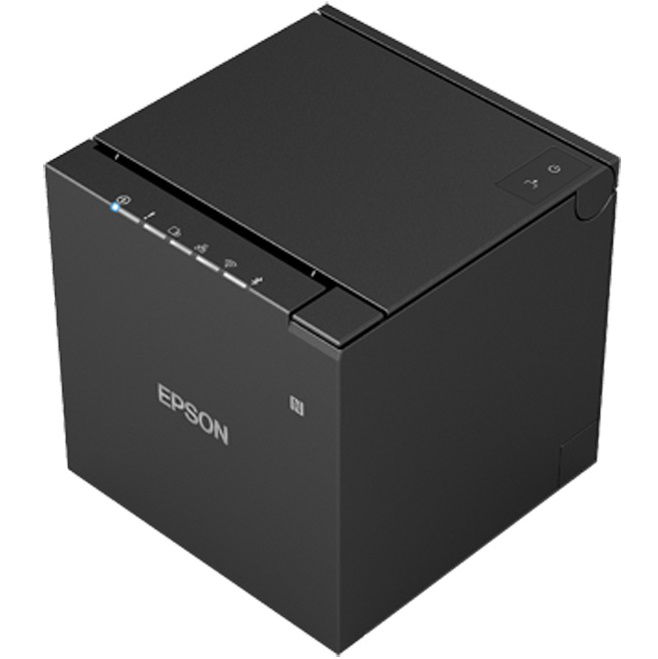

Epson TM-M30III Ethernet USB Wi-Fi Bluetooth Thermal Receipt Printer - Black

In the dynamic landscape of modern Retail and F&B environment, Epson’s innovative TM-m30III thermal receipt printer is your perfect tool to boost operational efficiency and enhance customer experience. Built with a water-resistant design, the innovative de-curl mechanism aids in flattening paper receipts, adding convenience in daily transactions. The chic and compact printer takes up minimal counter space and provides multiple connectivity options for POS peripherals.

Sleek, stylish and compact – The ideal solution for tablet POS environments:
Sleek and modern, the TM-m30III thermal receipt printer series is engineered to offer enhanced connectivity and reliable performance in a compact enclosure. The clean and attractive design provides visual appeal to enhance both your business and the customer’s experience. The enclosure is IPX2 rated for water resistance, and its small size is ideal for tight spaces. The printer has a flexible configuration, working in either a top-exit or front-exit orientation.

Stylishly compact:
Epson's POS expertise has resulted in unrivalled build quality and refined functionality; each component has been developed with ease of use in mind. The TM-m30III can be installed horizontally or vertically, that allows for even more positioning flexibility.

Easy to install:
Print directly from any smart device with ePOS-Print on both iOS and Android systems.

Adaptable:
Quickly and easily customise receipts with logos and promotional messages. Advance graphics and barcodes using high-quality, multiple greyscale printing are also fast and simple to produce.

Paper saving:
Using backward paper feeding, or printing the logo when the receipt is cut, can shorten receipt lengths reducing paper costs and consumption by up to 30%.

Connectable:
A single printer can be dynamically shared across multiple tablets with different interfaces.

Direct printing from web browsers:
Epson's innovative ePOS-Print technology means the TM-m30II can quickly, easily and seamlessly integrate with any PC, tablet, laptop or mobile device via a Wi-Fi or Bluetooth interface. Whether the device is running iOS, Android, Windows CE or Windows mobile, direct printing from the web browser becomes possible without the need to install or update any other drivers.

Easy pairing with mobile devices:
NFC connectivity (Near Field Communication), means the TM-m30III can be easily paired with tablets and smartphones. Simply bring the devices close together to make the connection. For added convenience and flexibility, pairing by QR code is also possible.

Simple set-up using Wi-Fi:
The 'Easy Setting Functionality' on the TM-m30III creates an access point for connecting smart devices. Once implemented, both devices can be easily set-up and configured on a wireless network for instant use.

Optional wall mounting bracket:
Mount the printer quickly and securely to any wall or vertical surface with the optional wall mounting bracket. By simply swapping just two printer covers, the TM-m30III converts from a horizontal to a vertical solution, maximising space even in the smallest retail environments.

Print:

• Print Method Thermal
• Print Speed3 300 mm/sec
• Print Resolution 203 dpi
• Print Direction Vertical and horizontal

Print Fonts:

• Fonts/Column Capacity: Font A: 12 x 24, 48 cpl (default); Font B: 10 x 24, 57 cpl; Font C: 9 x 17, 64 cpl; Kanji Font A: 24 x 24, 24 cpl; Kanji Font B: 20 x 24, 28 cpl (Japanese), 36 cpl (Korean)
• Character Size: Font A: 1.25 mm x 3.00 mm; Font B: 1.13 mm x 3.00 mm; Font C: 0.88 mm x 2.13 mm; Kanji Font A: 2.50 mm x 3.00 mm; Kanji Font B: 2.26 mm x 3.00 mm
• Character Set: 95 Alphanumeric, 18 International, 128 x 43 Graphic, Japanese (11,233 characters of JIS X0213:2004, 1 special character), Simplified - Chinese (28,553 characters of GB18030-2000), Traditional Chinese (13,535 characters of Big5), Korean (8,224 characters of KSC5601)
• Barcode: UPC-A, UPC-E, JAN8/EAN8, JAN13/EAN13, Code39, Code93, Code128, ITF, CODABAR (NW-7), GS1-128, GS1
• DataBar, Code 128 Auto
• Two-Dimensional Symbol Printing: PDF417, QR Code, MaxiCode, DataMatrix, Aztec Code, Two-Dimensional GS1
• DataBar, Composite Symbology

Media Handling:

• Media Dimensions: 80 mm: 79.5 ± 0.5 x 83 mm 3.13" ± 0.02" (width) x 3.27" (roll diameter) 58 mm: 57.5 ± 0.5 x 83 mm 2.26" ± 0.02" (width) x 3.27" (roll diameter)
• Thickness: 48 μm – 80 μm
• Type: Thermal roll paper
• Paper Feed Method: Friction feed
• Paper Back Feed: Yes
• Width: 3.12"/79.5 mm
• Paper Loading: Drop-in
• Roll Diameter (Maximum): 3.27"/83 mm
• Core Diameter (Minimum): 0.71"/18 mm
• Paper Guide: 80 mm (default), 58 mm spacer included
• Auto Cutter: Partial cut (default) or full cut

Connectivity:

• Interface (Wi-Fi + Bluetooth Model)
• USB - PD
• Ethernet (10/100Base-T/TX)
• USB Type-A peripheral device port x 2
• Supported Operating Systems: iOS, Android, Windows, Mac OS X, GNU (Linux)
• Easy Setting Function: NFC6, Simple AP (Wi-Fi + Bluetooth model only)
• Easy Setting Tool: TM Utility (iOS, Android), TM-m30III Utility (Windows), EpsonNet Config, TM Bluetooth Connector

Reliability:

• Printer Reliability: 17 million printing lines; MTBF 360,000 hours; MCBF 65,000,000 lines
• Auto Cutter Reliability: 2.2 million cuts

General:

• Paper Exit and Loading: Top or Front
• Spill Resistance: IPX2 rated (front exit only)
• NV Bit Image Memory: 12KB (maximum)
• NV Graphics: 384KB (maximum)
• Receive Buffer: 4KB or 45bytes
• Development Kit: Epson ePOS SDK (iOS, Android, JavaScript), TM Print Assistant (iOS, Android), OPOS ADK/OPOS ADK for .NET (Windows), JavaPOS ADK (Windows, Linux)
• Drivers: Epson Advanced Printer Driver (APD), TM Virtual Port Driver, Mac Printer Driver, CUPS Driver
• Other Tools: Deployment Tool, Monitoring Tool, Epson Firmware Updater
• Software: TM Utility (iOS, Android), TM-m30III Utility (Windows Desktop), EpsonNet Config (Windows, Mac), TM Bluetooth Connector, Deployment Tool, Monitoring Tool
• Audible Alert: Optional External Buzzer (OT-BZ20)
• LED Indicators: Power, Error, Paper, Ethernet, Wi-Fi (built-in), Bluetooth
• Sensors: Paper End, Cover Open, Near-End Sensor
• D.K.D. Function: Yes
• Power Consumption: Operating 30.6 W, Standby 1.4 W
• Power Source: Adapter PS-190
• Power Saving: Yes
• Temperature: 5 °C to 45 °C
• Relative Humidity: 10% – 90%
• Acoustic Noise Level: 53 dBA
• Standards and Approvals: EMI FCC Class A, ICES-003 Class A Safety Standard UL62368-1/CSA C22.2 No.62368-1
• Dimensions (WxDxH): 127 mm x 128 mm x 129 mm
• Weight: 1,300 g
• Color: EBCK (Epson Black)
• Cash Drawer Kick: Yes
• Cloud Printing Ready: Via Server Direct Print technology
• USB-Network-Tethering: Up to 20 Mbps. Supports iOS, Android and Windows
• Smart Device Charging: Sync & Charge up to 18 W via USB-PD port

Eco Features:

• Paper-Saving Mode
• RoHS compliant

• TM-m30III
• Power Supply PS-190 with AC Cable
• Starter Receipt Paper Roll
• Setup Guide
• 58 mm Roll Paper Guide
