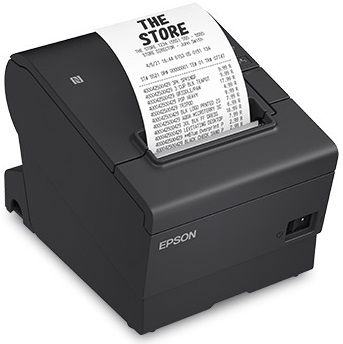

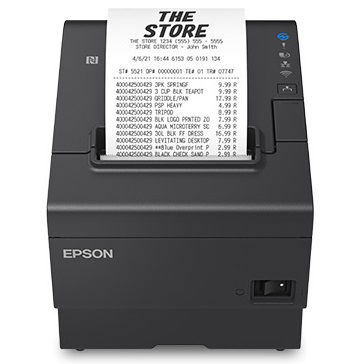

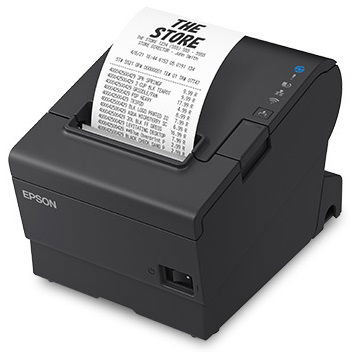

Epson OmniLink TM-T88VII Thermal Line Ethernet USB Wireless Receipt Printer - Black

With industry-leading print speeds and flexible connectivity, the latest TM-T88VII helps deliver the best customer experience for high-volume environments in hospitality, retail, grocery, banking and more.

Ultra Fast Transaction Times:
Industry-leading print speeds up to 500mmm/sec1 and high speed auto cutter for fast transaction completion.

Simultaneous Multi-Interface Connectivity:
Using multiple interfaces printer can be dynamically shared by PC-POS terminals, tablets and mobile devices as well as cloud servers.

Online Ordering Ready:
Server Direct Print technology allows the printer to retrieve orders from a web server and print a receipt without requiring POS software integration.

Easy Setup and Configuration:
Streamline the setup and replacement processes using Epson TM Utility app. The vertical mounting kit provides flexible configuration options

POS Peripheral Support:
Supports POS peripherals including barcode scanners, payment terminals and customer displays.

Printer:

• Print Method: Thermal line printing
• Print Speed: 500 mm/sec (19.7"/sec) max. for graphics and text
• Print Resolution: 180 dpi
• Print Fonts (True Type): Font A (default): 12 x 24 (including 2-dot horizontal spacing); 10 x 24 (including 1-dot horizontal spacing), Font B: 9 x 17 (including 2-dot horizontal spacing), Kanji Font A: 24 x 24 (including 0-dot horizontal spacing); 20 x 24 (including 2-dot horizontal spacing), Kanji Font B: 16 x 16 (including 0-dot horizontal spacing)
• Column Capacity: Font A/B (ANK): 80mm mode 42/48/56 columns, 58mm mode: 30/36/40 columns, Kanji Font A/B: 80mm mode: 21/24/32 columns, 58mm mode: 15/18/22 columns
• Character Set: 95 Alphanumeric, 18 International
• Barcode: UPC-A, UPC-E, JAN8/EAN8, JAN13/EAN13, Code39, Code93, Code128, ITF, CODABAR (NW-7), GS1-128, GS1 DataBar, Code 128 Auto
• Two dimensional Symbol Printing PDF417, QR Code, MaxiCode, DataMatrix, Aztec Code, Two-dimensional GS1 DataBar, Composite Symbology
• Connectivity: Ethernet & USB

Media Handling:

• Media Dimensions: 80 mm: 79.5 ± 0.5 x 83 mm, 3.13" ± 0.02" (width) x 3.27" (roll diameter), 58 mm: 57.5 ± 0.5 x 83 mm, 2.26" ± 0.02" (width) x 3.27" (roll diameter)
• Thickness: 48 – 80 μm
• Type: Thermal roll paper
• Paper Feed Method: Friction feed
• Paper Back Feed: Yes
• Paper Loading: Drop-in
• Roll Diameter (Max.): 3.27"/83 mm
• Core Diameter (Min.): 0.71"/18 mm
• Paper Guide: Yes
• Auto Cutter: Yes
• Near-end Sensor: Yes

Connectivity:

• Interface: Built-in USB, Built-in Ethernet (10/100Base T/TX) + UIB (Serial, Powered USB, Wireless)
• Printer Discovery: NFC (Near Field Communication), Simple AP (wireless network)
• Communication Protocols: ESC/POS, ePOS Print Service (Ethernet/Wireless), Server Direct Print (Ethernet/Wireless)
• Security: WPA-PSK, WPA2-PSK/EAP, WPA2-EAP: EAP-TLS, WPA3-SAE, WPA3-Enterprise, PEAP/MSCHAPv2, PEAP/TLS

Reliability:

• Printer Reliability: 20 million printing lines
• MTBF: 360,000 hours
• MCBF: 70,000,000 lines
• Thermal Head Life: 200 km
• Auto Cutter Reliability: 3.0 million cuts

General:

• LED Indicators: Orange LEDs – Error, Paper Out; Blue LEDs – Power, LAN, Wireless
• Sensors: Paper End, Cover Open, Near-end Sensor
• D.K.D. Function: Yes
• Power Consumption: Operating 27.9 W
• Power Supply: Adapter PS-190 (Included on Select SKUs) Adapter PS-180 (Compatible, not Included)
• Power Saving: Yes
• Temperature: 5 °C to 45 °C (41°F to 113°F)
• Relative Humidity: 10 – 90%
• Acoustic Noise Level: 52 db
• Standards and Approvals: EMI FCC Class A, ICES-003 Class A
• Safety Standard: UL62368-1/CSA C22.2 No.62368-1
• Dimensions (W x D x H): 145 x 195 x 148 mm
• Weight: 1.7 kg

• Epson TM-T88VII Printer
• Thermal Roll Paper (starter roll for testing)
• Power Switch Cover
• Connector Cover
• Bottom Cover for Connector Cover
• Roll Paper Guide
• Screws
• Setup Guide
• AC Adapter w/ AC Cord
• CD (drivers, utilities and documentation)
