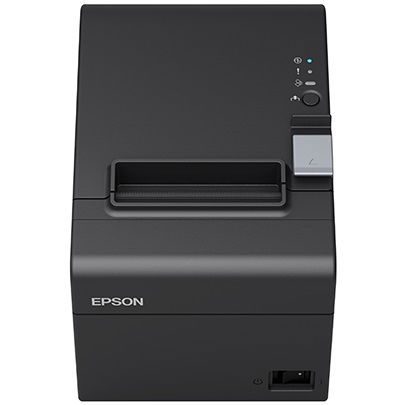

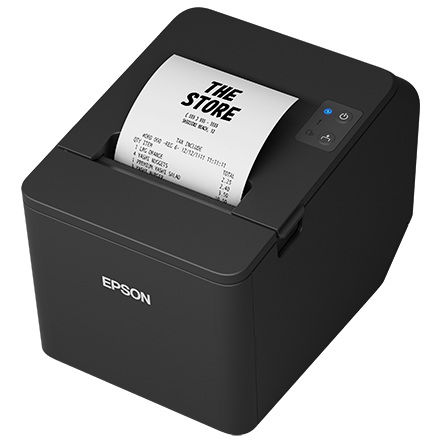

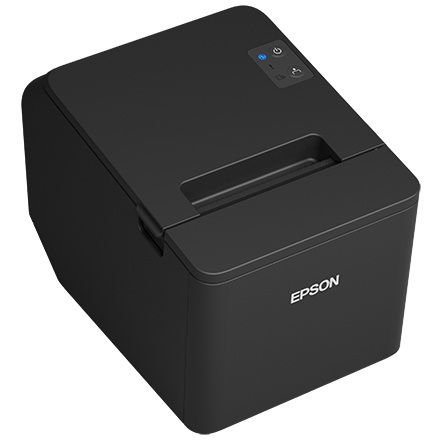

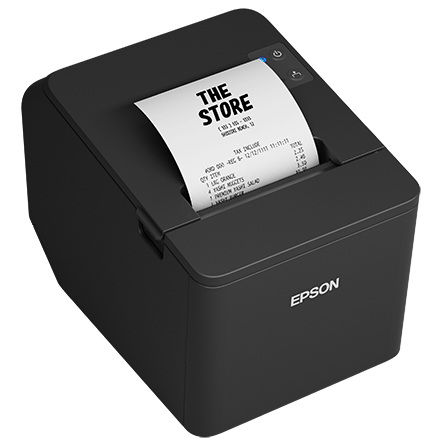

Epson TM-T82IV Serial USB Thermal Receipt Printer

The affordable POS printer with reliable performance and added flexibility.

• Affordable - thermal printer designed with the reliability and flexibility that retailers need
• mPOS/tablet support - Epson ePOS SDK (iOS/Android) support on the Ethernet model; DHCP is enabled and automatically retrieves the printer IP address
• Fast print speeds - up to 250 mm/sec
• Enhanced print options - reduce paper usage up to 30 percent
• Reliable printhead - 150 km/150 million pulses
• Auto-cutter life - 2 million cuts

Printer:

• Print Method: Thermal line printing
• Print Speed Max.: 250 mm/sec (9.84"/sec)
• Fonts: 9 x 17 and 12 x 24 dots/character (W x H)
• Column Capacity - Standard: Paper width 80 mm: 48/64 columns; Paper width 58 mm: 35/46 columns
• Column Capacity - 42-column Mode: Paper width 80 mm: 42/60 columns; Paper width 58 mm: 42/31 columns
• Character Size (W x H): 0.08 x 2.13 mm and 1.25 x 3.00 mm
• Character Set: 95 Alphanumeric, 18 International, 128 x 43 Graphic
• Barcode: UPC-A/E, JAN 13 (EAN 13), JAN 8 (EAN), Code 39/93/128, CODABAR (NW-7) QR-CODE, MaxiCode, PDF417, Composite - Symbology, GS1-128, GS1 DataBar, 2DGS1 DataBar, ITF, Datamatrix, Aztec
• Characters Per Inch: 22.6 and 16.9 cpi

Media Handling:

• Media Dimensions - 80 mm: 79.5 ± 0.5 x 83 mm; 3.13" ± 0.02" (width) x 3.27" (roll diameter)
• Media Dimensions - 58 mm: 57.5 ± 0.5 x 83 mm; 2.26" ± 0.02" (width) x 3.27" (roll diameter)
• Thickness: 48 – 80 µm

General:

• Connectivity: Built-in USB + Serial (25 pin) Interface
• Epson ePOS Technology: Supports ePOS service for direct printing from mobile devices or web-based applications
• D.K.D.: 2 drivers
• EMI Standards: FCC/ICES-003 Class A/NMB-3 (A)
• Safety Standards: UL60950-1/CSA C22.2 No.60950-1
• Case Color: Epson Black
• MTBF: 360,000 hours
• MCBF: 60,000,000 lines
• Auto cutter: 2.0 million cuts
• Options: External buzzer unit (0T-BZ20)
• Installation: Horizontal/vertical on counter/vertical on wall with wall hanging bracket
• Power Supply Voltage: 24 VDC ± 7%
• Power Consumption - Operating: Approx. 29.5 W
• Power Consumption - Standby: Approx. 0.80 W
• Power Source: 100 24 VDC ± 7%, 50/60 Hz, External (AC cable included)
• Dimensions (W x D x H): 140 x 199 x 146 mm
• Weight: 1.7 kg

• TM-T82IV thermal receipt printer
• Thermal roll paper (starter roll for testing/operating check)
• AC cable
• Setup guide
• Wall hanging bracket
