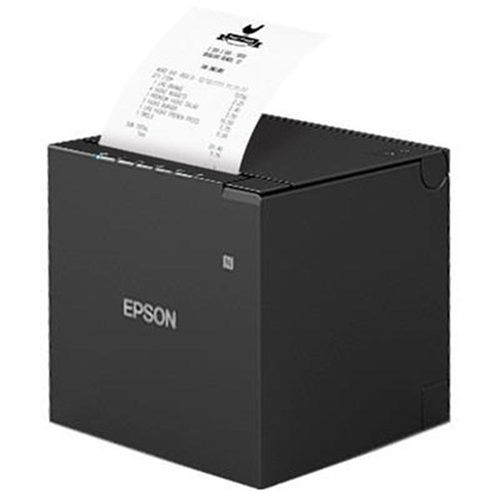

Epson TM-M30III Ethernet USB Thermal Receipt Printer - Black

Sleek and compact, ideal for mPOS receipt printing.

• Modern and compact design - sleek 76.2mm thermal receipt printer; small size; supports both front and top paper exits; standard near-end sensor
• Fast, stable network tethering - wired network communication with iOS or Android mobile device via USB-C connection, at up to 20 Mbps
• Versatile connectivity - built-in interfaces; USB-A x 2, USB-B, and Ethernet
• POS hub capability - connect to USB POS peripherals; Sync & Charge feature can deliver up to 18 W of power to a mobile device
• Ready for cloud printing and online ordering - Server Direct Print available to retrieve print jobs directly from the cloud
• Fast print speed - quickly produce sharp and crisp text, barcodes and logos; speeds up to 300 mm/sec
• Paper-saving feature - reduce paper usage by up to 49 percent
• Enhanced enclosure - IPX2-rated enclosure is water-resistant; antimicrobial and easy to clean

Print:

• Print Method: Thermal
• Print Speed: 300 mm/sec
• Print Resolution: 203 dpi
• Print Direction: Vertical and horizontal

Print Fonts:

• Fonts/Column Capacity: Font A: 12 x 24, 48 cpl (default); Font B: 10 x 24, 57 cpl; Font C: 9 x 17, 64 cpl; Kanji Font A: 24 x 24, 24 cpl; Kanji Font B: 20 x 24, 28 cpl (Japanese), 36 cpl (Korean)
• Character Size: Font A: 1.25 mm x 3.00 mm; Font B: 1.13 mm x 3.00 mm; Font C: 0.88 mm x 2.13 mm; Kanji Font A: 2.50 mm x 3.00 mm; Kanji Font B: 2.26 mm x 3.00 mm
• Character Set: 95 Alphanumeric, 18 International, 128 x 43 Graphic, Japanese (11,233 characters of JIS X0213:2004, 1 special character), Simplified Chinese (28,553 characters of GB18030-2000), Traditional Chinese (13,535 characters of Big5), Korean (8,224 characters of KSC5601)
• Barcode: UPC-A, UPC-E, JAN8/EAN8, JAN13/EAN13, Code39, Code93, Code128, ITF, CODABAR (NW-7), GS1-128, GS1 DataBar, Code 128 Auto
• Two-Dimensional Symbol Printing: PDF417, QR Code, MaxiCode, DataMatrix, Aztec Code, Two-Dimensional GS1 DataBar, Composite Symbology

Media Handling:

• Media Dimensions - 80 mm: 79.5 ± 0.5 x 83 mm; 3.13" ± 0.02" (width) x 3.27" (roll diameter)
• Media Dimensions - 58 mm: 57.5 ± 0.5 x 83 mm; 2.26" ± 0.02" (width) x 3.27" (roll diameter)
• Thickness: 48 μm – 80 μm
• Type: Thermal roll paper
• Paper Feed Method: Friction feed
• Paper Back Feed: Yes
• Width: 3.12"/79.5 mm
• Paper Loading: Drop-in
• Roll Diameter (Maximum): 3.27"/83 mm
• Core Diameter (Minimum): 0.71"/18 mm
• Paper Guide: 80 mm (default), 58 mm spacer included
• Auto Cutter: Partial cut (default) or full cut

Connectivity:

• Interface: USB - PD, Ethernet (10/100Base-T/TX), USB Type-A peripheral device port x 2
• Supported Operating Systems: iOS, Android, Windows, Mac OS X, GNU (Linux)

Reliability:

• Printer Reliability: 17 million printing lines
• Printer MTBF: 360,000 hours
• Printer MCBF: 65,000,000 lines
• Auto Cutter Reliability: 2.2 million cuts

General:

• Paper Exit and Loading: Top or Front
• Spill Resistance: IPX2 rated (front exit only)
• NV Bit Image Memory: 12KB (maximum)
• NV Graphics: 384KB (maximum)
• Receive Buffer: 4KB or 45bytes
• Development Kit: Epson ePOS SDK (iOS, Android, JavaScript), TM Print Assistant (iOS, Android), OPOS ADK/OPOS ADK for .NET (Windows), JavaPOS ADK (Windows, Linux) Drivers: Epson Advanced Printer Driver (APD), TM Virtual Port Driver, Mac Printer Driver, CUPS Driver
• Other Tools: Deployment Tool, Monitoring Tool, Epson Firmware Updater
• Power Consumption: Operating 30.6 W, Standby 1.4 W
• Power Source: Adapter PS-190
• Power Saving: Yes
• Temperature: 5 °C to 45 °C
• Relative Humidity: 10% – 90%
• Acoustic Noise Level: 53 dBA
• Color: EBCK (Epson Black)
• Cash Drawer Kick: Yes
• Dimensions (W x D x H): 127 x 128 x 129 mm
• Weight: 1,300 g

• TM-m30III
• Power Supply PS-190 with AC Cable
• Starter Receipt Paper Roll
• Setup Guide
• 58 mm Roll Paper Guide
