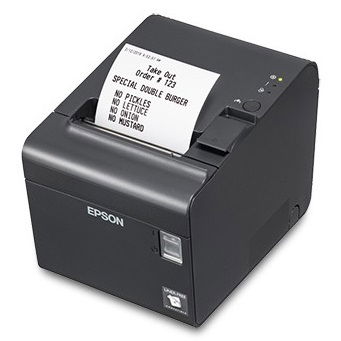

EPSON TM-L90II Serial USB Liner-Free Thermal Receipt Printer

Versatile liner-free compatible label printer for operational efficiency.

• Label-taken sensor - accepts multiple jobs but only prints one label at a time; prevents continuous printing and labels adhering to each other
• Back-feed capability - retracts labels so it can print closer to the top for more efficient media use
• Advanced paper-saving features - white-space and character-height reduction help reduce paper usage up to 47 percent1
• Ready-to-use labels - help improve order accuracy and customer satisfaction
• Flexible - one printer for both liner-free labeling and receipt printing (MaxStick, StickyPOS and the UPM Rafaltac media compatible)
• mPOS friendly - supports printing from smartphones and tablets
• Convenient - dual interfaces, including built-in USB for flexible connectivity
• Fast print speeds - up to 170 mm/sec
• Versatile - 40, 58 and 80 mm print width support options

Printer:

• Print Method: Thermal line printing
• Print Speed: Max. 170 mm/sec (thermal receipt); 90 mm/sec (label media)
• Print Resolution: 203 x 203 dpi
• Print Font: Font (A/B)
• 40 mm: 12 x 24, 7 x 17/9 x 17, 7 x 17
• 58 mm: 13 x 24, 10 x 24/10 x 17, 7 x 17
• 80 mm: TM-T88 compatible mode 13 x 24, 10 x 17; TM-L90 compatible mode 12 x 24, 9 x 17
• Column Capacity: 64/48 columns
• Character Size (W x H): 1.13 mm x 2.13 mm and 1.5 mm x 3.0 mm
• Character Set: 95 Alphanumeric, 37 International, 128 x 11 Graphic
• Barcode: UPC-A, UPC-E, JAN8 (EAN), JAN13 (EAN), ITF, Code 39/93/128, CODABAR, QR-CODE, MaxiCode, PDF417
• MTBF: 360,000 hours2
• MCBF: 70 million lines (receipts), 35 million lines (labels)2
• Auto Cutter: 2 million cuts (receipts), 1 million cuts (labels)

Media:

• Paper Width: 40 mm, 58 mm, 80 mm
• Paper Diameter: 4" (102 mm)

General:

• Interface: Built-in USB interface + Serial RS-232c
• Data Buffer: 4K or 45 bytes
• Power: 24 VDC ±7%
• Power Consumption: Approx. 1.7A (mean)
• Colour: Epson Dark Grey
• Factory Options: PS-180 AC adaptor, paper roll spacer, wall-hanging bracket WH-10
• Environmental Standards: WEEE RoHS compliant
• EMI Standards: FCC/ICES-003 Class A, CE marking, AS/NZS CISPR22 Class A
• Safety Standards: UL, CSA, TUV (EN60950)
• Overall Dimensions (W x D x H) :140 x 148 x 203 mm
• Weight: Approx. 1.9 kg

• TM-L90II LFC thermal label printer
• User Guide
• Guides for 40 mm and 58 mm paper
• Power supply (No power cable included)
