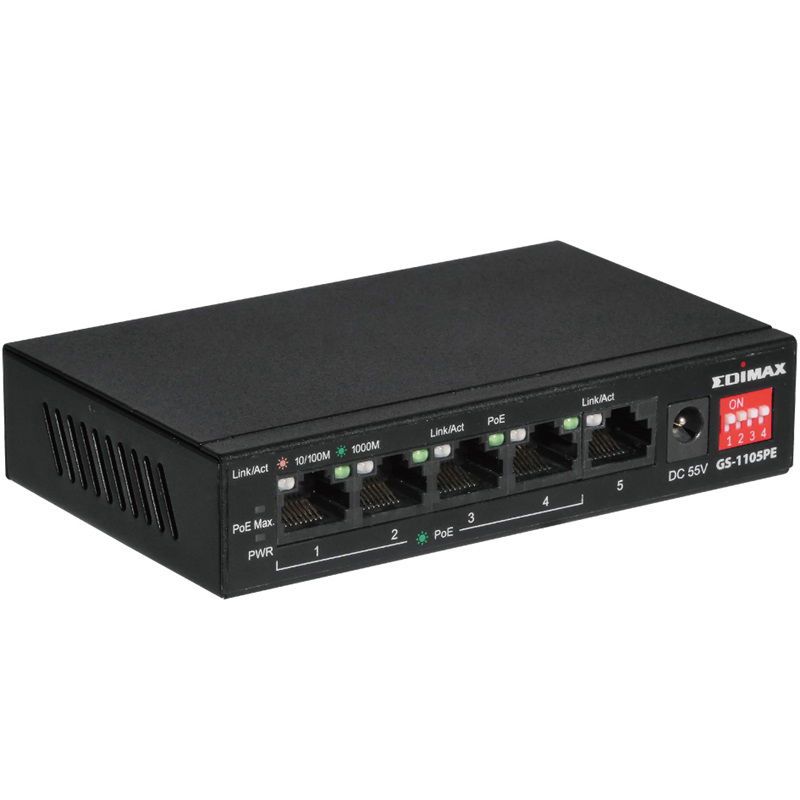

Edimax Long Range 5-Port Gigabit PoE+ Un-managed Switch with 4 PoE+ Ports and DIP Switch

The Edimax GS-1105PE is a Long Range 5-Port Gigabit PoE+ Switch designed for using at home, or small and medium sized network environments. With 4 DIP switches, the PoE port can be manually set for ON-OFF control to extend the PoE delivery distance to 200 meters or further, and also support port-based VLAN and QoS functions.

• Gigabit High Speed PoE+: Equipped with 5 Gigabit ports, including 4 PoE+ ports, IEEE 802.3af/at PoE compliant, supports up to 30W per PoE port (total power budget: 60W)
• PoE Long Range Extension: Guaranteed PoE transmit distance to 200 meters at speed of 10Mbps
• Port-based VLAN: Port isolated ports to prevent multicast or broadcast storms
• Hardware QoS: Easy DIP switch setup QoS, supports 802.1p, for video & voice traffic priority
• PoE Auto Detection: Auto detect PoE and non-PoE devices to avoid damage by incorrect power sending
• Power Backfeed Protection: Equipped with power backfeed protection to avoid damaging the PoE ports
• Plug-and-Play, Flexible Network Deployment & Energy Efficient
• Quiet Fanless, Compact, Durable Metal Casing

Hardware:

• 4 x RJ-45 10/100/1000Base-T PoE+ Ports
• 1 x RJ-45 10/100/1000Base-T Ports
• PoE Max.: PoE Power Budget Alert
• PWR: System Power Status
• Link/Act: Connection and Transmission Status (Left LED, Port 1-5)
• PoE: PoE Status (Right LED, Port 1-4)
• DIP Switch: PoE Extend, VLAN, QoS
• Power Input: External Power Supply (DC 55V/1.3A)
• Towal Power Supply: 72W

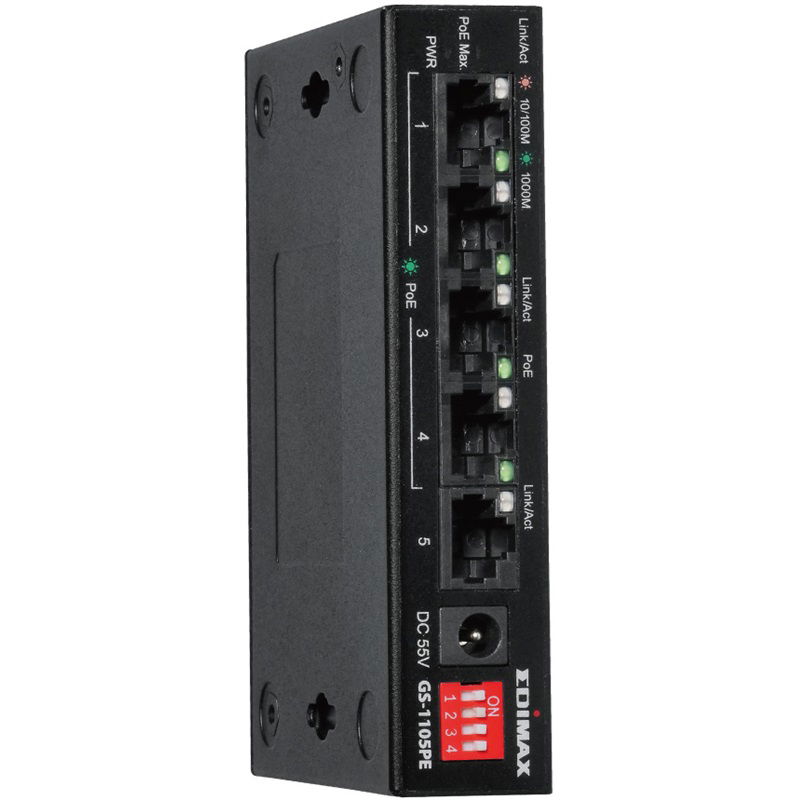

• Mounting: Desktop / Wall-mount
• Housing: Metal
• Fan: Fanless
• Dimensions (WxDxH): 121 x 75 x 26mm
• Weight: 240g (0.53lb)

Performance:

• Switching Capacity / Backplane: 10Gbps
• Forwarding Rates: Max. 7.44Mpps
• MAC Address Table: 2K
• Jumbo Frames: 9KB
• Packet Buffer: 1Mb

Power Over Ethernet:

• Standard: IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
• Power Output: Up to 30W per port
• Pin Assignment: 1/2(+), 3/6(-) End-Span (mode A)
• PoE Power Budget: 60W
• Long Range: DIP switch ON to support PoE with long range to 200 meters at 10Mbps
• Backfeed Protection: Built-in

Standard:

• IEEE 802.3 10Base-T Ethernet
• IEEE 802.3u 100Base-TX Fast Ethernet
• IEEE 802.3ab 1000Base-T Gigabit Ethernet
• IEEE 802.3af Power over Ethernet (PoE)
• IEEE 802.3at Power over Ethernet (PoE+)
• IEEE 802.3x Full-duplex and flow control
• IEEE 802.1p Quality of Service (QoS)
• IEEE 802.1Q Virtual LANs (VLANs)
• IEEE 802.3az Energy Efficient Ethernet

Temperature:

• Operating: 0 ~ 40℃ (32~104°F)
• Storage: -40 ~ 70℃ (-40~158°F)

Humidity:

• Operating: 10 ~ 90% (Non-condensing)
• Storage: 5 ~ 90% (Non-condensing)

Certifications:

• FCC, CE, LVD, BSMI
