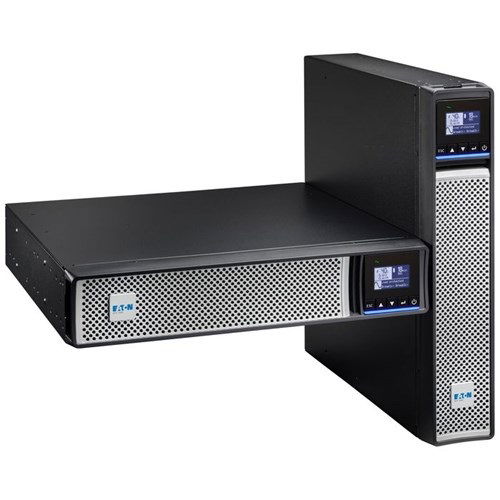

Eaton 5PX Gen 2 2200VA 2200W 8 Outlets Line Interactive Rack/Tower UPS

The Eaton 5PX Gen2 UPS is a single-phase line-interactive UPS. The UPS is available in a flexible convertible tower or rack form factor. The optional network card (Network-M2) will provide a Gigabit Ethernet connection and enables secure UPS monitoring over HTTPS web browser interface, SNMP v1/v3 protocol and email alarms. This UPS comes with Unity power factor (VA=W) 1.0. Increase battery run time for your application by adding extended battery modules (EBMs) to your UPS.

Ease of Operation:
The innovative graphical LCD display makes configuration of the 5PX Gen2 easy and intuitive. The UPS offers an easy start-up configuration wizard to simplify your UPS setup process. Remote management and firmware upgrades are available with the optional Eaton Gigabit network management card. Advanced battery management and hot-swappable battery enables ease of maintenance and flexibility.

Efficiency:
The 5PX Gen2 delivers 11% more power to connected servers than other UPS thanks to its unity power factor capability. It is Energy Star 2.0 certified for maximum efficiency across the full operating range. Energy is metered for each individual outlet group and is visible directly on the display and through Eaton’s Intelligent Power Manager.

Secure and Resilient:
Prioritise connected devices for maximum uptime of essential services. Easily manage power switching and disaster recovery with load segment control. Advanced virtualisation capabilities make the Eaton 5PX Gen2 perfect for Enterprise and Edge IT applications. Netpack models further protect your content with dual cybersecurity certifications (UL 2900-1 & IEC 62443-4-2) and offer connection to Eaton’s Cyber Secured Monitoring cloud.

• Construction Type: 482.6 mm (25 Inch) Device
• VA Rating: 2200 VA
• Color: Black/Silver
• Rack Mounting Kit: Yes
• Wattage: 1980 W
• Form Factor: Rack/Tower
• Topology: Line-Interactive
• Enclosure: Black/Silver
• Phase (Input): 1
• Surge Protection: Yes
• Efficiency: 97%
• Rack Size: 2U
• Internal Bypass: Yes
• Phase (Output): 1
• Dimensions: 438 x 603 x 85.5mm
• Weight: 28.2kg
