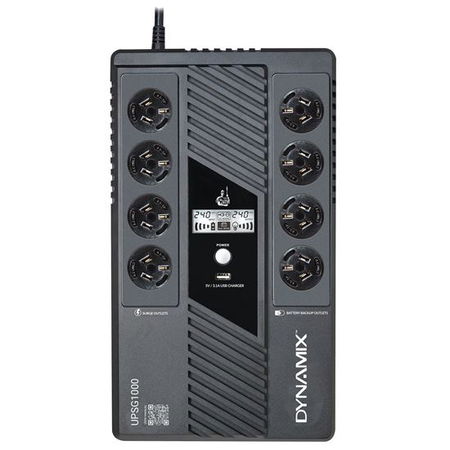

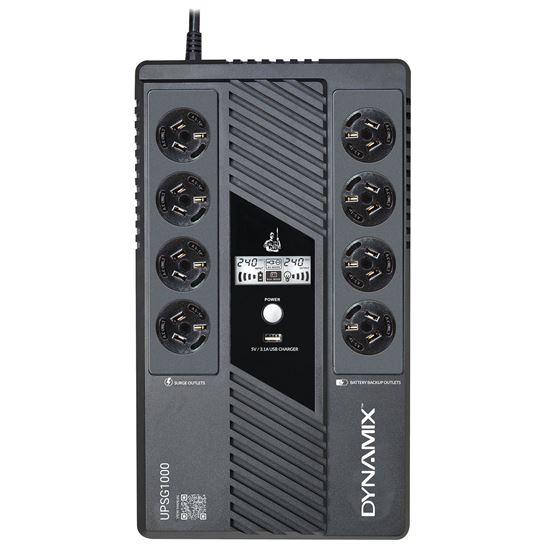

Dynamix SafeGuard 1000VA 600W 8 Outlet Line Interactive Tower UPS

The DYNAMIX SafeGuard 1000VA UPS provides a buffer between your equipment and inconsistent mains power supply. This cost-effective, compact device constantly stands guard beside your sensitive equipment. The informative display and USB charging port are unique to this model and offer a complete solution for protecting valuable equipment.

• Automatic Voltage Regulation (Buck and Boost)
• Informative Screen Display
• USB Charging Port
• Light-weight compact and elegantly designed
• Intelligent microprocessor control
• Monitoring and shutdown software included
• Overload protection and alarm
• Output short circuit protection
• Start on battery function (cold start)
• USB communication
• Easy user-replaceable battery
• Australian/New Zealand approved sockets
• Wall mountable

General:

• Capacity: 1000VA / 600W

Input:

• Voltage: 240V AC
• Voltage Range: 177V-290V AC
• Frequency Range: 60/50Hz (auto sensing)

Output:

• Voltage: 240V AC
• Frequency Range (Batt. Mode): 50Hz or 60Hz ±1Hz
• Transfer Time: 6 msec (Typical)
• Waveform (Batt. Mode): Simulated Sine Wave
• NZ Outlets: 4 (UPS and Surge Protection). 4 (Full Time Surge Protection)

Battery:

• Capacity: 12Vx9AH
• Backup Time: 25min (1 PC load at 100W)
• Typical Recharge Time: 6~8 hours recover to 90% capacity

Protection:

• Full Protection: Overload, discharge, & overcharge protection
• Surge protection: 475Joules /13000Amps - Best in its class

Communication and Management:

• Interface: USB interface
• Software: PowerShield NetGuard supports Windows, Linux, Unix & Mac
• LED Alarm: AC Mode, Battery Mode, Low Battery (Batt. Mode), Fault
• Audible Alarm: Battery Mode, Low Battery (Batt. Mode), Fault

Operating Environments:

• Temperature: 0°C - 40°C
• Humidity: 0%-90% (RH Non-condensing)
• Noise level: less than 5dB (No Fan)

Physical:

• Dimensions (L x W x H): 345 x 200 x 100mm
• Weight: 6.1kg
