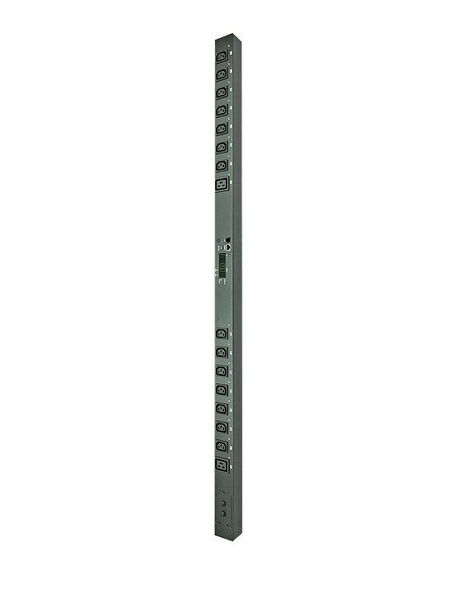

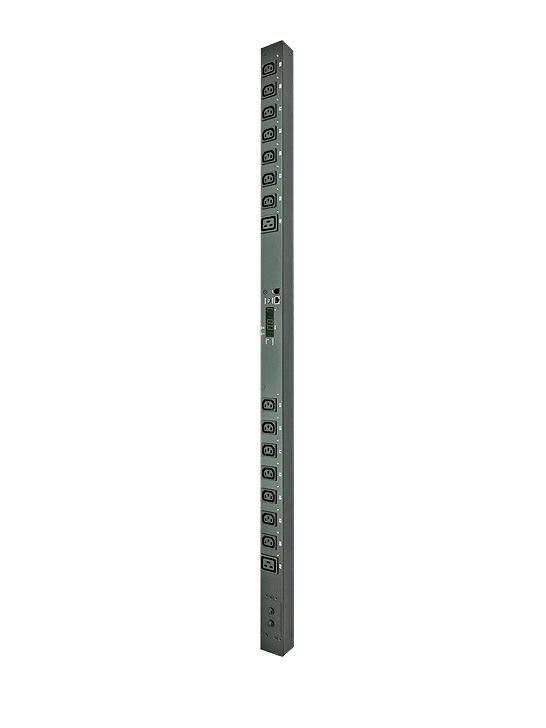

Dynamix 16 Port 32A Switched Power Distribution Unit

This switched PDU has a built-in network interface which allows an administrator to access the PDU from a remote terminal and interface with it to turn on or off outlets and control load by web and SNMP. This can be helpful if a remote machine has gone into an unresponsive state and cannot be restarted through normal means. An administrator can connect to the PDU that the machine is plugged into in order to power cycle the machine.

• Current metre: Digital true RMS current metre
• Power monitor: Remote total power monitoring by metre, web, SNMP, free bundle software
• Protocols: Http, Https, SNMP, DHCP, UDP
• Outlet control: Individual outlet control
• Power Delay: Power On/Off sequence can be defined
• Alarm thresholds: User-defined alarm thresholds for warning and overload
• Event alert: e-mail, trap, audible alarm
• 3M input power cord included

General

• Output: (14) IEC 320 C13, (2) IEC320 C19
• Input: (1) IEC320 309 attached power cord, 3M
• Protection: (2) 16 AMP Circuit Breaker

Communication

• SSL Indication: (1) Yellow LED
• DHCP Indication: (1) Green LED
• Circuit Status: (2) Red LED
• Output Status: (16) Green LED
• Network: (1) RJ45 for Ethernet
• Temp./Humidity: (1) RJ11 for ENV probe connection
• PDU ID: 1 Digits Seven Segment for PDU Identification
• Current Meter: 3 Digits Seven Segments for True RMS Meter
• Range: 0A ~ 20 A
• Resolution: 0.1A
• Precision: +/-2%+/-0.1AMP

Operation

• Nominal Voltage: 230V
• Voltage: 200V~ 240V full range
• Frequency: 50/60HZ full range
• Max. Output Current: 32 Amp
• Temperature: 0 ~ 40 Celsius degree
• Humidity: 0% ~ 90%
• Size: 56 x 1245 x 44 mm
• Weight: 4kg
