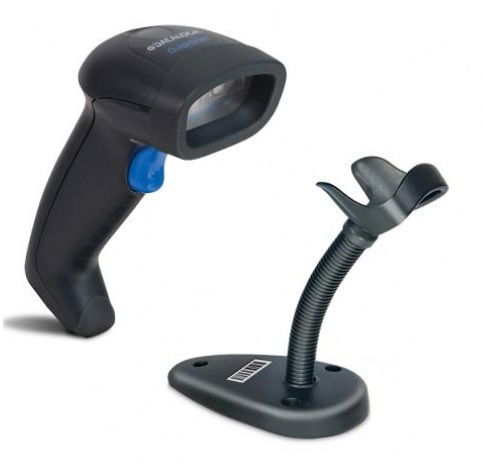

Datalogic QuickScan QD2131 Corded 1D Barcode Scanner - Black


Genuine NZ new item

Find out more...

Today's Price:

$154.41incl gst

Free Delivery

Low Stock. Can Ship Tomorrow- Details

Estimated Delivery Time

  • Auckland
    1 Day
  • North Island
    1-2 Days
  • South Island
    1-3 Days

Product Description:

Datalogic QuickScan QD2131 Corded 1D Barcode Scanner - Black

Datalogic ADC is pleased to announce the release of the QuickScan QD2131 linear imager with an enhanced decoding algorithm enabling the imager to capture and decode 1D bar codes more quickly. The QD2131 linear imager has an extra-wide field of view and an extra-long scan line, allowing users to read longer 1D bar codes from a closer distance. Additionally, the QD2131 imager has an extended reading range which exceeds the requirements of most general purpose scanning applications. The QD2131 imager also supports the Remote Management functions using the Host Download application.


• Extended reading range and depth of field (DOF)
• Extra-wide scan angle and extra-long scan line
• Sharp and highly visible scan line
• Light weight and balanced design
• Snappy reading performance
• Reads bar codes from mobile devices or computer screens
• Datalogic’s patented ‘Green Spot’ technology for good-read feedback


• 1D / Liner Codes: Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.
• Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; UPC A/E Composites

Reading Performance:
• Field of View: 56° +/- 2°
• Light Source: Red LED 610 - 650 nm
• Print Contrast Ratio (Minimum): 25%
• Read Rate: 400 reads / sec.
• Reading Angle: Pitch: +/- 65°; Roll (Tilt): +/- 45°; Skew (Yaw): +/- 70°
• Reading Indicators: Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED
• Resolution (Maximum): 0.102 mm / 4 mils (Linear Codes

• Current: Operating (Typical): 140 mA @ 5 VDC; Standby/Idle (Typical): 50 mA @ 5 VDC
• Input Voltage: 4.75 - 14 VDC +/-10%

• Ambient Light: 0 - 120,000 lux
• Drop Resistance: Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
• ESD Protection (Air Discharge): 16 kV
• Humidity (Non-Condensing): 90%
• Particulate & Water Sealing: IP42
• Temperature: Operating: 0 to 50 °C / 32 to 122 °F; Storage/Transport: -40 to 70 °C / -40 to 158 °F

Safety & Regulatory:
• Agency Approvals: The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications.
• Environmental Compliance: Complies to China RoHS; Complies to EU RoHS

• Interface: USB
• Dimensions: 16.3 x 9.1 x 4.1 cm
• Weight: 150g

Due to the specialised nature of Point of Sale items this product cannot be exchanged or returned (unless faulty). Please verify compatibility before purchase & if you have any questions please contact us.
