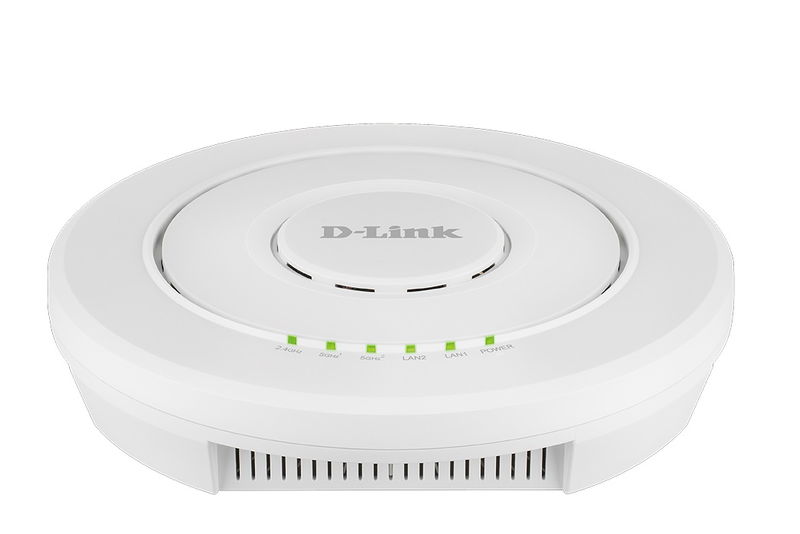

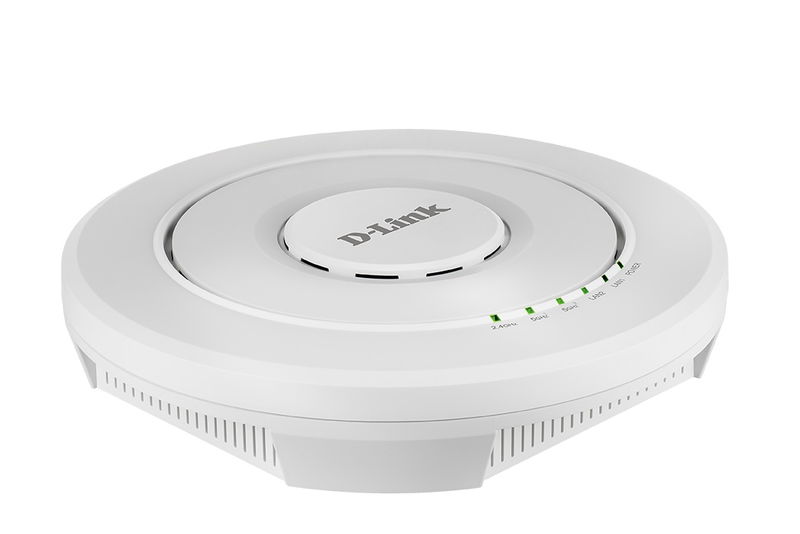

D-Link DWL-7620AP AC2200 Wireless Tri-Band Unified Access Point

As more and more mobile devices connect to wireless signals, and as the Internet of Things trend comes on song, there has never been a more crucial time for the 802.11ac Wi-Fi standard to move on. Addressing this need for additional wireless bandwidth is 802.11ac Wave 2, which is highly likely to become the most popular Wi-Fi standard ever. Among it's many benefits are Incredible speed, as the relatively fast 802.11ac (on 5 GHz) offers a theoretical max data throughput rate of 1.3 gigabits per second. Wave 2 can potentially offer up to 6.8 Gbps in the future.

Faster Business with Wave 2 Tri?Band Wi?Fi

• The Wireless AC2200 Wave 2 Tri?Band Unified Access Point delivers great bandwidth and flexibility for medium to large Wi?Fi networks. Its fast Tri?Band speeds, 2x2 MU?MIMO, band steering, and Airtime Fairness upgrades your business to the best.

Advanced Wireless Features

• 802.11k Fast Roaming1 allows wireless clients to move seamlessly between access points. 802.1p Quality of Service (QoS) provides enhanced throughput and better performance of time?sensitive traffic like VoIP and streaming DSCP. It also supports Wi?Fi Multimedia (WMM), so in the event of network congestion, time?sensitive traffic can be prioritised. Airtime Fairness ensures that equal airtime is given to each client, preventing slower devices from monopolising the wireless connection.

Upgrade to Tri?Band WiFi

• The DWL-7620AP features one 2.4 GHz and two 5 GHz wireless bands for the growing number of devices connecting to a single access point.

• Wireless Interface: IEEE 802.11b/g/n 2.4 GHz wireless, IEEE 802.11/a/n/ac Wave 2 5 GHz wireless
• MIMO: 2x2
• Antennas: Internal omnidirectional antennas, 2.4 GHz: 3 dBi, 5 GHz: 4 dBi
• Operating Frequency: 2400 to 2483.5 MHz, 5150 to 5850 MHz
• Operating Channels: 1 to 13 channels for 2.4 GHz band (per country code), 36 to 165 channels for 5 GHz band per country code

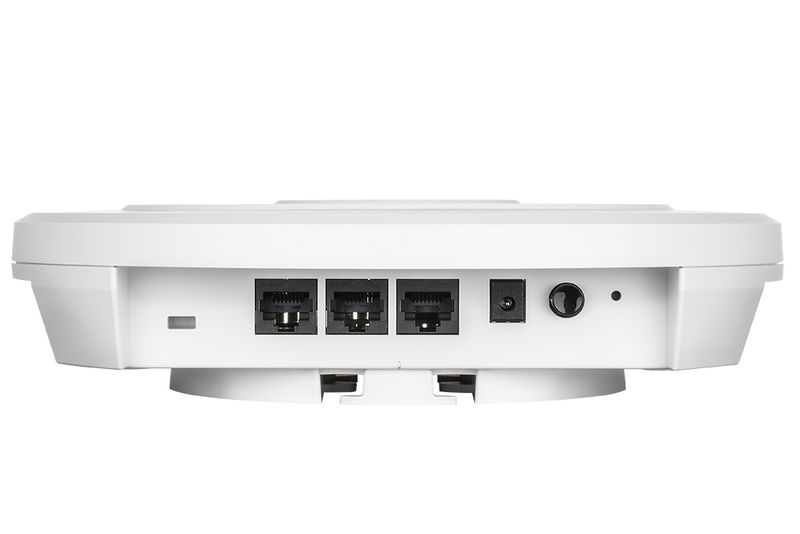

• Ethernet Interface: 2 x 10/100/1000BASET LAN port, Console Port, RJ45
• Data Rate2: 2.4 GHz Up to 400 Mbps, 5 GHz Up to 867 Mbps, 5 GHz (2) Up to 867 Mbps
• Functionality: Advanced Features
• Auto Channel selection
• 802.1p Quality of Service (QoS)
• Wireless Multimedia (WMM)
• Wireless Distribution System (WDS)
• Band steering
• Airtime Fairness
• Link Aggregation
• IEEE 802.11k Fast Roaming
• Management: Operating Mode Standalone mode, Managed mode Centrally managed by D-Link Wireless Controller
  Management Interfaces
• Web?based User Interface (Web UI): Telnet/SSH, Command Line Interface (CLI), SNMP v1/v2c/v3
• Security: SSID Security, Up to 32 SSIDs, 16 per radio, 802.1Q VLAN, Station Isolation, Wireless Security WPA/WPA2, Personal/Enterprise, AES and TKIP, Detection and Prevention, Rogue and valid AP classification Authentication
• Power Adapter
• External power adapter: 12 V DC 2.5 A (not included)
• Supports 802.3at PoE PD on LAN 1 Port
• Power over Ethernet (PoE) IEEE 802.3at
• Power Consumption: Maximum 20 W
• Operating: 0 to 40°C (32 to 104°F)
• Storage: ?20 to 65 °C (?4 to 149 °F)
• Operating: 10% to 90% noncondensing
• Storage: 5% to 95% noncondensing
• Weight: 0.57 kg (1.26 lbs) w/o bracket, 0.62 kg (1.37 lbs) w bracket
