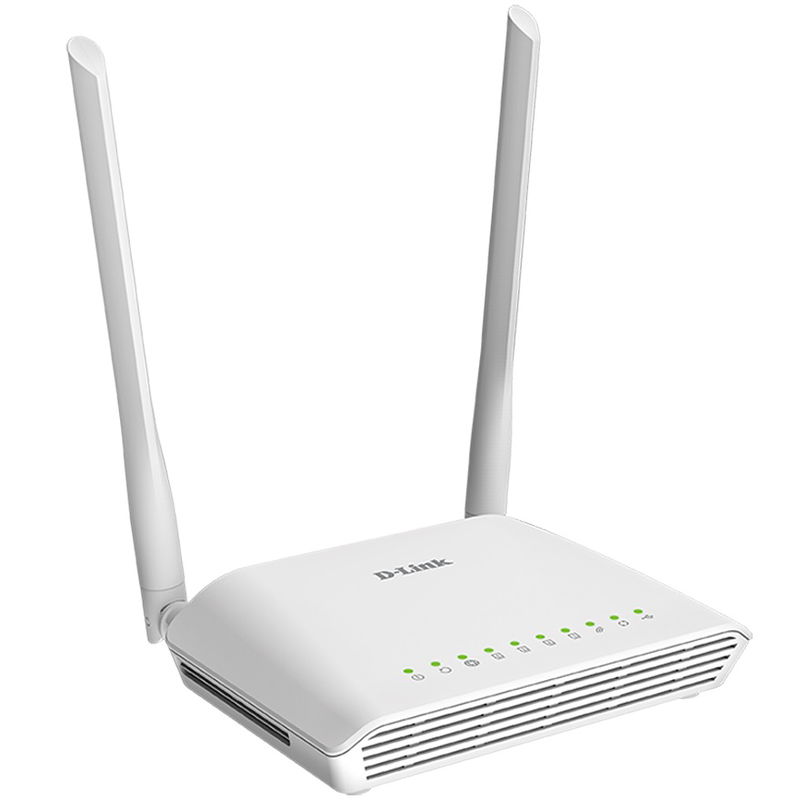

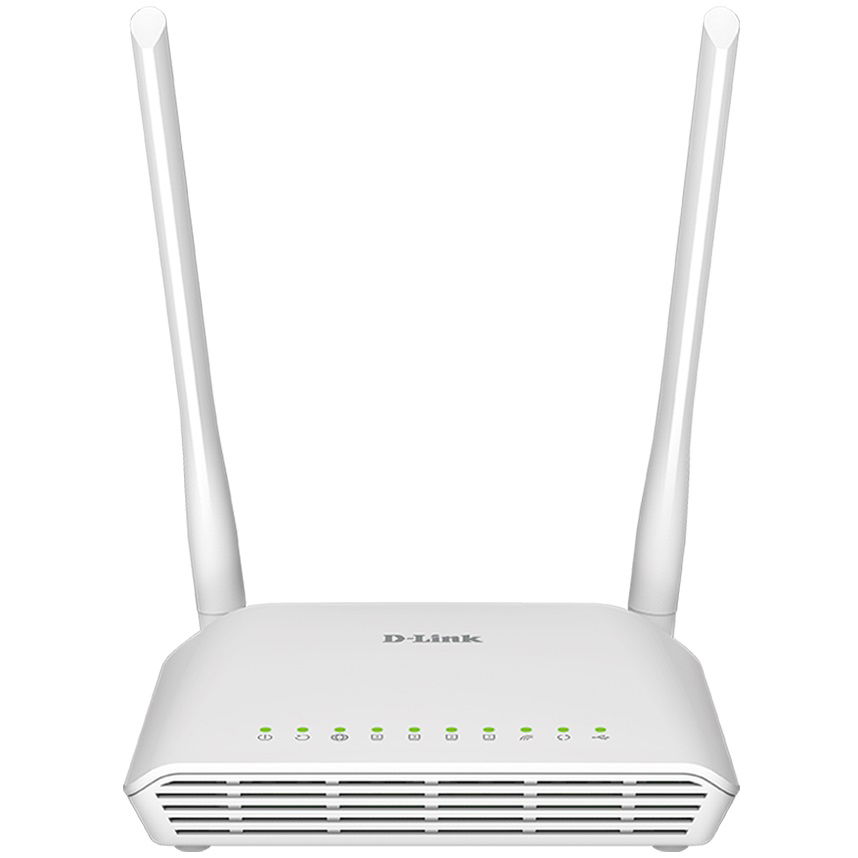

D-Link DSL-226 N300 VDSL2/ ADSL2 Plus Wireless Modem Router

The DSL-226 Wireless N300 ADSL2+/VDSL2 Modem Router is everything you need for high speed Internet access throughout your entire home or office. It combines both a VDSL2/ ADSL2+ modem and high-end wireless router together to create a single, easy-to-use device that connects to the Internet, and shares that connection with all of your wired and wireless devices. Its web-based configuration utility means you can easily set up and modify your network settings, for seamless connection with your ISP.

VDSL2/ADSL2+ Modem and Router in a Single Device:
The DSL-226 combines the functionality of a high-speed VDSL2/ADSL2+ broadband modem and a wireless router in one device, eliminating the need for separate modem and wireless router devices. Connect to your VDSL2/ADSL2+ Internet Service Provider with download speeds of up to 100 Mbps, then immediately share the Internet connection with both wireless and wired devices. Additionally, the 4th LAN port on DSL-226 is multi-purpose, accepting both WAN and LAN Ethernet connections, giving you the freedom to access the Internet via VDSL2/ ADSL2+, Cable, or other connection types.

Fast and Reliable Home Network:
The Wireless N300 ADSL2+/VDSL2 Modem Router is perfect for home or office environments; its high-speed wireless provides reliable connections to wireless devices, while Fast Ethernet LAN ports give you high-speed wired connection speeds. 802.11n wireless gives you the bandwidth to stream HD multimedia and feature-rich content across your home, so you can browse the Internet and stream digital media at speeds of up to 300 Mbps.

Easy to Set Up:
Get the DSL-226 up and running in no time using the intuitive web-based configuration utility. Simply connect the DSL-226 to your computer, launch the configuration wizard, and follow a few easy steps to get your home or office network up and running.

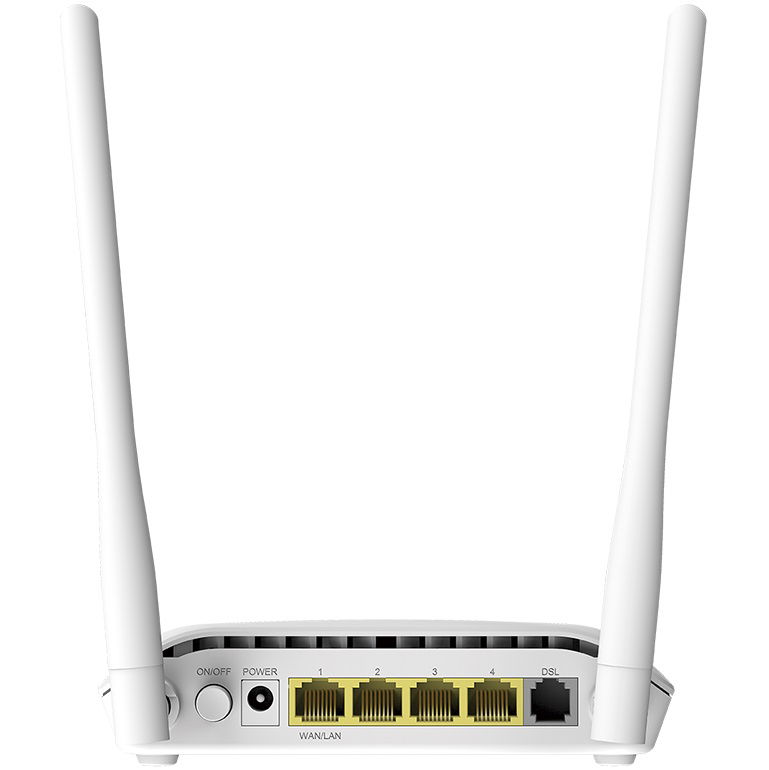

Device Interfaces:
• 802.11n/g/b Wireless LAN
• Four 10/100Base-TX LAN ports2
• DSL

Standards:
• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.11n/g/b

Minimum System Requirements:
• Windows 10/8/7/Vista/XP SP3 or Mac OS X 10.4 or higher
• Microsoft Internet Explorer 6.0, Firefox 3.0, Chrome 20.0, Safari 5.0
• Subscription with an Internet Service Provider (ISP)

General:
• Wireless
• EIRP on 2.4 GHz < 100 mW

Security:
• WPA & WPA2 (Wi-Fi Protected Access)
• WEP 64-bit and 128-bit
• Wi-Fi Protected Setup (WPS) - PIN/PBC

Advanced Features:
• Quality of Sevice (QoS)
• UPnP support
• Stateful Packet Inspection (SPI)
• Network Address Translation (NAT)
• VPN pass-through/multi-session PPTP/L2TP/IPSec
• WDS (Wireless Distribution System)

Device Configuration/ Management:
• Installation Wizard (Optional)
• Web-based GUI
• Code lock to prevent improper firmware upgrade
• Telnet
• Syslog monitoring

Physical:
• Dimensions: 141.2 x 100.1 x 35 mm (5.6 x 4 x 1.2 inches)
• Weight: 150 g (5.3 ounces)
• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -20 to 70 °C (-4 to 158 °F)
• Humidity: 5 % to 95 % non-condensing

• Wireless N300 ADSL2+/VDSL2 Modem Router
