Product Description:

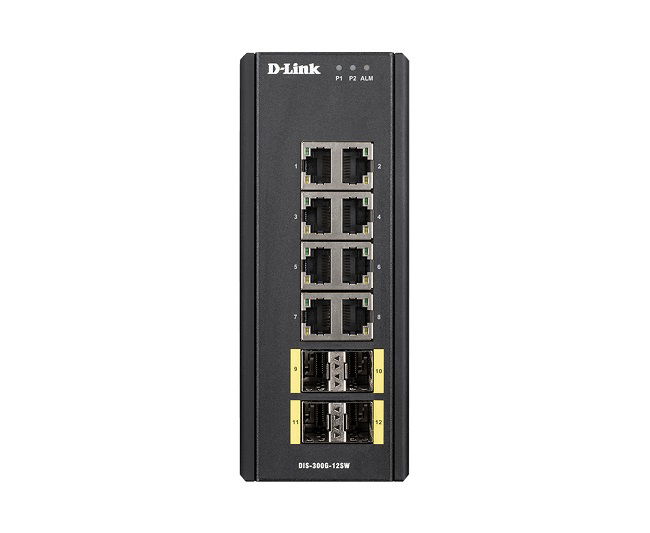

D-Link DIS-300G-12SW 12-Port Industrial Gigabit Managed Switch with SFP Slots
The Enabler of Future Industry. D-Link is enabling the success of Industry X.0, Smart Cities and Intelligent Transport Systems through ruggedized, built-to-last and super reliable solutions. Discover how our Industrial Switch Solutions can facilitate your success too.
Features:
Managed Customization:
Features user management interfaces, including an industrial-like CLI, and WEB-based management, the DIS-300G-12SW is easy to manage and provides the security and controls to guard and shape your network needs.
Gigabit Connectivity with SFP slots:
Designed with 8 x 100/1000BaseT ports and 4 x 100/1000Base SFP to suit a range of devices and network layouts.
Officially Certified:
Certifications for vibration, shock, free-fall, NEMA-TS2 Section 2, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures:
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.
Strong Build:
The tough housing has been created to keep your network protected and reliably rugged.
High Availability:
Rapid ring failover recovery time of < 20ms, with even faster PROFINET speeds available at project request.
Fast Deployment:
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Fanless Design:
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Discrete Size:
Small but mighty. To make the most of cabinet space, it measures: 61 x 154 x 109 mm.
Features user management interfaces, including an industrial-like CLI, and WEB-based management, the DIS-300G-12SW is easy to manage and provides the security and controls to guard and shape your network needs.
Gigabit Connectivity with SFP slots:
Designed with 8 x 100/1000BaseT ports and 4 x 100/1000Base SFP to suit a range of devices and network layouts.
Officially Certified:
Certifications for vibration, shock, free-fall, NEMA-TS2 Section 2, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures:
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.
Strong Build:
The tough housing has been created to keep your network protected and reliably rugged.
High Availability:
Rapid ring failover recovery time of < 20ms, with even faster PROFINET speeds available at project request.
Fast Deployment:
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Fanless Design:
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Discrete Size:
Small but mighty. To make the most of cabinet space, it measures: 61 x 154 x 109 mm.
Specifications:
• 1000Base-T Interface: 8
• 1000M SFP Interface: 4
• Auto MDI/MDIX: Yes
• Console Port: Yes
• Alarm Port: Yes
• Switching Capacity: 24Gbps
• Max. Packet Forwarding Rate: 17.86Mpps
• Operation Temperature: -40~75°C
• Storage Temperature: -40~85°C
• Operation Humidity: 5 to 95% RH
• Storage Humidity: 5 to 95% RH
• Operating Altitude: 2000m
• Maximum Power Consumption: 17W
• Power Input: 12-58Vdc dual input
• CPU Speed: 416MHz
• DRAM Size: 128MB
• Flash Memory Size: 16MB
• Packet Buffer Size: 4Mbit
• Fan: Fanless
• Dimensions (W x D x H): 154 x 61 x 109mm
• Weight: 1.086kg
• 1000M SFP Interface: 4
• Auto MDI/MDIX: Yes
• Console Port: Yes
• Alarm Port: Yes
• Switching Capacity: 24Gbps
• Max. Packet Forwarding Rate: 17.86Mpps
• Operation Temperature: -40~75°C
• Storage Temperature: -40~85°C
• Operation Humidity: 5 to 95% RH
• Storage Humidity: 5 to 95% RH
• Operating Altitude: 2000m
• Maximum Power Consumption: 17W
• Power Input: 12-58Vdc dual input
• CPU Speed: 416MHz
• DRAM Size: 128MB
• Flash Memory Size: 16MB
• Packet Buffer Size: 4Mbit
• Fan: Fanless
• Dimensions (W x D x H): 154 x 61 x 109mm
• Weight: 1.086kg
Additional Details:
-
Stock Availability: Out of Stock!
-
Warranty: 5 Years
-
Manufacturer: D-link Shop
-
Product Found In: Managed Switches
-
Model Number: DIS-300G-12SW
-
Part Number: T48848
