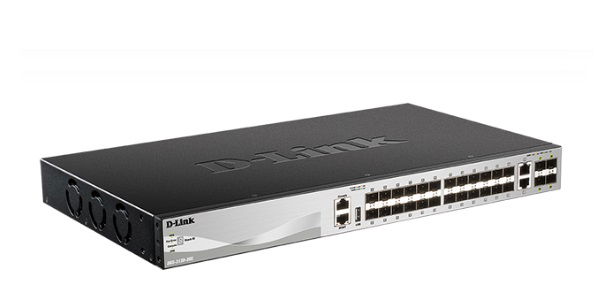

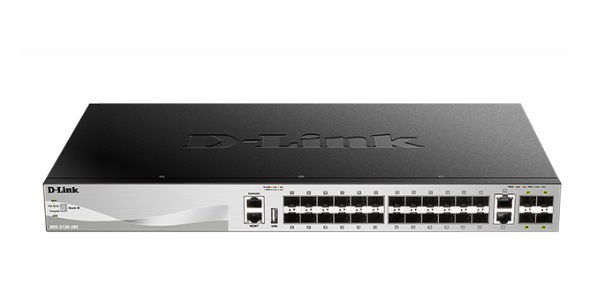

D-Link DGS-3130-30S 30-Port Layer 3 Gigabit Smart Managed Switch

The DGS-3130 Series switches are Lite Layer 3 Stackable Managed Switches designed to connect end-users in a secure enterprise or metro Ethernet access network. These switches support multicast, and enhanced security, making them an ideal Gigabit access layer solution. The DGS-3130-30TS/54TS provides 24 or 48 10/100/1000 Mbps Gigabit Ethernet ports. The DGS-3130-30PS/54PS provides 24 or 48 10/100/1000 Mbps Power over Ethernet (PoE) Gigabit Ethernet ports. The DGS-3130-30S/54S provides 24 or 48 SFP Gigabit Ethernet ports. Each 10/100/1000 Mbps port on the DGS-3130-30PS/54PS supports the 802.3af and 802.3at PoE standards.

_Seamless Integration_

• The DGS-3130 Series switches include a wide range of port and media types, including 10/100/1000BASE-T RJ-45 ports, 100/1000 Mbps SFP ports, 10GBASE-T RJ-45 copper 10Gb ports and 10Gb SFP+ ports, allowing you to choose the most suitable media type for your requirements. SFP ports can be used in conjunction with fibre optic transceivers to provide connectivity over longer distances. The 10GBASE-T RJ-45 ports offer high speed 10Gbps connectivity which can be used to connect server, network storage or to other switches. The SFP+ ports can also be used with fibre optic transceivers or for shorter distances can be connected via Direct Attach Cables (DEM-CB100S, DEM-CB300S, DEM-CB700S)

Enhanced Network Reliability

• All the models in the DGS-3130 Series support an external redundant power supply to ensure continued operation. They also include reliability features, such as 802.1D Spanning Tree (STP), 802.1w Rapid Spanning Tree (RSTP), and 802.1s Multiple Spanning Tree (MSTP), Loopback Detection (LBD), and Broadcast Storm Control, that enhances network resilience. G.8032 Ethernet Ring Protection Switching (ERPS) minimizes the recovery time to 50 ms. In addition each copper port in DGS-3130 Series switches has 6 kV surge protection buit-in for higher network reliability.

Comprehensive Security

• The DGS-3130 Series switches provide users with the latest security features such as Multi-layer and Packet Content Access Control Lists (ACL), Storm Control, and IP-MAC-Port Binding (IMPB) with DHCP Snooping. The IP-MAC-Port Binding feature allows administrators to bind a source IP address with an associated MAC and also defne the port number to enhance user access control. With the DHCP Snooping feature, the switch automatically learns IP/MAC pairs by snooping DHCP packets and saving them to the IMPB white list.

• Expansion Slot Type: SFP+
• Number of SFP Slots: 24
• Number of SFP+ Slots: 4
• Number of Total Expansion Slots: 28
• Shared SFP Slot: No
• Modular: Yes
• Port/Expansion Slot Details: 10 Gigabit Ethernet
• Stack Port: Yes
• Total Number of Network Ports: 2
• Uplink Port: Yes
• Manageable: Yes
• Media Type Supported: Optical Fiber
• Network Technology: 1000Base-X, 10GBase-X
• Environmental Certification: RoHS
• Environmentally Friendly: Yes
• Layer Supported: 3
• Power Source: Power Supply
• Redundant Power Supply Supported: Yes
• Dimensions (W x D x H): 440 x 250 x 44 mm
• Weight (Approximate): 3.21 kg
