Product Description:

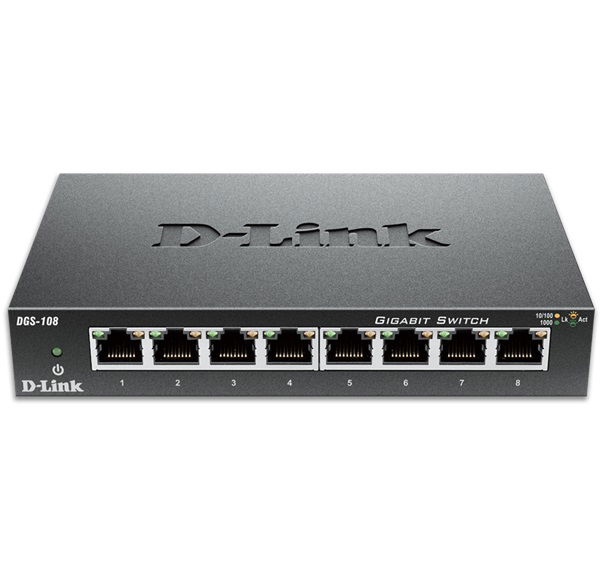

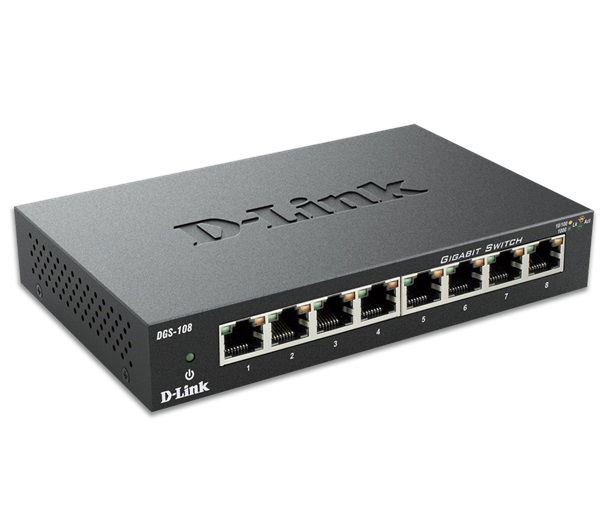

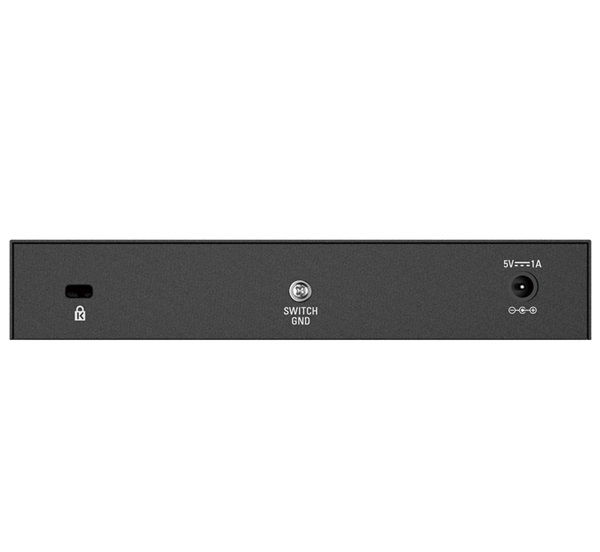

D-Link DGS-108 8-Port Gigabit Unmanaged Desktop Switch
More Ports. More Convenience. The DGS-108 8-Port Gigabit Unmanaged Desktop Switch offers an economical way for SOHO and small and medium businesses to benefit from the increased bandwidth of Gigabit Ethernet. It provides eight Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.
Features:
Online games, 4k video streaming, large file downloads - nothing beats wired Ethernet:
Smaller switches great for advanced home users that would prefer to not connect everything through WiFi and congesting their network. This switch functions like a powerstrip - one cable turns into multiple. Run a single cable from the router and then turn that cable to multiple gadgets.
Effortless Gigabit Networking:
Plug-and-play makes it easy to instantly create a network connected to the internet, without fiddling with any configurations whatsoever. Gigabit Ethernet transfer speeds make it ideal for transferring files quickly and online gaming. With front, easy-to-access Ethernet ports with two colour LED light indicators per port to make it easy to distinguish the link status. The switch features QoS, which organizes and prioritizes time-sensitive and important data for efficient delivery, allowing for smooth streaming media, VoIP calling, and online gaming.
IGMP Snooping:
When Internet Group Management Protocol (IGMP) snooping is enabled, the DGS-108 listens to IGMP conversations between hosts and routers and maintains a map of exactly which links need IP multicast streams, resulting in greater efficiency and smoother performance. Any links that do not need multicasts can be filtered, so you’re always in control of which ports specifically receive multicast traffic.
Think Green:
This switch saves energy and reduces heat, which in turn extends its product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which can detect when a connected computer is shut down or when there is no Ethernet traffic, and will proceed to power down the idle port, saving a substantial amount of power. In addition, the switch can also save energy by detecting the length of cable connected to a port and use only as much power as is required. Both of these features work together to help you save power automatically.
Designed with durability and performance in mind:
Its sturdy metal housing ensures the product can withstand wider operating by helping to dissipate heat and reduce stress on internal components.
Smaller switches great for advanced home users that would prefer to not connect everything through WiFi and congesting their network. This switch functions like a powerstrip - one cable turns into multiple. Run a single cable from the router and then turn that cable to multiple gadgets.
Effortless Gigabit Networking:
Plug-and-play makes it easy to instantly create a network connected to the internet, without fiddling with any configurations whatsoever. Gigabit Ethernet transfer speeds make it ideal for transferring files quickly and online gaming. With front, easy-to-access Ethernet ports with two colour LED light indicators per port to make it easy to distinguish the link status. The switch features QoS, which organizes and prioritizes time-sensitive and important data for efficient delivery, allowing for smooth streaming media, VoIP calling, and online gaming.
IGMP Snooping:
When Internet Group Management Protocol (IGMP) snooping is enabled, the DGS-108 listens to IGMP conversations between hosts and routers and maintains a map of exactly which links need IP multicast streams, resulting in greater efficiency and smoother performance. Any links that do not need multicasts can be filtered, so you’re always in control of which ports specifically receive multicast traffic.
Think Green:
This switch saves energy and reduces heat, which in turn extends its product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which can detect when a connected computer is shut down or when there is no Ethernet traffic, and will proceed to power down the idle port, saving a substantial amount of power. In addition, the switch can also save energy by detecting the length of cable connected to a port and use only as much power as is required. Both of these features work together to help you save power automatically.
Designed with durability and performance in mind:
Its sturdy metal housing ensures the product can withstand wider operating by helping to dissipate heat and reduce stress on internal components.
Specifications:
General:
• Device Interfaces: 8 10/100/1000BASE-T ports
• Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.1p QoS, IEEE 802.3az Energy-Efficient Ethernet (EEE)
• Media Interface Exchange: Auto MDI/MDIX adjustment for all ports
Performance:
• Transmission Method: Store-and-forward
• Data Transfer: Rates Ethernet: 10 Mbps (half-duplex) , 20 Mbps (full-duplex) ; Fast Ethernet: 100 Mbps (half-duplex) , 200 Mbps (full-duplex) ; Gigabit Ethernet: 2000 Mbps (full-duplex)
• Packet Filtering/Forwarding Rates: Ethernet: 14,880 pps per port, Fast Ethernet: 148,800 pps per port, Gigabit Ethernet: 1,488,000 pps per port
• MAC Address Table: 4K entries
• MAC Address Learning: Automatic update
• RAM Buffer: 192 KB
Physical:
• Dimensions: 162 x 102 x 28 mm
• Weight: 415 grams
• Power Consumption: Powered on (standby): DC input: 0.4 W, AC input: 0.4 W ; Maximum: DC input: 3.05 W, AC input: 4.62 W
• Temperature: Operating: 0 to 45 °C (32 to 104 °F), Storage: -10 to 70 °C (14 to 158 °F)
• Humidity: Operating: 0% to 95% non-condensing, Storage: 0% to 95% non-condensing
• Device Interfaces: 8 10/100/1000BASE-T ports
• Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.1p QoS, IEEE 802.3az Energy-Efficient Ethernet (EEE)
• Media Interface Exchange: Auto MDI/MDIX adjustment for all ports
Performance:
• Transmission Method: Store-and-forward
• Data Transfer: Rates Ethernet: 10 Mbps (half-duplex) , 20 Mbps (full-duplex) ; Fast Ethernet: 100 Mbps (half-duplex) , 200 Mbps (full-duplex) ; Gigabit Ethernet: 2000 Mbps (full-duplex)
• Packet Filtering/Forwarding Rates: Ethernet: 14,880 pps per port, Fast Ethernet: 148,800 pps per port, Gigabit Ethernet: 1,488,000 pps per port
• MAC Address Table: 4K entries
• MAC Address Learning: Automatic update
• RAM Buffer: 192 KB
Physical:
• Dimensions: 162 x 102 x 28 mm
• Weight: 415 grams
• Power Consumption: Powered on (standby): DC input: 0.4 W, AC input: 0.4 W ; Maximum: DC input: 3.05 W, AC input: 4.62 W
• Temperature: Operating: 0 to 45 °C (32 to 104 °F), Storage: -10 to 70 °C (14 to 158 °F)
• Humidity: Operating: 0% to 95% non-condensing, Storage: 0% to 95% non-condensing
Additional Details:
-
Stock Availability: 22 In Stock Now
-
Warranty: 3 Years
-
Manufacturer:
D-link Shop
-
Product Found In: Un-Managed Switches
-
Model Number: DGS-108
-
Part Number: DS003326
