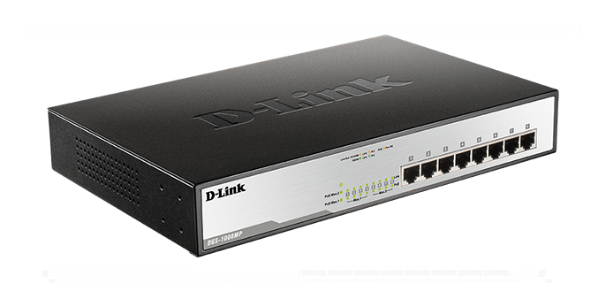

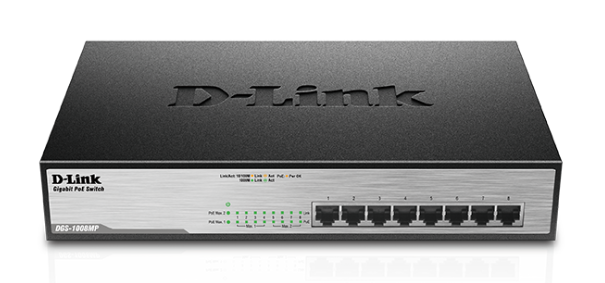

D-Link DGS-1008MP 8-Ports 2 Layer Unmanaged Rackmount Switch

The DGS-1008MP features 8 x 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ protocol. Each of the 8 PoE+ ports can supply up to 30 watts with a total PoE power budget of 140 watts. PoE is especially suitable for devices that are far from power outlets or when you want to minimize the clutter of extra cables.

Superior Performance

• No configuration is required and installation is quick and easy. Support for Auto MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch. Auto- Negotiation on each port senses the link speed of a network device (10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. The switch has been designed without fans ensuring silent operation wherever it is installed. With wire-speed filtering and store-and-forward switching, the DGS-1008MP maximises network performance while minimising the transmission of bad network packets.

Energy Saving

• DGS-1008MP switches feature both D-Link Green 3.0 Technology and IEEE802.3az Energy Efficient Ethernet (EEE) to cut operating costs without sacrificing operational performance or functionality. With D-Link Green technology, the switches constantly monitor the link status and network utilisation of every port. The switches also automatically detect cable length and can reduce transmission power usage for shorter cables. By pairing EEE capable devices with DGS-1008MP switches organizations can drastically reduce power consumption by automatically putting ports into a sleep mode when not being used.

_PoE_

• The DGS-1008MP features 8 x 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ protocol. Each of the 8 PoE+ ports can supply up to 30 watts with a total PoE power budget of 140 watts. PoE is especially suitable for devices that are far from power outlets or when you want to minimise the clutter of extra cables.

General:

• Size: 11-inch Desktop/Rackmount size, 1U height

Number of Ports:

• 8 10/100/1000 Mbps Ports

Port Standards & Functions:

• IEEE 802.3i 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3at Power over Ethernet, IEEE 802.3az Energy Efficient Ethernet, IEEE 802.3x Flow Control supports half/full duplex mode, ANSI/IEEE, 802.3 NWay auto-negotiation

Switching Capacity:

• 16 Gbps switching fabric

Media Interface Exchange:

• Auto MDI/MDI-X

Transmission Method:

• Store-and-forward

MAC Address Table:

• 8K entries per device

Packet Buffer Memory:

• 128 KB per device

Packet Filtering / Forwarding Rates:

• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port
• Gigabit Ethernet: 1,488,000 pps per port

Data Transfer Rates:

• Ethernet
• 10 Mbps (half duplex) 20 Mbps (full duplex)
• Fast Ethernet 100 Mbps (half duplex) 200 Mbps (full duplex)
• Gigabit Ethernet 2000 Mbps (full duplex)

Network Cables:

• 10BASE-T UTP CAT 3/4/5/5e (100 m max) EIA/TIA-586 100-ohm STP (100 max) 100BASE-TX, UTP CAT 5/5e (100 m max)
  EIA/TIA-568 100-ohm STP (100 max.) 1000BASE-T, UTP CAT 5/5e(100 m max.) EIA/TIA-568 100-ohm STP(100 max.)

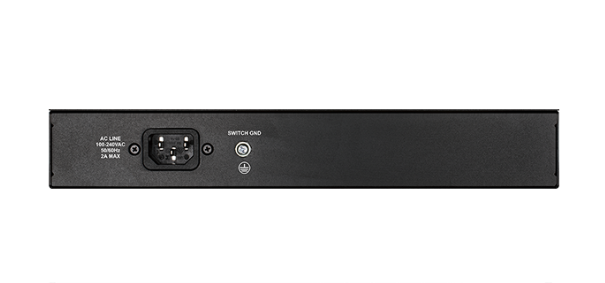

Power Input:

• AC Input: 100 to 240 V AC, 50/60 Hz
• Maximum PoE Budget
• 140 watts

Power Consumption:

• 13.5 watts (PoE off)
• 151 watts (PoE on)
• PoE up to 30 watts per port

Temperature:

• Operating: 0 to 40 °C
• Storage: -10 to 70 °C

Humidity:

• Operating: 0% to 95% RH non-condensing
• Storage: 5% to 95% RH non-condensing

Dimensions:

• 280 mm x 180 mm x 44 mm (11.02 x 7.08 x 1.73 inches)
