Product Description:

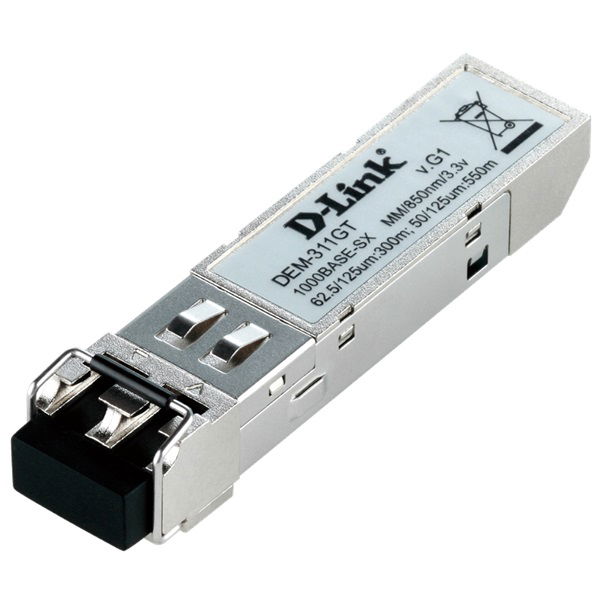

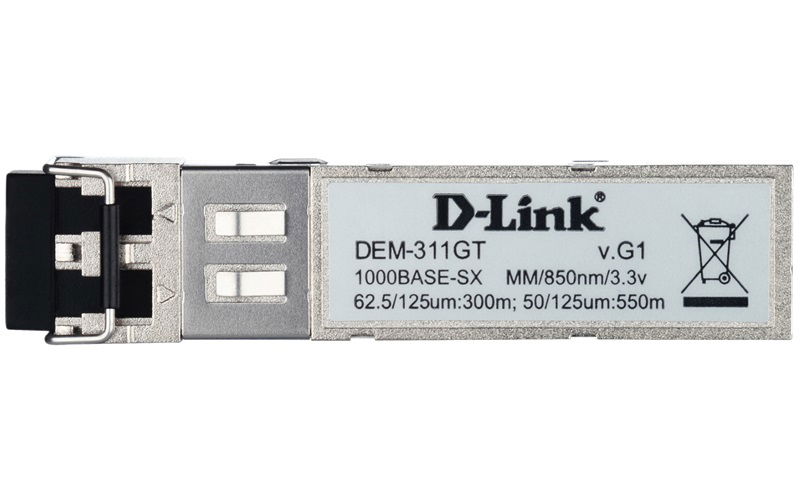

D-Link DEM‑311GT SFP 1000Base-SX Multi-mode Fibre Transceiver
D-Link’s new line of Gigabit Interface Converters (GBICs) and Small Form-Factor Pluggables (SFPs) transceivers represent an industry leading combination of performance and affordability. D-Link’s new Gigabit transceivers are available in two form-factors: standard (GBIC) or (SFP)/mini-GBIC. The DEM-311GT is a high performance 850nm multimode SFP/mini-GBIC transceiver. Supporting full duplex, Gigabit speeds on multimode fiber for distances of up to 220m/550m on 62.5µm/50µm fiber respectively. The unit features a metal housing to reduce EMI and to increase durability.
Features:
Small Form Pluggable (SFP) Package:
The Gigabit SFP Transceivers use the Small Form-factor Pluggable (SFP) design. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa. The SFP form factor is advantageous because it is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density.
Multiple Applications:
Applications of the DEM-300 Series fibre transceivers include distributed multi-processing, Gigabit switch cascading, high-speed I/O file transfer, bus extension application, and channel extender/data storage. This versatility is invaluable for an expanding network, and helps the infrastructure grow with the business.
Hot Pluggable:
All D-Link transceivers are hot pluggable. You can connect a transceiver while the system is powered on without causing any issues and easily swap one for another without having to reboot the switch each time. This permits modules to be added or removed without interrupting the network, facilitating maintenance and greatly reducing downtime
The Gigabit SFP Transceivers use the Small Form-factor Pluggable (SFP) design. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa. The SFP form factor is advantageous because it is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density.
Multiple Applications:
Applications of the DEM-300 Series fibre transceivers include distributed multi-processing, Gigabit switch cascading, high-speed I/O file transfer, bus extension application, and channel extender/data storage. This versatility is invaluable for an expanding network, and helps the infrastructure grow with the business.
Hot Pluggable:
All D-Link transceivers are hot pluggable. You can connect a transceiver while the system is powered on without causing any issues and easily swap one for another without having to reboot the switch each time. This permits modules to be added or removed without interrupting the network, facilitating maintenance and greatly reducing downtime
Specifications:
Product/Performance Specifications:
• Optical Receiver Sensitivity: -18dBm (max)
Interface Options:
• Connector Type: LC
Operational Ranges:
• Support Voltage: 3.1-3.5V
• Max Voltage: 6.0V
• Max Current: 300mA
Safety Certifications and Environmental Information:
• Class 1 Laser: EN 60825-1
• FDA 21: 1040.10 & 1040.11
Physical Specifications:
• Dimensions (WxDxH): 13.8 x 57.2 x 8.5 mm
• Optical Receiver Sensitivity: -18dBm (max)
Interface Options:
• Connector Type: LC
Operational Ranges:
• Support Voltage: 3.1-3.5V
• Max Voltage: 6.0V
• Max Current: 300mA
Safety Certifications and Environmental Information:
• Class 1 Laser: EN 60825-1
• FDA 21: 1040.10 & 1040.11
Physical Specifications:
• Dimensions (WxDxH): 13.8 x 57.2 x 8.5 mm
Additional Details:
-
Stock Availability: 6 In Stock Now
-
Warranty: 2 Years
-
Manufacturer:
D-link Shop
-
Product Found In: GBICS
-
Model Number: DEM-311GT
-
Part Number: DS003327
