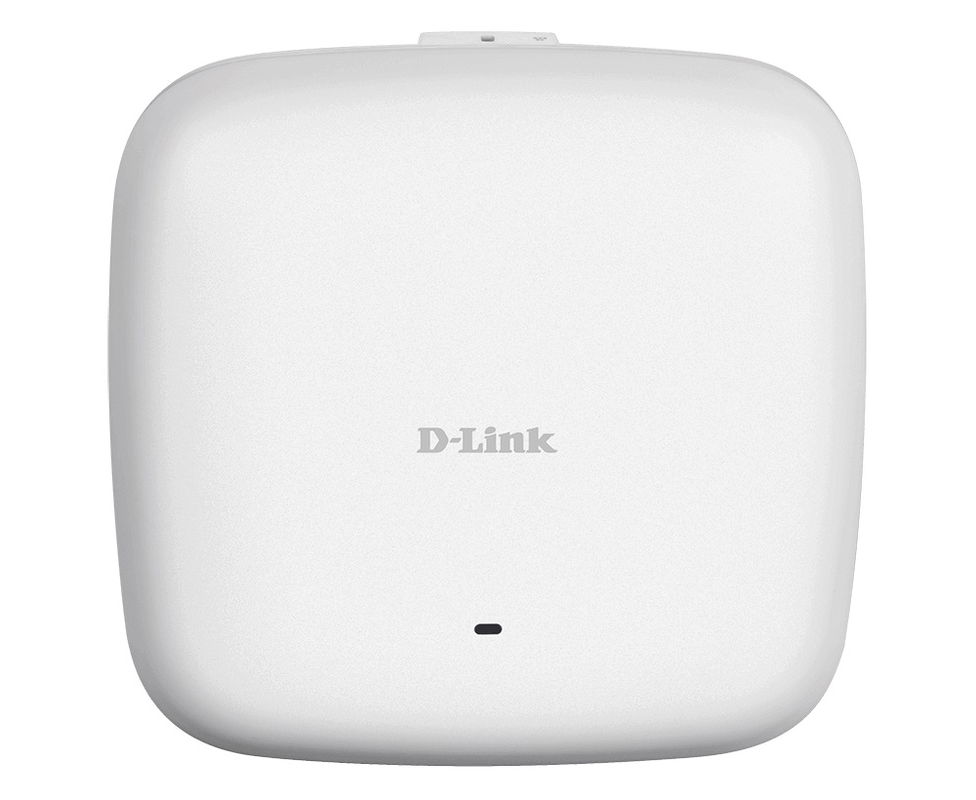

D-Link AC1750 Wave 2 Concurrent Dual-Band POE Access Point

Cutting-edge wireless Wave 2 AC performance perfect for small to medium business or enterprise environments.

Faster Wi‑Fi, Faster Business:
The DAP‑2680 Wireless AC1750 Wave 2 Dual‑Band PoE Access Point features cutting‑edge Wave 2 technology that brings greater speeds, efficiency, and security to your wireless customers. Perfect for small to medium business or enterprise environments.

Be the best with Wave 2:
Boost your business network to maximum wireless signal rates of up to 450 Mbps over the 2.4GHz band, and 1300 Mbps over the 5GHz band.

Beamforming with MU‑MIMO:
Beamforming focuses the Wi-Fi signal to improve both range and connection strength so your clients can enjoy a superior Wi-Fi experience. Built-in Multiple-Input and Multiple-Output (MU-MIMO) technology gets high-bandwidth Wi-Fi signals to multiple devices simultaneously.

Business Quality of Service:
The Wi-Fi Multimedia (WMM) and Quality of Service (QoS) features make it an ideal access point for audio, video, and voice applications. When enabled, QoS allows the DAP-2680 to automatically prioritise network traffic.

Easy‑mount setup:
The DAP-2680 can be ceiling mounted, wall mounted or placed on a desk. Integrated 802.3at Power over Ethernet (PoE) enables the device to be deployed easily and in more areas, where power outlets are not readily available.

Multiple Operation Modes:
Configure your DAP-2680 access point to meet your specific wireless network requirements with any one of its multiple operation modes: Access Point, Wireless Distribution System (WDS), a WDS with Access Point, and Wireless Client.

Highlights:

• The latest wireless technology Wave 2 802.11ac
• Concurrent 2.4GHz and 5GHz dualband
• 3x3 antenna design for 2.4GHz and 5GHz
• Up to 1720 Mbps throughput
• PoE+ support (802.3at)
• MU-MIMO, Airtime Fairness and Band Steering technologies
• High power 26dBm design
• Multiple operating modes

Technical Specification:

• Management Options: Standalone|Software Managed
• Wi-Fi Bands: Dual Band 2.4 and 5 GHz
• AP Design: Indoor|Built-in Antennas|PoE+
• Central Management: Nuclias Connect|Nuclias Connect Hub
• Wi-Fi Type: Wireless AC1750
• Antenna Type: Built-in
• Auto Channel Selection: Yes
• Dimensions (Size): 190 x 190 x 44.8 mm
• LAN Interface: 1 x Gigabit
• Operation Modes: AP|WDS (Site-to-Multisite)|WDS+AP|AP Client
• PoE Standard: PoE+ 802.3at
• Security: 802.1x|WPA/WPA2-EAP| WPA/WPA2-PSK|WEP|MAC filtering
• Number of SSIDs: 16
• Warranty: Limited Lifetime
• Indoor or Outdoor: Indoor Deployment
• Wi-Fi Configuration: 2.4 GHz / 5 GHz Dual Band|Wireless AC1750
