Key Details:
- Model: WR6500H
- Part #: CD006682
- Warranty: 3 Years
- Brand: Cudy
Ask Our Experts:

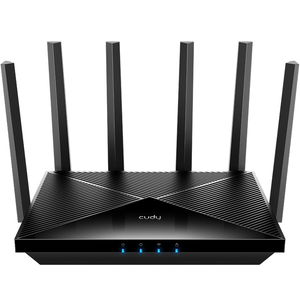

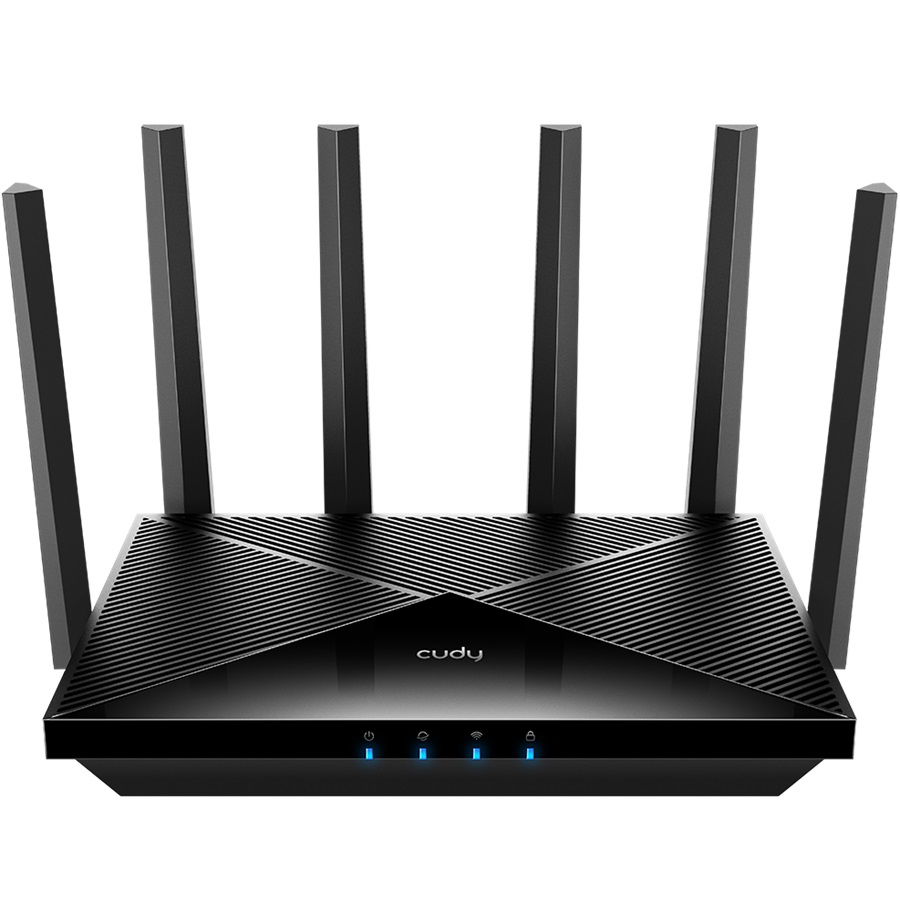

CUDY BE6500 2.5G Dual-Band Wi-Fi 7 Router
A dual-band WiFi 7 router with an aggregate of 6.5 Gbps speed, one 2.5G WAN, and four Gigabit LAN, catering to multi-Gig internet access, gaming, and entertainment scenarios.
Powerful CPU. Super-Responsive:
Feel the instantaneous respond and smooth operation when browsing, streaming, and gaming, even when connecting numerous devices. The advanced Quad-Core CPU and 512 MB large RAM provides big bump in processing power with higher capacity.
Lightning-Fast Response for Multiple Devices:
Featuring smarter Multi-RU and Puncturing spectrum reuse technology, WR6500 significantly boosts interference resistance, optimizes spectrum usage, and ensures lower latency for gaming, calls, and web browsing across multiple devices.
Optimal Wi-Fi Range for Extra Rooms:
The high-gain antennas with Beamforming technology offer stronger, more focused Wi-Fi signals towards client devices, delivering faster speeds and greater stability throughout your home or office.
Seamless Whole-Home Wi-Fi:
One network, no switching needed. Easy setup with wireless pairing or auto wired connections. Seamless switching for smooth whole-home coverage.
Parental Controls:
Set Wi-Fi schedules and block inappropriate content to keep your family safe online. Easily manage multiple devices with customization profiles.
CPU:
- CPU Details: 2.0 GHz Quad-core, ARM Cortex-A7
Memory/Storage:
- Flash/ROM: 128 MB (1 Gbit) NAND
- DDR/RAM: 512 MB (4 Gbit) DDR4
Wireless:
- 5 GHz Wi-Fi Speed: 5765 Mbps
- 2.4 GHz Wi-Fi Speed: 688 Mbps
- 5 GHz Wi-Fi Streams: 4T4R (4×4 MIMO)
- 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
- Wi-Fi Antennas: 6× Fixed
- 5 GHz Antenna Gain Max: 5.27dBi
- 2.4 GHz Antenna Gain Max: 5.19dBi
- FEM or PA/LNA: 5 GHz: 4× External, 2.4 GHz: 2× Internal
- Beamforming: True
- Range Performance: Max: 240 m (787 ft)
- Wall Performance: Two wooden walls with thickness < 10 cm (4''), One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
Interfaces:

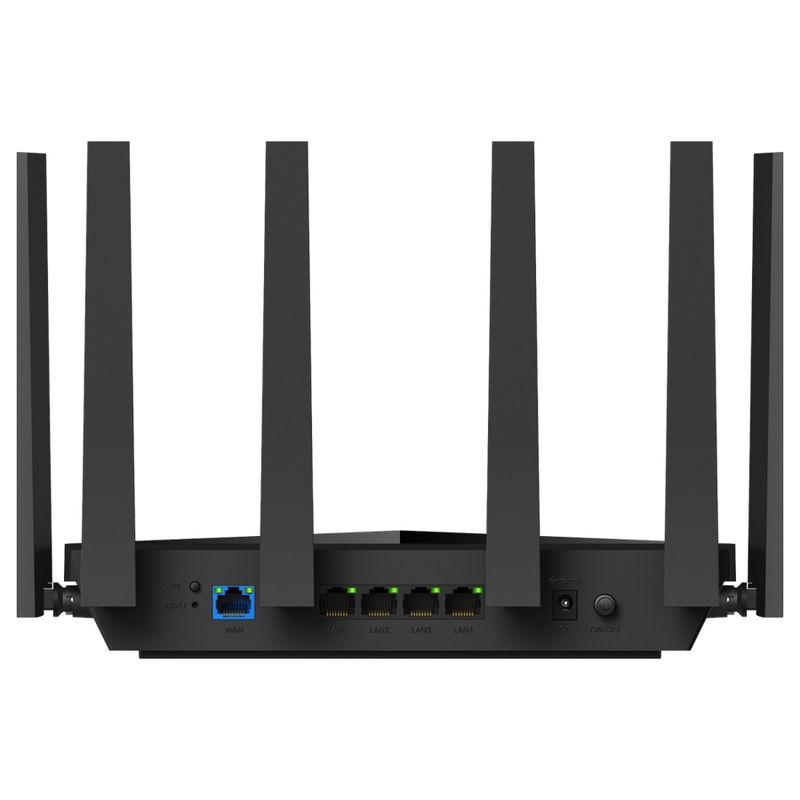

- 2.5G RJ45 Ports: 1
- Gigabit RJ45 Ports: 4
- Ethernet Notes: The 2.5G port is WAN port, the Gigabit ports are LAN ports
- LED: System, Internet, Wi-Fi, WPS
- Physical Buttons: Power On/Off Button, WPS Button, Reset Button
- Power Input: DC Jack
Power:
- Power Methods: DC
- DC Input: 12V 1.5A
- Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC, Output: 12V 1.5A DC
- Max Power Consumption (W): 17W
Environment:
- Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
- Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
- Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 95% non-condensing
Mechanical:
- Installation: Desktop, Wall-mount
- Dimension: 253×152.5×48.2 mm
- Weight: 580.4 g (20.47 oz.)
- WR6500H
- Power Adapter
- Ethernet Cable
- Installation Guide
