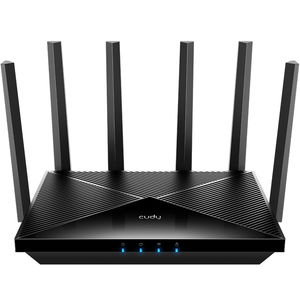

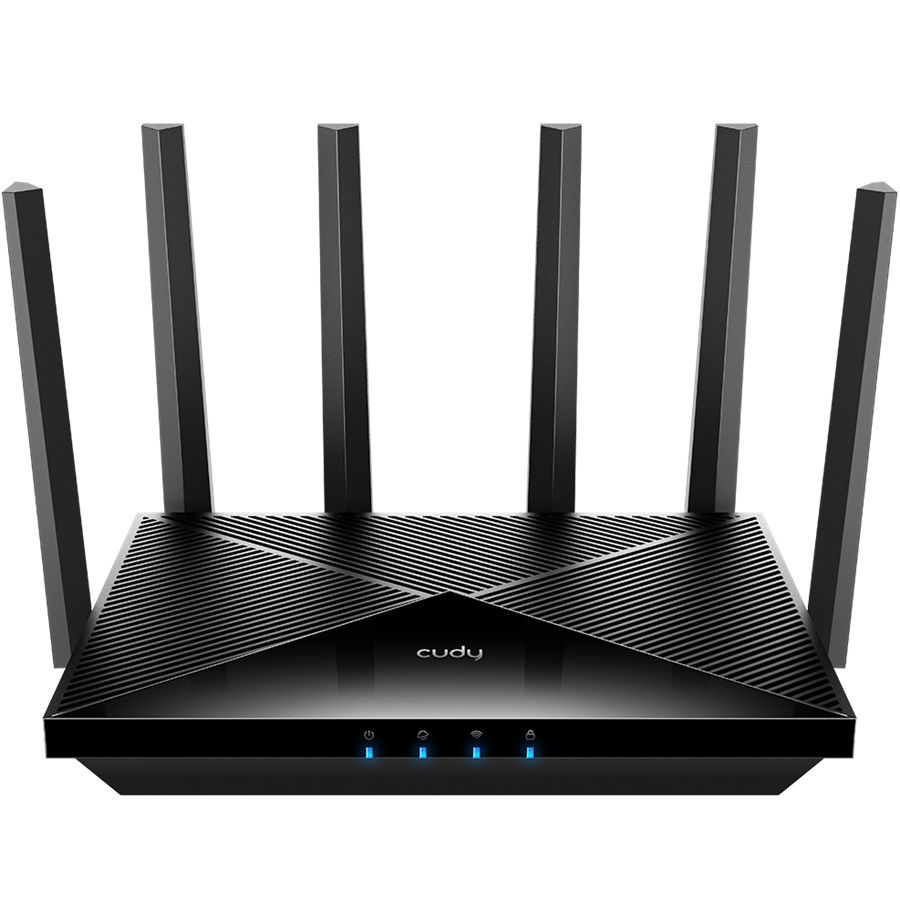

CUDY BE6500 Dual-Band Wi-Fi 7 Router

A dual-band WiFi 7 router with an aggregate of 6.5 Gbps speed, and five Gigabit ports, catering to super-fast internet access, gaming, and entertainment scenarios.

Powerful CPU. Super-Responsive:
Feel the instantaneous respond and smooth operation when browsing, streaming, and gaming, even when connecting numerous devices. The advanced Quad-Core CPU and 512 MB large RAM provides big bump in processing power with higher capacity.

Lightning-Fast Response for Multiple Devices:
Featuring smarter Multi-RU and Puncturing spectrum reuse technology, WR6500 significantly boosts interference resistance, optimizes spectrum usage, and ensures lower latency for gaming, calls, and web browsing across multiple devices.

Optimal Wi-Fi Range for Extra Rooms:
The high-gain antennas with Beamforming technology offer stronger, more focused Wi-Fi signals towards client devices, delivering faster speeds and greater stability throughout your home or office.

Seamless Whole-Home Wi-Fi:
One network, no switching needed. Easy setup with wireless pairing or auto wired connections. Seamless switching for smooth whole-home coverage.

Parental Controls:
Set Wi-Fi schedules and block inappropriate content to keep your family safe online. Easily manage multiple devices with customization profiles.

CPU:

• CPU Details: 2.0 GHz Quad-core, ARM Cortex-A7

Memory/Storage:

• Flash/ROM: 128 MB (1 Gbit) NAND
• DDR/RAM: 512 MB (4 Gbit) DDR4

Wireless:

• 5 GHz Wi-Fi Speed: 5765 Mbps
• 2.4 GHz Wi-Fi Speed: 688 Mbps
• 5 GHz Wi-Fi Streams: 4T4R (4×4 MIMO)
• 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• Wi-Fi Antennas: 6× Fixed
• 5 GHz Antenna Gain Max: 5.27dBi
• 2.4 GHz Antenna Gain Max: 5.19dBi
• FEM or PA/LNA: 5 GHz: 4× External, 2.4 GHz: 2× Internal
• Beamforming: True
• Range Performance: Max: 240 m (787 ft)
• Wall Performance: Two wooden walls with thickness < 10 cm (4''), One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

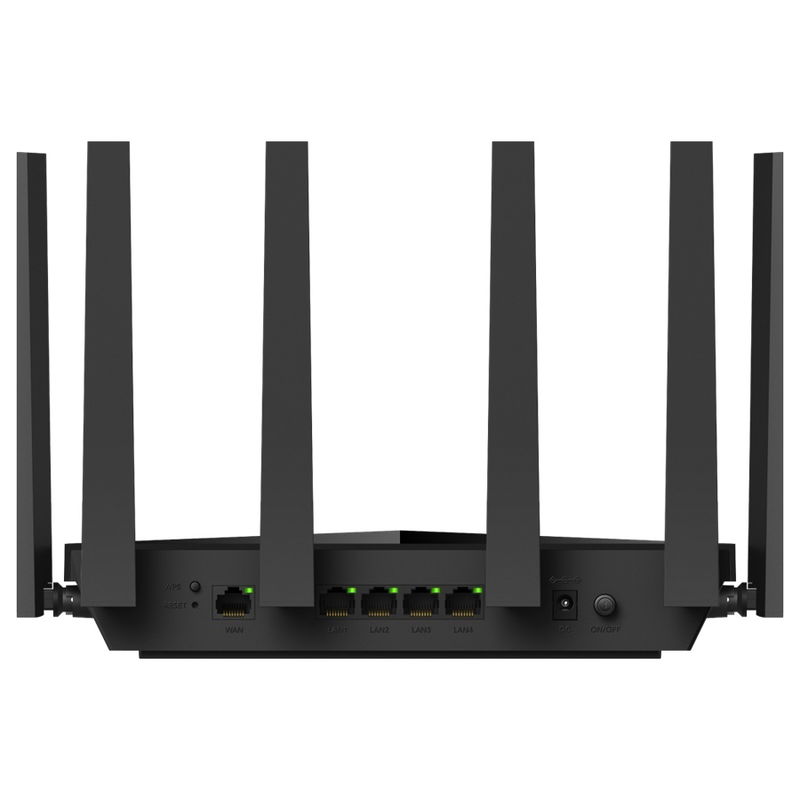

Interfaces:

• Gigabit RJ45 Ports: 5
• Ethernet Notes: 1× WAN port, the rest are LAN ports
• LED: System, Internet, Wi-Fi, WPS
• Physical Buttons: Power On/Off Button, WPS Button, Reset Button
• Power Input: DC Jack

Power:

• Power Methods: DC
• DC Input: 12V 1.5A
• Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC, Output: 12V 1.5A DC
• Max Power Consumption (W): 17W

Environment:

• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing

Mechanical:

• Installation: Desktop, Wall-mount
• Dimension: 253×152.5×48.2 mm
• Weight: 580.0 g

• WR6500
• Power Adapter
• Ethernet Cable
• Installation Guide
