Product Description:

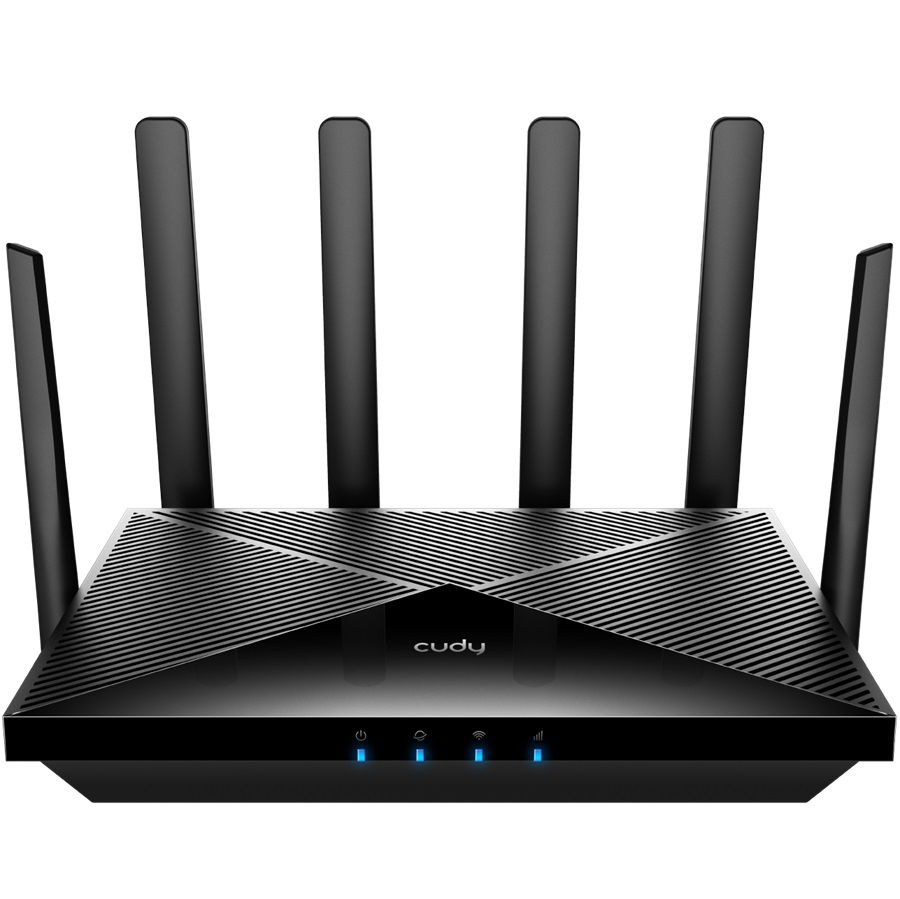

CUDY P5 5G SA/NSA AX3000 Wi-Fi 6 Router
A 5G WiFi 6 router employing the 3GPP Release 16 standard, with a max 3.4 Gbps download speed. It features complete Qualcomm solutions, dual SIM slots, and a high-capacity AX3000 WiFi 6.
Features:
Lightning-fast 5G Connectivity:
Cudy 5G Router employs 3GPP Rel. 16 technology, it supports both 5G NSA and SA modes, covers all the main stream carriers worldwide.
Redundant SIM Slots:
Dual SIM slots provide redundancy and keep the device always online. Both SIM slots can be filled, you can choose whether to use SIM card 1 or SIM card 2, or auto select by Cudy.
WAN Internet, Cellular Backup:
Set WAN/LAN port as WAN to enable Cudy use the landline internet from WAN, and 4G/5G connection works as a backup to provide a sustained and reliable internet connection for you.
External SMA Antenna connector:
Combined with 4 detachable SMA Antenna interface to connect outdoor cellular antennas for better and stable signal.
Band Lock:
Band lock make it possible to lock the 4/5G working frequency to one or several bands to keep the stability of operation.
TTL Settings:
Support manual set TTL values to meet ISP's requirement(such as Verizon, Visible). Support set IPv4 TTL and IPv6 HL Values.
DNS over TLS:
Support DNS Encryption with Cloudflare, Google, or Quad9, protects your privacy, prevents eavesdropping and manipulation of DNS
data via man-in-the-middle attacks.
Cudy 5G Router employs 3GPP Rel. 16 technology, it supports both 5G NSA and SA modes, covers all the main stream carriers worldwide.
Redundant SIM Slots:
Dual SIM slots provide redundancy and keep the device always online. Both SIM slots can be filled, you can choose whether to use SIM card 1 or SIM card 2, or auto select by Cudy.
WAN Internet, Cellular Backup:
Set WAN/LAN port as WAN to enable Cudy use the landline internet from WAN, and 4G/5G connection works as a backup to provide a sustained and reliable internet connection for you.
External SMA Antenna connector:
Combined with 4 detachable SMA Antenna interface to connect outdoor cellular antennas for better and stable signal.
Band Lock:
Band lock make it possible to lock the 4/5G working frequency to one or several bands to keep the stability of operation.
TTL Settings:
Support manual set TTL values to meet ISP's requirement(such as Verizon, Visible). Support set IPv4 TTL and IPv6 HL Values.
DNS over TLS:
Support DNS Encryption with Cloudflare, Google, or Quad9, protects your privacy, prevents eavesdropping and manipulation of DNS
data via man-in-the-middle attacks.
Specifications:
CPU:
• CPU Details 1.0 GHz Dual-core, ARM Cortex-A53
Memory/Storage:
• Flash/ROM: 128 MB (1 Gbit) NAND
• DDR/RAM: 256 MB (2 Gbit) DDR3
Cellular:
• Cellular Standards: 5G Rel. 16; DL 4G Cat. 19 / UL 4G Cat. 18
• Cellular Antennas: 4× Detachable
• Detachable Cellular Antennas Connector: SMA Female
• SIM Options: 2× Nano SIM Slots
Wireless:
• 5 GHz Wi-Fi Speed: 2402 Mbps
• 2.4 GHz Wi-Fi Speed: 574 Mbps
• 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• Wi-Fi Antennas: 2× Fixed
• 5 GHz Antenna Gain Max: 4.79 dBi
• 2.4 GHz Antenna Gain Max: 3.59 dBi
• Beamforming: True
• FEM or PA/LNA: 5 GHz: 2× External; 2.4 GHz: 2× External
• Range Performance: Max: 170 m (558 ft)
• Wall Performance: Two wooden walls with thickness < 10 cm (4''); One concrete wall with thickness < 20 cm (7'')

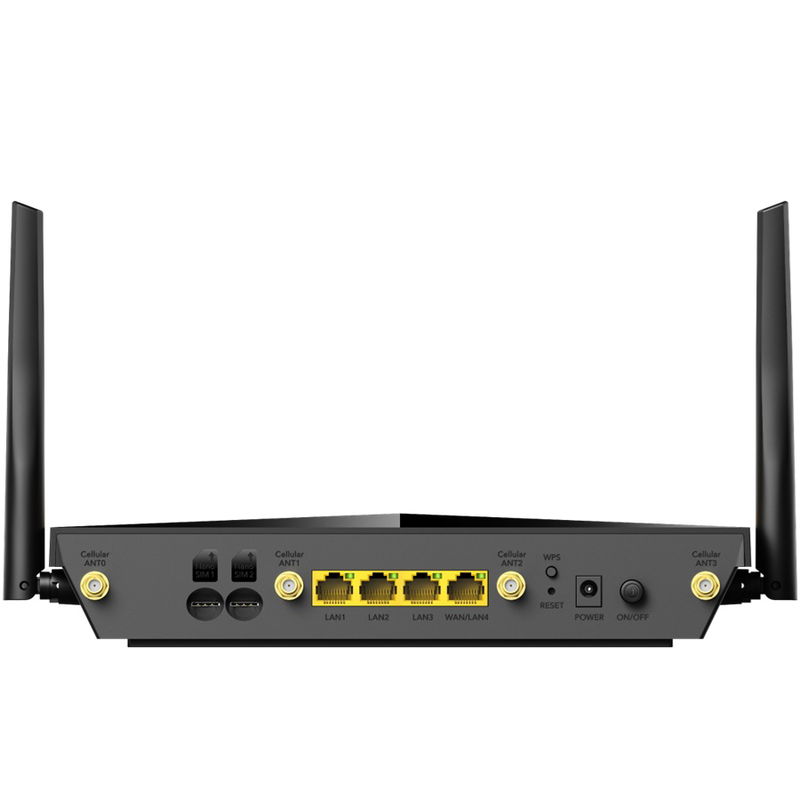

Interfaces:
• Physical Buttons: WPS Button, Reset Button
• Gigabit RJ45 Ports: 4
• Ethernet Notes: 1× RJ45 port is WAN/LAN configurable, and the rest are LAN ports
• LED: Power, Internet, Wi-Fi, Cellular
• Power Input: DC Jack
Power:
• Power Methods: DC
• DC Input: 12V 2.5A
• Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC, Output: 12V 2.5A DC
Environment:
• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 90% non-condensing
Mechanical:
• Dimension: 253×152.5×48.2 mm
• Weight: 670 g
• Installation: Desktop, Wall-mount
• CPU Details 1.0 GHz Dual-core, ARM Cortex-A53
Memory/Storage:
• Flash/ROM: 128 MB (1 Gbit) NAND
• DDR/RAM: 256 MB (2 Gbit) DDR3
Cellular:
• Cellular Standards: 5G Rel. 16; DL 4G Cat. 19 / UL 4G Cat. 18
• Cellular Antennas: 4× Detachable
• Detachable Cellular Antennas Connector: SMA Female
• SIM Options: 2× Nano SIM Slots
Wireless:
• 5 GHz Wi-Fi Speed: 2402 Mbps
• 2.4 GHz Wi-Fi Speed: 574 Mbps
• 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• Wi-Fi Antennas: 2× Fixed
• 5 GHz Antenna Gain Max: 4.79 dBi
• 2.4 GHz Antenna Gain Max: 3.59 dBi
• Beamforming: True
• FEM or PA/LNA: 5 GHz: 2× External; 2.4 GHz: 2× External
• Range Performance: Max: 170 m (558 ft)
• Wall Performance: Two wooden walls with thickness < 10 cm (4''); One concrete wall with thickness < 20 cm (7'')
Interfaces:
• Physical Buttons: WPS Button, Reset Button
• Gigabit RJ45 Ports: 4
• Ethernet Notes: 1× RJ45 port is WAN/LAN configurable, and the rest are LAN ports
• LED: Power, Internet, Wi-Fi, Cellular
• Power Input: DC Jack
Power:
• Power Methods: DC
• DC Input: 12V 2.5A
• Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC, Output: 12V 2.5A DC
Environment:
• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 90% non-condensing
Mechanical:
• Dimension: 253×152.5×48.2 mm
• Weight: 670 g
• Installation: Desktop, Wall-mount
Package Contents:
• P5
• Detachable Antennas
• Power Adapter
• Ethernet Cable
• Installation Guide
• Detachable Antennas
• Power Adapter
• Ethernet Cable
• Installation Guide
