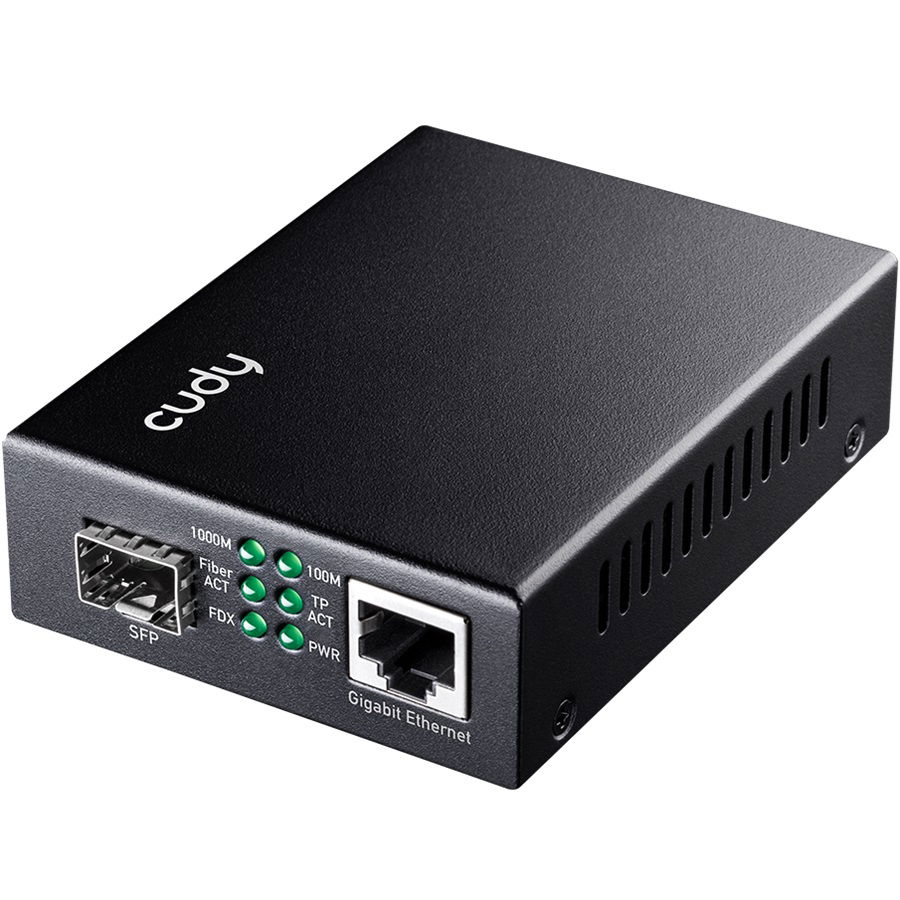

CUDY Gigabit Ethernet Media Converter

10/100/1000 Mbps RJ45 to SFP Slot media converter for long distance transmission demand.

Instant Network Monitoring with Built-in LED Indicators
With built-in LED indicators, you can easily check the working status of the device. The network status is instantly visible, making it simple to monitor and troubleshoot at a glance.

Reliable, High-Speed Transmission with No Speed Loss
The all-in-one module delivers exceptional optical and electrical performance, ensuring long-term data transmission stability.

Plug and Play, No Setup Required
Simply plug in the port, and it’s ready to go—instant connection with no configuration needed. Easy to use, with fast and responsive performance.

Interfaces:

• 1.25G SFP Slots: 1
• SFP Hot Swapping: True
• Gigabit RJ45 Ports: 1

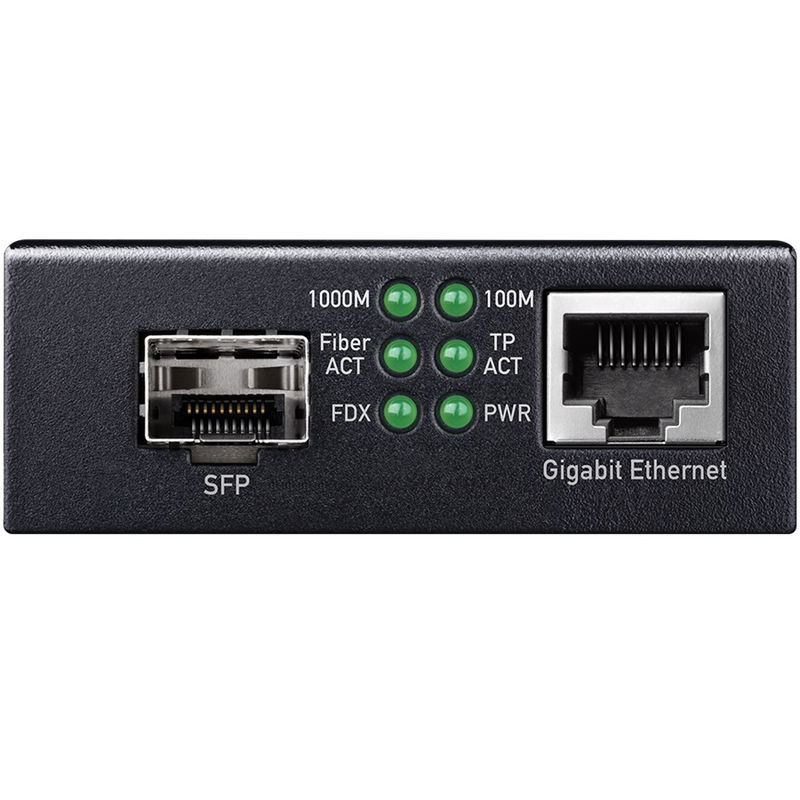

• LED: PWR: Power on/off, 1000M/100M: RJ45 link speed, TP ACT: RJ45 status, Fiber ACT: Fiber slot status, FDX: full-duplex status
• Power Input: DC Jack

Copper Speed and Distance:

• Cat. 3 or higher cable: 100 meters at 10 Mbps
• Cat. 5 or higher cable: 100 meters at 100 Mbps
• Cat. 5e or higher cable: 100 meters at Gigabit

Performance:

• Optical Spec and Distance: Depends on the Installed Optical Module
• Jumbo Frame: 16 KB

Power:

• Power Methods: DC
• DC: 5V⎓0.55A
• Power Adapter: Input: 100-240V~, 50/60Hz, Output: 5V⎓0.55A
• Max Power Consumption: 2.3W (45°C / 113°F Ambient Temp.), 1W (20°C / 68°F Ambient Temp.)
• Idle Power Consumption: 0.5W

802.3 Protocols:

• 802.3i 10BASE-T
• 802.3u 100BASE-T
• 802.3ab 1000BASE-T
• 802.3x Flow Control
• 802.3az Power Saving

Troubleshooting:

• Far End Fault (FEF), Link Fault Pass Through (LFP)

Environment:

• Operating Temperature: 050 ℃ (32122 ℉)
• Storage Temperature: -4070 ℃ (-40158 ℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~95% non-condensing

Mechanical:

• Dimension: 70×94×26 mm
• Weight: 142.0 g
• Casing Material: Metal
• Installation: Desktop, Chassis

• MC220
• Installation Guide
• Power Adapter
