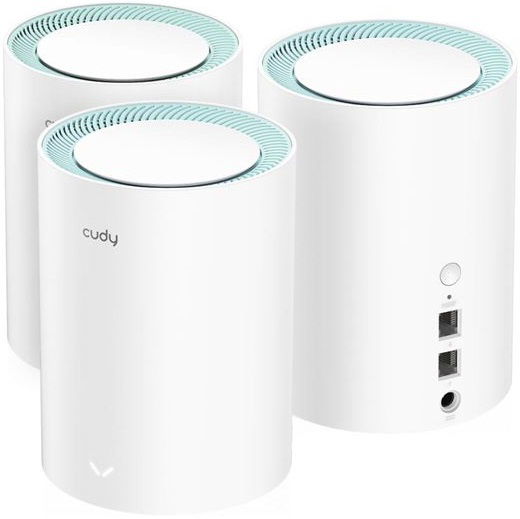

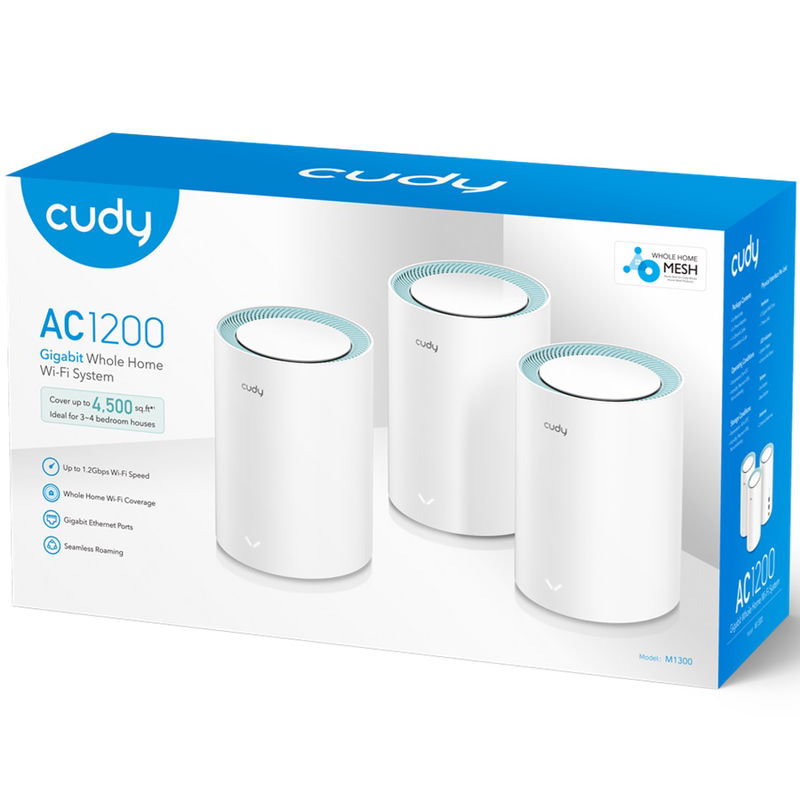

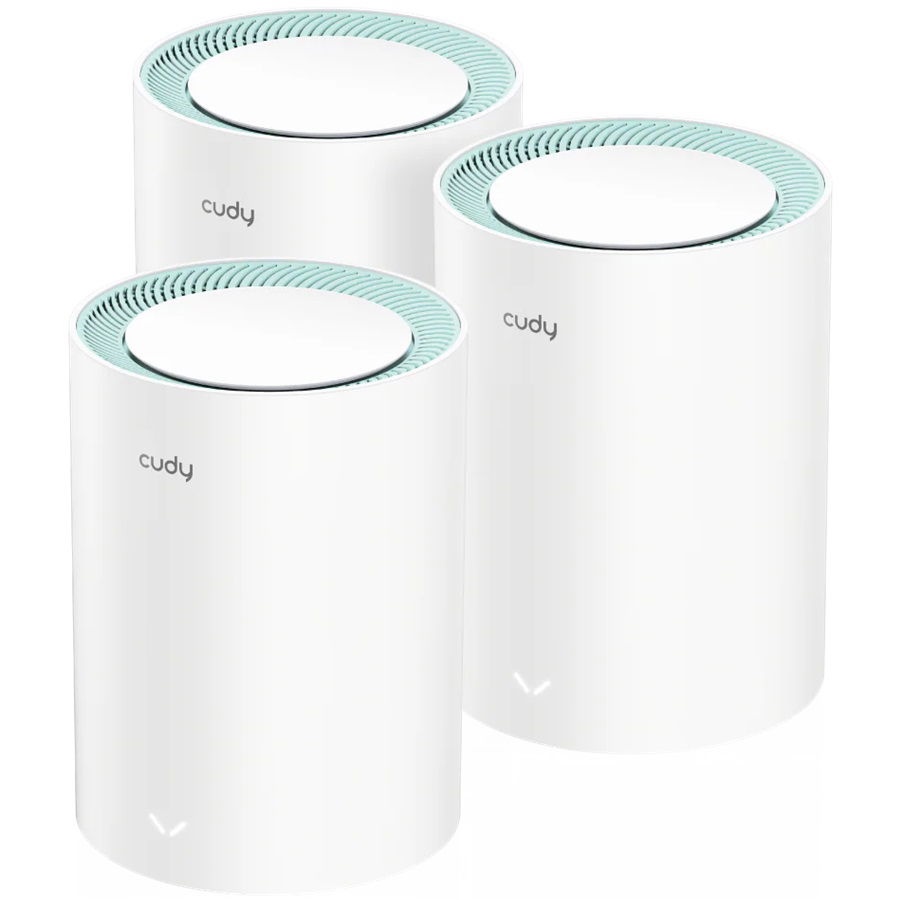

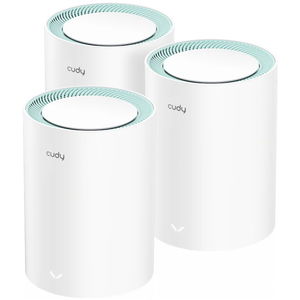

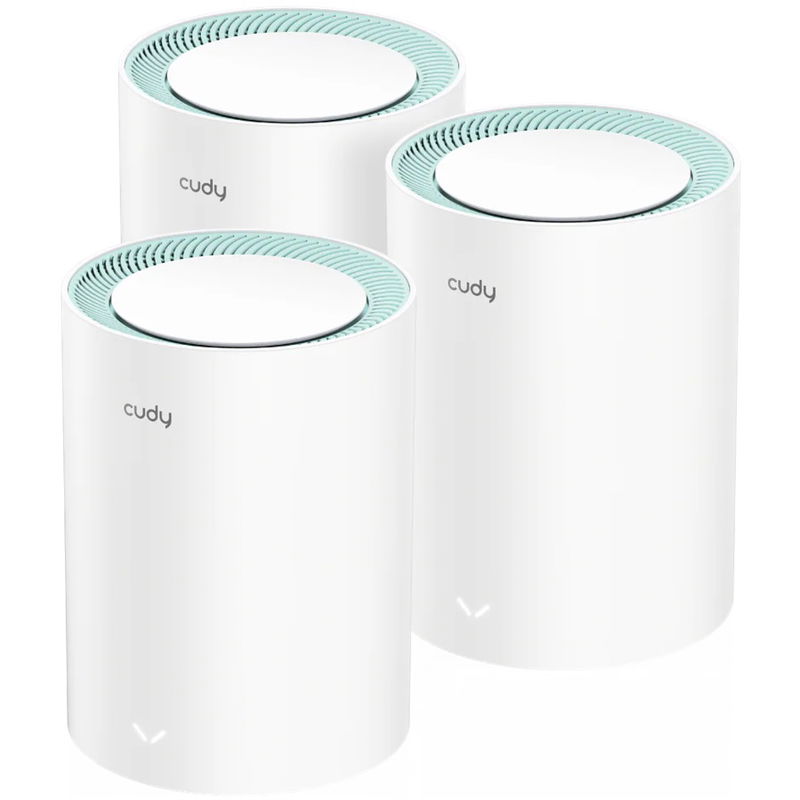

CUDY AC1200 Gigabit Dual Band Mesh Wi-Fi System - 3 Pack

A mesh WiFi system ideal for large homes with 4K streaming and gaming demands, Installation is easy—set up one unit and auto-sync the rest.

Whole Home Mesh, Dead Zone Killer:
With stronger and more efficient signals enhanced by Cudy Whole Home Mesh technology, M1300 boosts broader whole home Wi-Fi coverage with great performance. Wireless connections and optional Ethernet backhaul work together to link mesh units, providing even faster network speeds and truly seamless coverage.

Up to 1.2Gbps Wi-Fi Speed:
Enjoy smooth streaming, downloading, and gaming with extremely fast Wi-Fi Speed.

Powerful Dual-Core Processor:
Powerful Dual-Core CPU ensures smooth 4K UHD streaming to Smart TVs, mobile devices and gaming consoles without buffering.

128 Mbit Flash + 1 Gbit DDR:
128 Mbit flash design makes the router stable and reliable , ensuring the continuous operation of the system, and provides more space for the file system. Built-in 1Gbit DDR makes the product run faster and provides more possibilities for function expansion.

Gigabit Ports:
Featured with 10/100/1000Mbps ports, greatly expands your network capacity, enabling instant large files transfering.

CPU:

• CPU Details: 880 MHz Dual-Core, MIPS1004Kc

Memory/Storage:

• Flash/ROM: 16 MB (128 Mbit) NOR
• DDR/RAM: 128 MB (1 Gbit) DDR3

Wireless:

• 5 GHz Wi-Fi Speed: 867 Mbps
• 2.4 GHz Wi-Fi Speed: 300 Mbps
• 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• Wi-Fi Antennas: 4× Internal
• 5 GHz Antenna Gain Max: 6.04 dBi
• 2.4 GHz Antenna Gain Max: 4.22 dBi
• FEM or PA/LNA: 5 GHz: 2× Internal, 2.4 GHz: 2× Internal
• Beamforming: True
• Range Performance: Max: 170 m (558 ft)
• Wall Performance: Two wooden walls with thickness < 10 cm (4''), One concrete wall with thickness < 20 cm (7'')
• Indoor Coverage Reference: 2 Pack: 160 m² (1700 sq ft), 3 Pack: 220 m² (2400 sq ft)

Interfaces:

• Gigabit RJ45 Ports: 2
• Ethernet Notes: Port 1 is the WAN port by default. All ports are LAN ports in Mesh satellite mode
• LED: System, Speed/Link/ACT of Ethernet Port
• Physical Buttons: WPS Button, Reset Button
• Power Input: DC Jack

Power:

• Power Methods: DC
• DC Input: 12V 1A
• Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC, Output: 12V 1A DC

Environment:

• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing

Mechanical:

• Installation: Desktop
• Dimension: Φ110×154.5 mm
• Weight: 298 g

• 3x M1300
• Power Adapter
• Ethernet Cable
• Installation Guide
