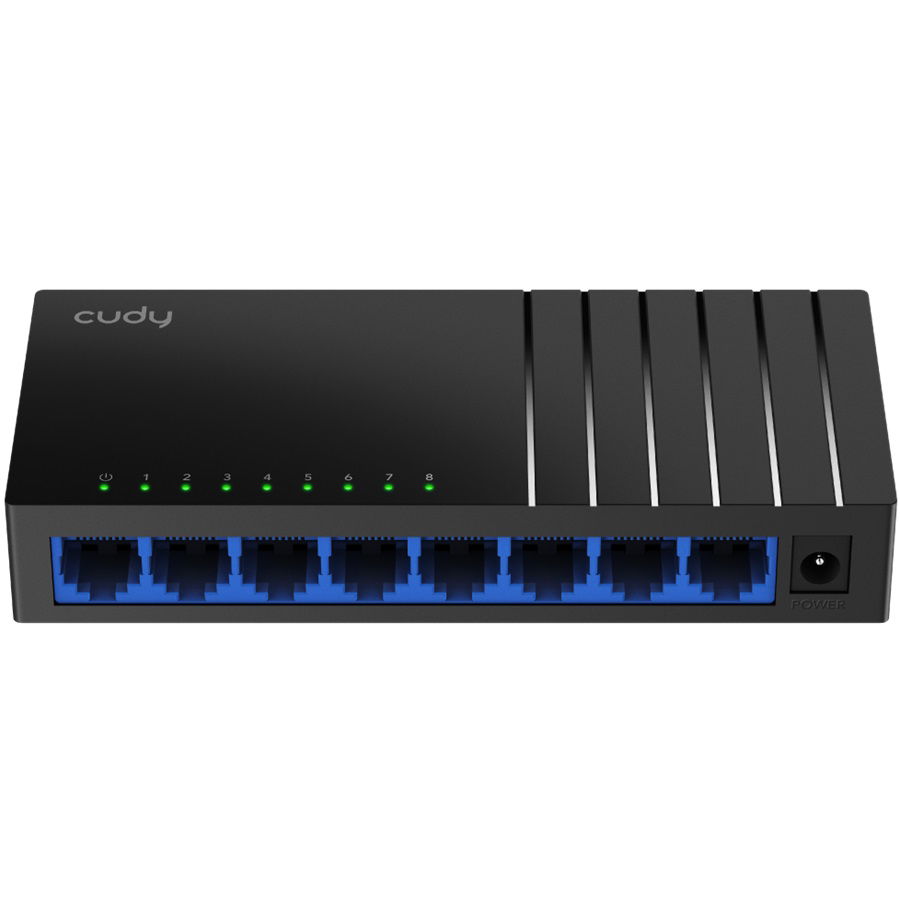

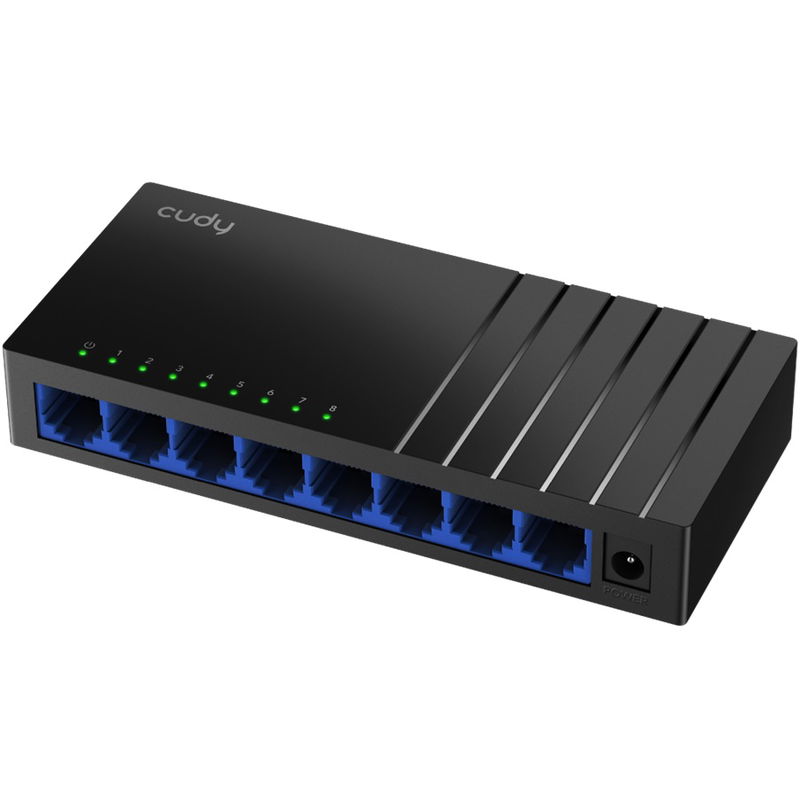

CUDY GS108D 8-Port Gigabit Unmanaged Switch

Compact enough to fit in most home network distribution boxes. The wave line and blue ports cast a modern aesthetic.

• Complies with IEEE802.3i/u/x/ab/az standards
• 8× 10/100/1000Mbps Ethernet Ports
• Saves power when ports or connections are inactive
• Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
• Max 170 m of transmitting distance, 70% longer than standard
• Packet buffer prevents packet loss and improves performance
• Supports wall-mounting to save spaces

• Standards Protocol: IEEE 802.3, 802.3i/u/x/ab
• Ethernet: 8× 10/100/1000 Mbps Ports (Auto-Negotiation, Auto-MDI/MDIX)
• Network Media: 10Base-T : Cat 3, 4, 5 or above UTP (≤170 m), 100Base-TX : Cat 5 or above UTP (≤170 m), 1000Base-TX : Cat 5 or above UTP (≤170 m)
• Transfer Method: Store-and-Forward
• MAC Address Table: 8K
• Switching Capacity: 16 Gbps
• Packet Forwarding Rate: 11.9 Mbps
• Packet Buffer: 4 Mbit
• Jumbo Frame: 15K Byte
• LED Indicators: PWR: On: power on, Off: no power
• LED Indicators: Link: On: 10/100/1000M link connection is normal, Blinking: Data transmission is normal, Off: link failure
• Dimension: 138×61.5×24 mm
• Weight: 89 g
• Input Voltage: DC 5V / 0.55 A
• Operating Temperature: 0℃~40℃
• Storage Temperature: -40℃~70℃
• Operating Humidity: 10%~90% non-condensing
• Storage humidity: 5%~95% non-condensing

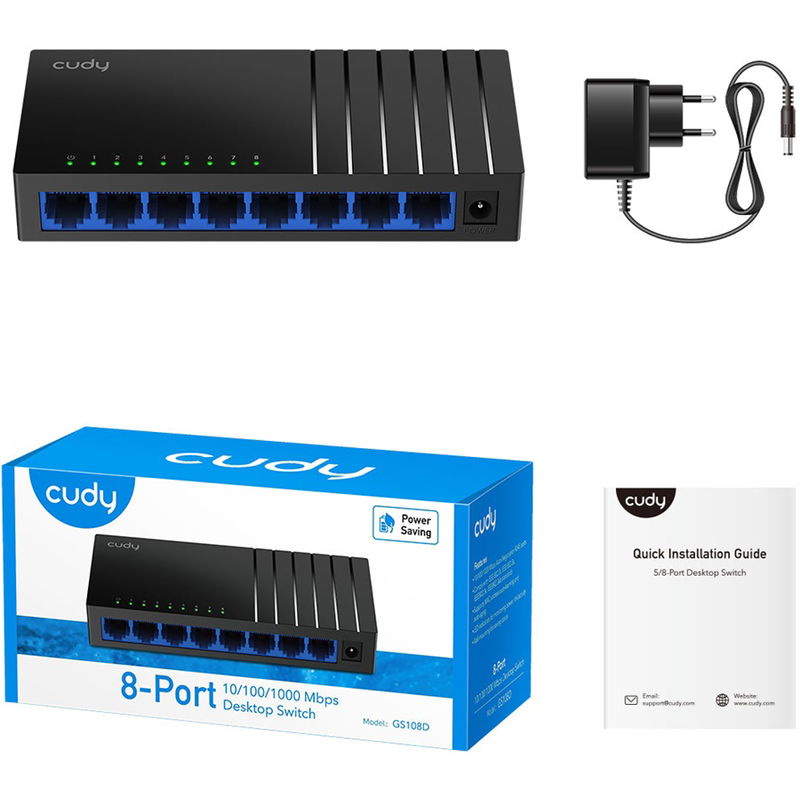

• GS108D
• Power Adapter
• Installation Guide
